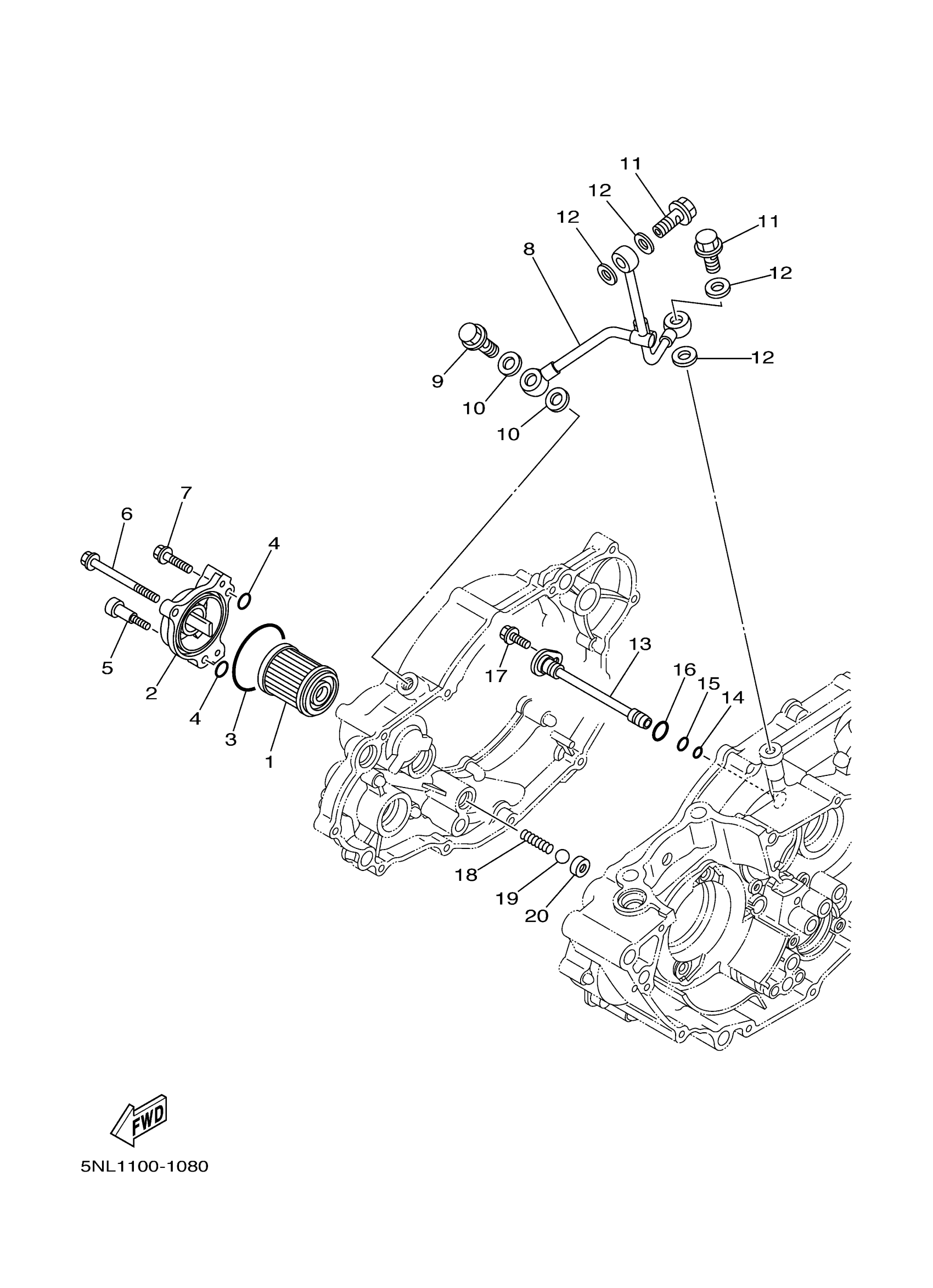

Yamaha WR250FR (WR250F) 5UM1 2003 OIL CLEANER Diagram

#

Description
Price

1

ELEMENT ASSY, OIL CLEANER

5D3-13440-09-00

$12.99

2

COVER, OIL ELEMENT

5BE-13447-10-00

$82.99

3

O-RING(52H)

93210-47675-00

$6.99

4

O-RING (583 OIL DRAIN BOLT)

93210-07135-00

$6.99

5

BOLT

90109-065G2-00

$3.23

6

BOLT, SMALL FLANGE

95027-06065-00

$3.28

7

BOLT, SMALL FLANGE

95027-06025-00

$4.16

8

PIPE, DELIVERY 1

5NL-13161-21-00

$136.99

9

BOLT, UNION(3GM)

90401-10159-00

$11.49

10

GASKET

90430-10188-00

$6.99

11

BOLT, UNION

90401-08006-00

$5.60

12

GASKET

90430-08119-00

$6.62

13

PIPE, DELIVERY 2

5NL-13171-00-00

$98.99

14

O-RING (11M)

93210-07540-00

$7.49

15

O-RING (137)

93210-09008-00

$10.49

16

O-RING(M01)

93210-12759-00

Unavailable

17

BOLT, FLANGE(4MY)

95027-06012-00

Unavailable

18

SPRING, COMPRESSION(1VJ)

90501-043E0-00

Unavailable

19

BALL

93503-08007-00

Unavailable

20

SEAT, CHECK BALL

583-13113-00-00

Unavailable
