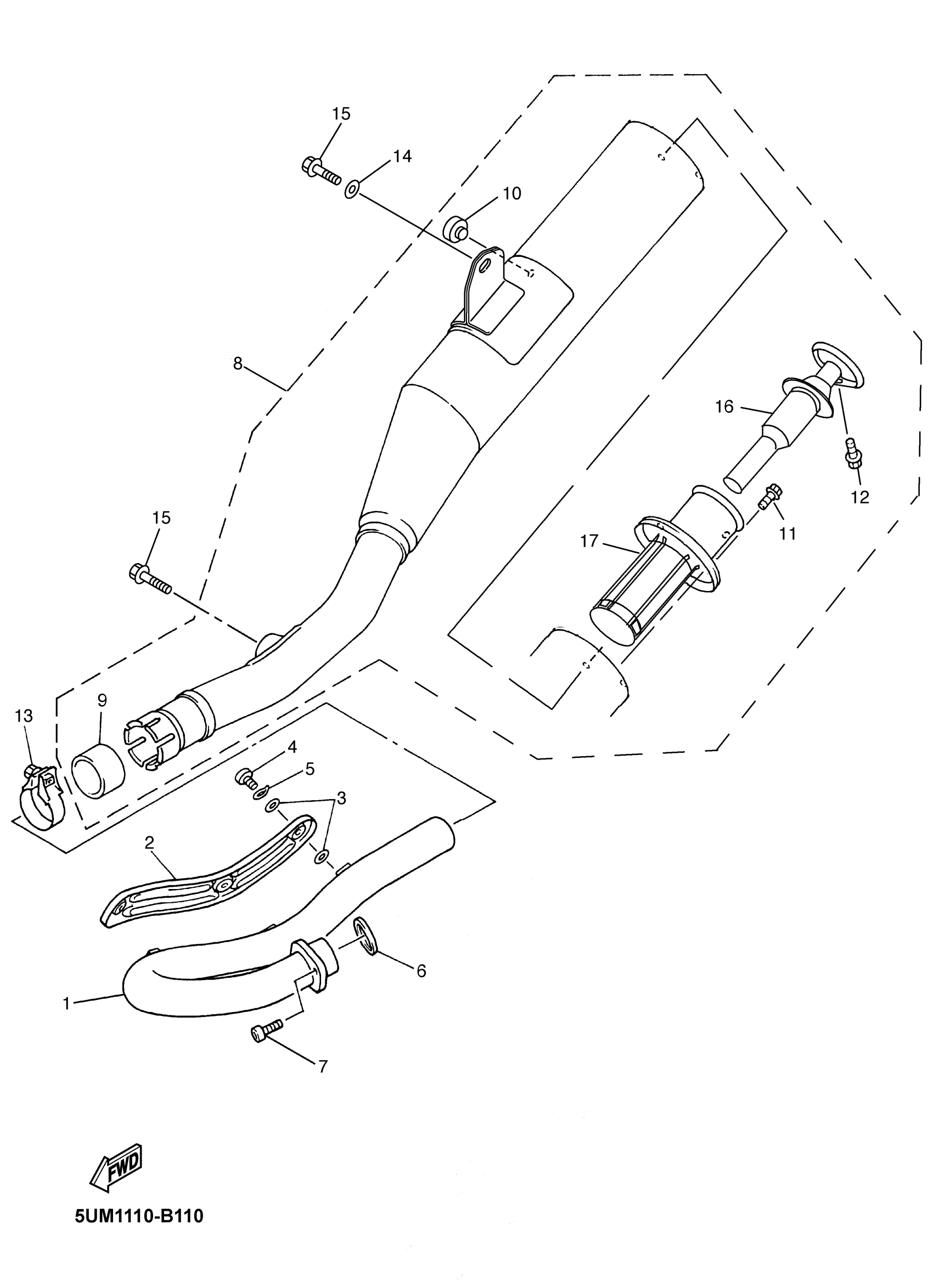

Yamaha WR250FR (WR250F) 5UM1 2003 EXHAUST Diagram

PIPE, EXHAUST 1

5UM-14611-00-00

Unavailable

PROTECTOR, EXHAUST PIPE

5XC-14628-00-00

$92.99

WASHER, PROTECTOR

4BD-14766-00-00

$5.49

SCREW, BIND(2TV)

98980-06008-00

$3.19

WASHER, WAVE(3RW)

90206-06090-00

$8.49

GASKET, EXHAUST PIPE

5NL-14613-00-00

$14.49

BOLT, SOCKET

91317-08020-00

$8.49

MUFFLER ASSY 1

5UM-14710-00-00

Unavailable

GASKET, MUFFLER

5PH-14714-00-00

$43.99

DAMPER, LOCATING 1

2MC-F4181-00-00

$7.99

BOLT, FLANGE(7HT)

95880-06010-00

$2.75

BOLT, FLANGE

95814-06016-00

Unavailable

BAND, SILENCER

5BE-14788-00-00

$35.99

WASHER, PLATE(3XP)

90201-086P8-00

$4.77

BOLT, FLANGE(8AB)

95817-08020-00

$9.49

. PIPE

5BF-14752-00-00

Unavailable

. ARRESTOR, SPARK

5BF-14786-00-00

Unavailable
