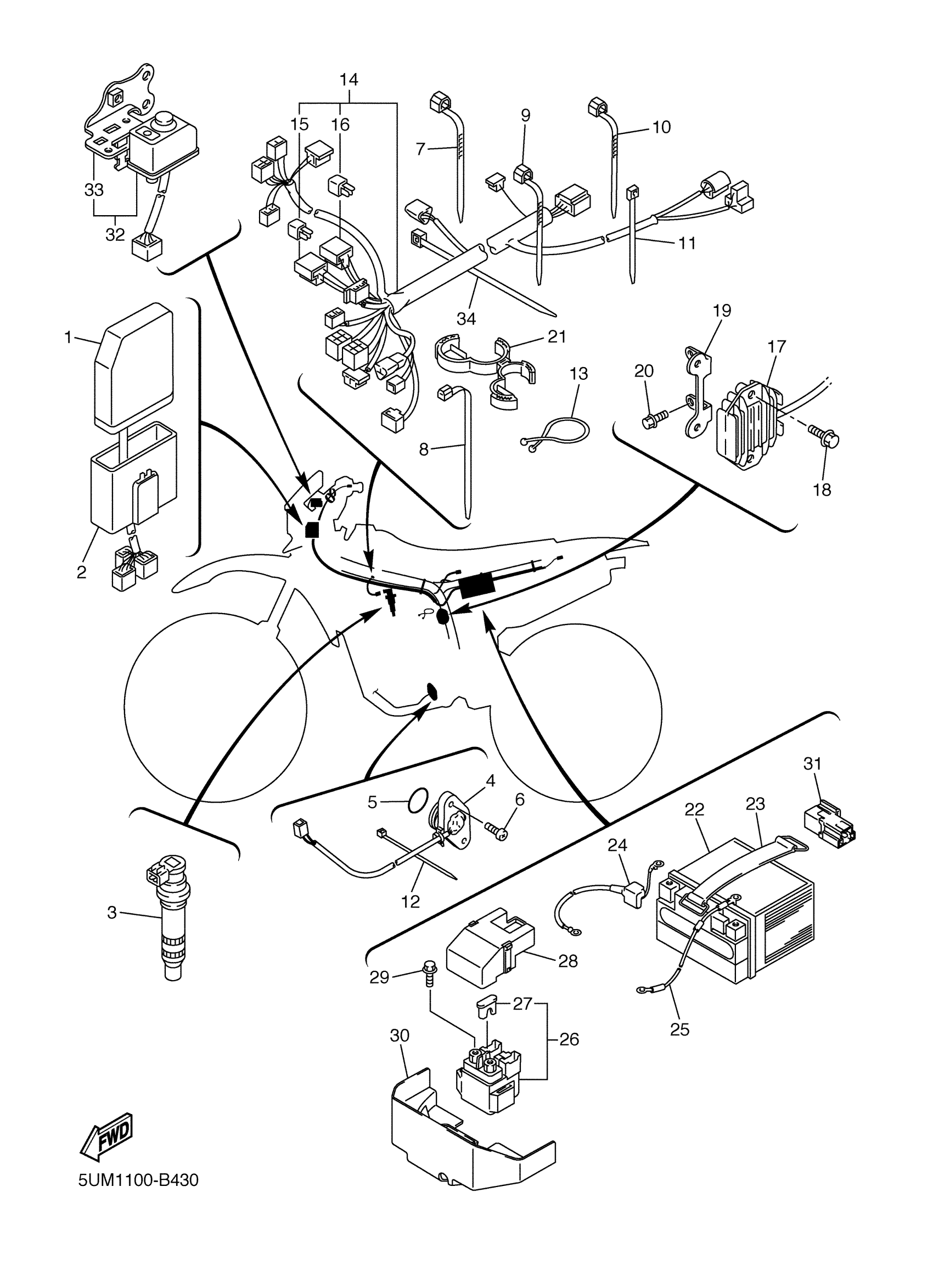

Yamaha WR250FR (WR250F) 5UM1 2003 ELECTRICAL 1 Diagram

#

Description
Price

1

C.D.I. UNIT ASSY

5UM-85540-00-00

Unavailable

2

BAND

5TJ-85546-00-00

$15.49

3

IGNITION COIL ASSY

5UL-82310-10-00

$171.99

4

NEUTRAL SWITCH ASSY

5TJ-82540-02-00

$74.99

5

O-RING

93210-21001-00

$5.60

6

SCREW, BINDING

98907-05016-00

$8.49

7

CLAMP

90464-13077-00

$8.49

8

CLAMP(MF1)

90464-15152-00

$5.60

9

CLAMP(4FM)

90464-15195-00

$4.41

10

CLAMP(4FM)

90464-15195-00

$4.41

11

BAND

1UA-82591-00-00

$4.78

12

CLAMP

5Y9-12491-00-00

$6.99

13

CLAMP

90464-25267-00

$7.49

14

WIRE HARNESS ASSY

5TJ-82590-10-00

Unavailable

15

DIODE ASSY

5TJ-81980-00-00

$25.99

16

DIODE ASSY

4WA-81980-00-00

Unavailable

17

RECTIFIER & REGULATOR ASSY

5TJ-81960-02-00

Unavailable

18

. BOLT, FLANGE

95027-06020-00

Unavailable

19

BRACKET, REGULATOR

5TJ-2128A-01-00

Unavailable

20

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

21

CLAMP(MG5)

90464-29223-00

Unavailable

22

YTX5LBS YUASA BATTERY - SA

YTX-5LBS0-00-00

Unavailable

23

BAND, BATTERY

8CY-82131-00-00

Unavailable

24

WIRE, PLUS LEAD

5TJ-82115-00-00

Unavailable

25

WIRE, MINUS LEAD

5UM-82116-00-00

Unavailable

26

STARTER RELAY ASSY (RC19-042)

5TJ-81940-12-00

Unavailable

27

FUSE (10A)

42X-82151-00-00

Unavailable

28

COVER, LEAD WIRE

5SL-82119-10-00

Unavailable

29

BOLT, SMALL FLANGE

95027-06008-00

Unavailable

30

HOLDER, RELAY

5TJ-81952-00-00

Unavailable

31

RELAY ASSY (8DM-00)

8DM-81950-00-00

Unavailable

32

MAIN SWITCH ASSY

5TJ-82510-00-00

Unavailable

33

. STAY, MAIN SWITCH

5TJ-82514-00-00

Unavailable

34

CLAMP

90464-76001-00

Unavailable
