2002 Yamaha WR250F (WR250FP) Taillight Diagram

← All diagrams

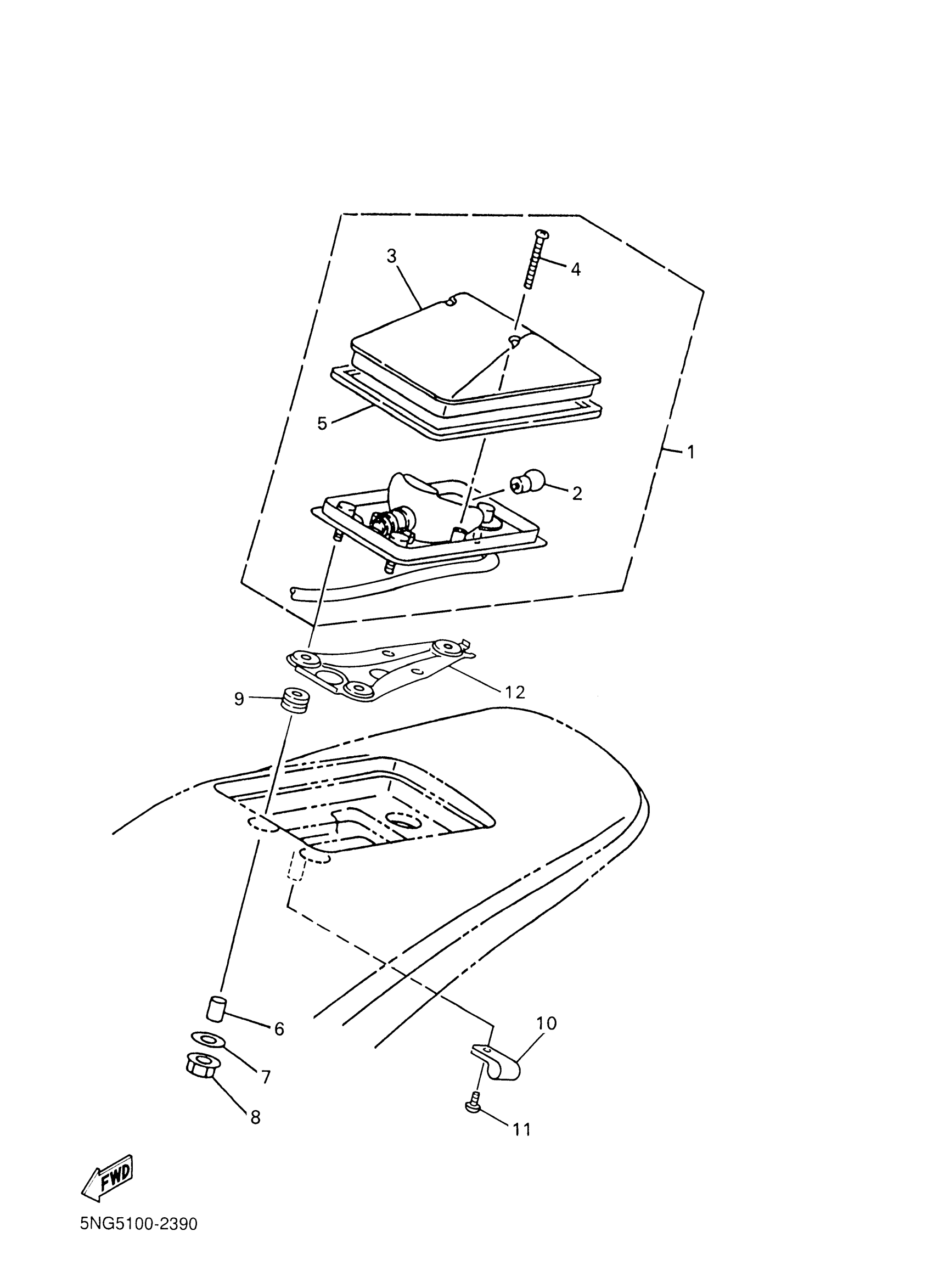

Find the part on the Taillight diagram for your 2002 Yamaha WR250F (WR250FP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Yamaha WR250F (WR250FP) Taillight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TAILLIGHT UNIT ASSY

5BF-84710-00-00

1
Out of stock

2

BULB

1A2-84714-50-00

1

$12.17

In stock

3

LENS, TAILLIGHT

4GY-84733-00-00

1
Out of stock

4

SCREW, TAPPING(3AH)

97707-40630-00

1

$6.68

In stock

5

GASKET, TAIL LENS

4GY-84723-00-00

1
Out of stock

6

COLLAR

90387-06144-00

1

$5.28

In stock

7

WASHER, PLATE 8221447500

90201-06057-00

1
Out of stock

8

NUT, FLANGE(4MV)

95707-06500-00

1

$0.78

In stock

9

GROMMET 839774310000

90480-14023-00

1

$4.74

In stock

10

CLAMP(74L)

90461-11099-00

1

$1.95

In stock

11

. SCREW, TAPPING

97780-40010-00

1
Out of stock

12

PLATE,FITTING 3

5NG-21677-50-00

—
Out of stock
