2002 Yamaha WR250F (WR250FP) Starter Diagram

← All diagrams

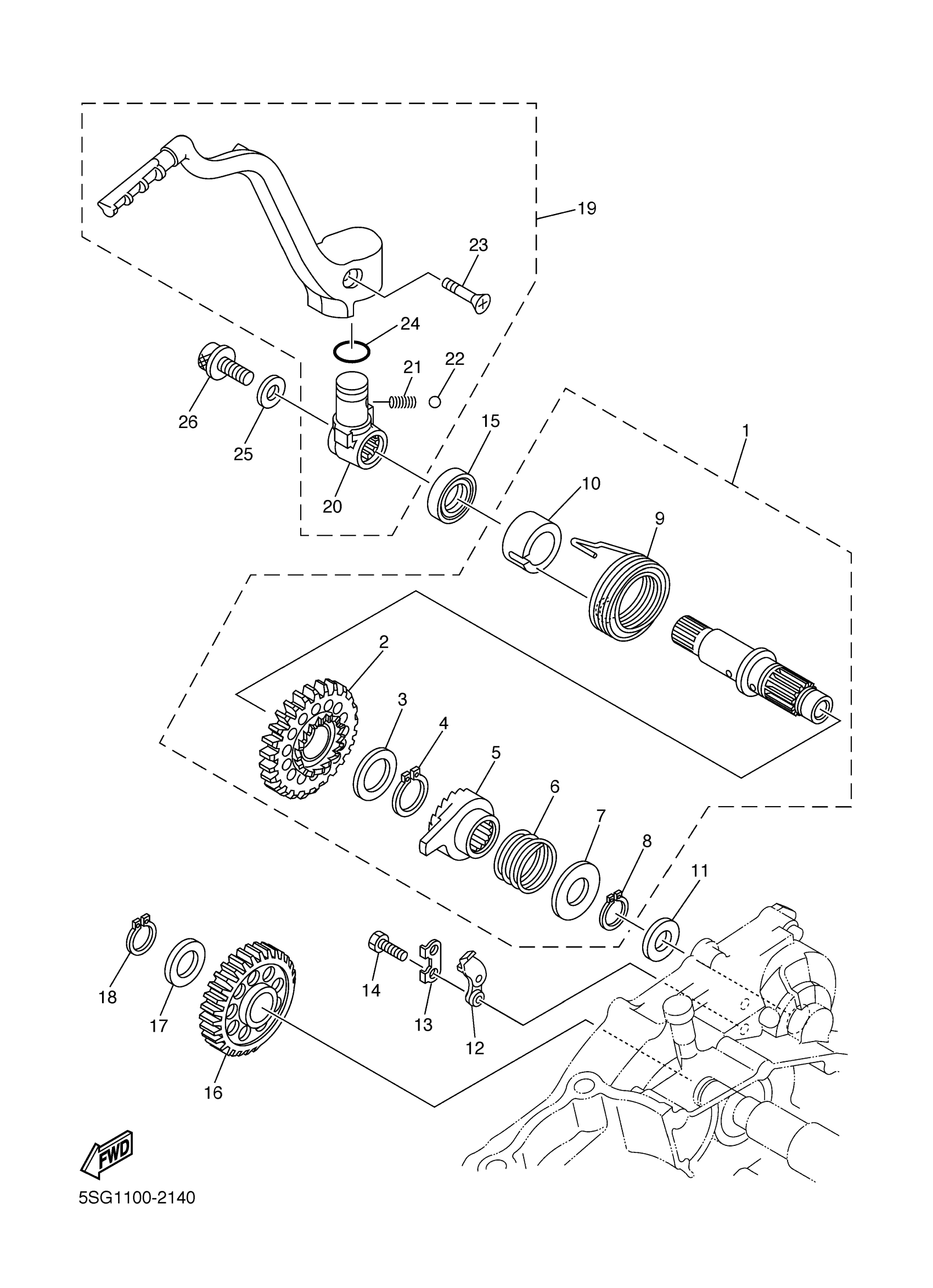

Find the part on the Starter diagram for your 2002 Yamaha WR250F (WR250FP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Yamaha WR250F (WR250FP) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK SHAFT ASSY

5NL-15601-00-00

1
Out of stock

2

GEAR, KICK

5NL-15641-10-00

—
Out of stock

3

WASHER, PLATE (2K7)

90201-20685-00

1

$5.69

In stock

4

CIRCLIP (525)

93410-20038-00

1

$2.62

In stock

5

WHEEL, RATCHET

4GY-15671-00-00

1

$84.20

In stock

6

SPRING, COMPRESSION

90501-16016-00

1

$4.60

In stock

7

WASHER, PLATE(4GL)

90201-167P7-00

1

$8.12

In stock

8

CIRCLIP(13T)

99009-16400-00

1

$5.35

In stock

9

SPRING, TORSION(2VM)

90508-30743-00

1

$16.62

In stock

10

GUIDE, SPRING

5NL-15664-00-00

1

$11.83

In stock

11

WASHER, PLATE (25H)

90201-162H4-00

1

$7.92

In stock

12

STOPPER

5SG-15668-00-00

—
Out of stock

13

WASHER, LOCK

214-15686-00-00

1

$6.38

In stock

14

BOLT, HEXAGON

97017-06016-00

1

$6.18

In stock

15

OIL SEAL (22U)

93102-18278-00

1

$10.43

In stock

16

GEAR, KICK IDLE

5NL-15651-00-00

—
Out of stock

17

WASHER, PLATE (30X)

90201-177G4-00

—
Out of stock

18

CIRCLIP(1EY)

99009-17400-00

—
Out of stock

19

KICK CRANK ASSY

5NL-15620-10-00

—
Out of stock

20

BOSS, KICK CRANK

5NX-15621-01-00

—

$56.02

In stock

21

SPRING COMPRESSION278156220000

90501-12081-00

—
Out of stock

22

BALL (12R)

93507-32031-00

—
Out of stock

23

SCREW, COUNTERSUNK (5Y1)

90152-06010-00

—
Out of stock

24

O-RING(36Y)

93210-17570-00

—

$5.86

In stock

25

WASHER (853)

90201-08326-00

—

$6.17

In stock

26

BOLT(2KF)

90109-085E2-00

—

$5.98

In stock
