2002 Yamaha WR250F (WR250FP) Shift Shaft Diagram

← All diagrams

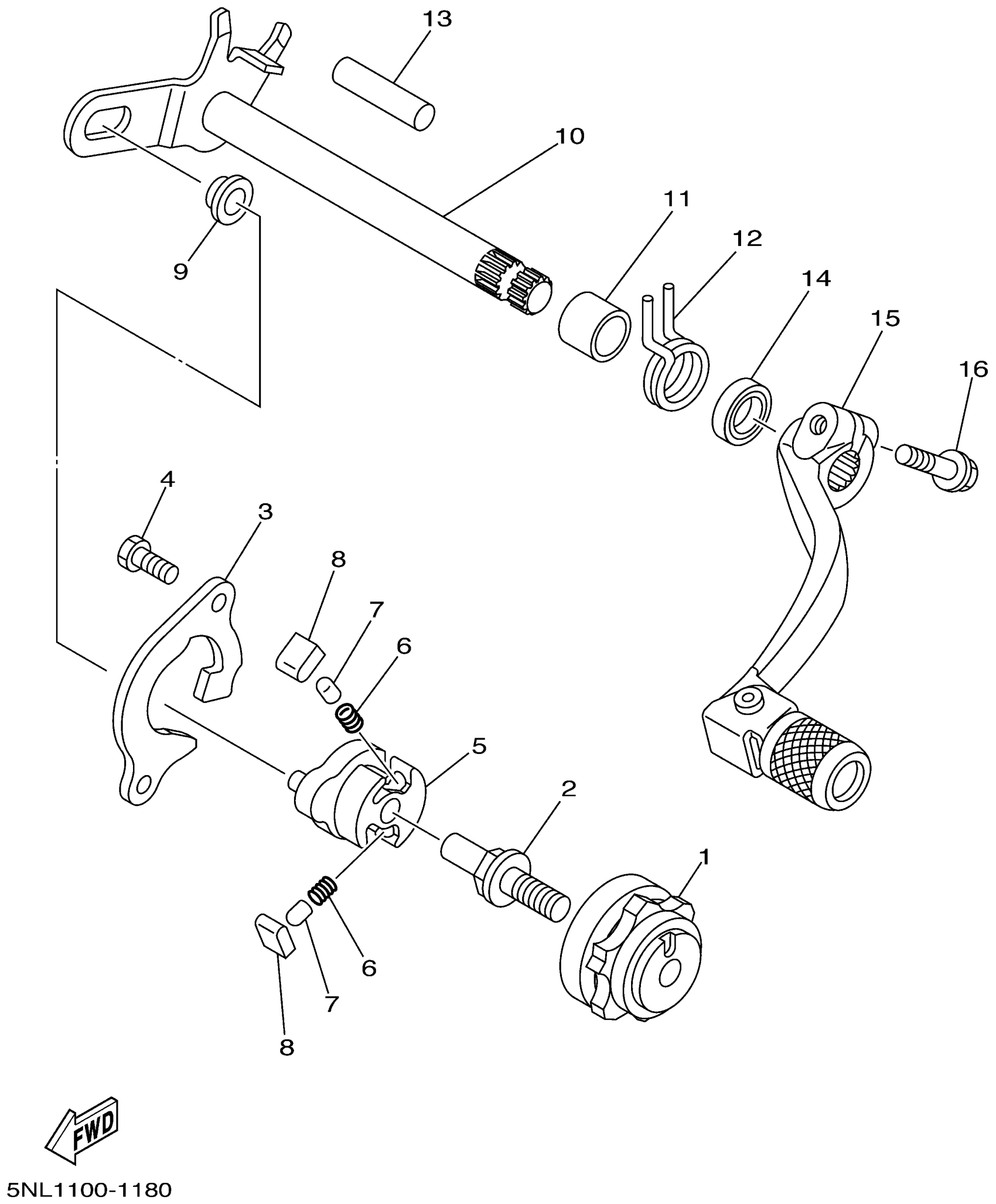

Find the part on the Shift Shaft diagram for your 2002 Yamaha WR250F (WR250FP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2002 Yamaha WR250F (WR250FP) Shift Shaft Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

SEGMENT

4EW-18185-00-00

1
Out of stock

2

PIN, SHIFT

3XJ-18173-10-00

1
Out of stock

3

GUIDE, SHIFT

5BE-18172-00-00

1

$21.37

In stock

4

BOLT

90101-06664-00

1
Out of stock

5

LEVER, SHIFT 2

5LP-18122-01-00

1
Out of stock

6

SPRING, COMPRESSION(3XJ)

90501-052G5-00

1
Out of stock

7

PIN, PAWL

3XJ-18184-00-00

1
Out of stock

8

PAWL, SHIFTER

3XJ-18182-00-00

1
Out of stock

9

ROLLER, SHIFT LEVER

3XJ-18178-00-00

1
Out of stock

10

SHIFT SHAFT ASSY

5UL-18101-00-00

1
Out of stock

11

COLLAR

90387-12033-00

1

$6.51

In stock

12

SPRING, TORSION(4DA)

90508-291A8-00

1

$8.17

In stock

13

PIN, DOWEL

93608-33002-00

1

$11.91

In stock

14

OIL SEAL (4G0)

93102-12224-00

1
Out of stock

15

SHIFT PEDAL ASSY

5UL-18110-00-00

—
Out of stock

16

. BOLT, FLANGE

95027-06020-00

1

$1.00

In stock
