2002 Yamaha WR250F (WR250FP) Shift CAM Fork Diagram

← All diagrams

Find the part on the Shift CAM Fork diagram for your 2002 Yamaha WR250F (WR250FP), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

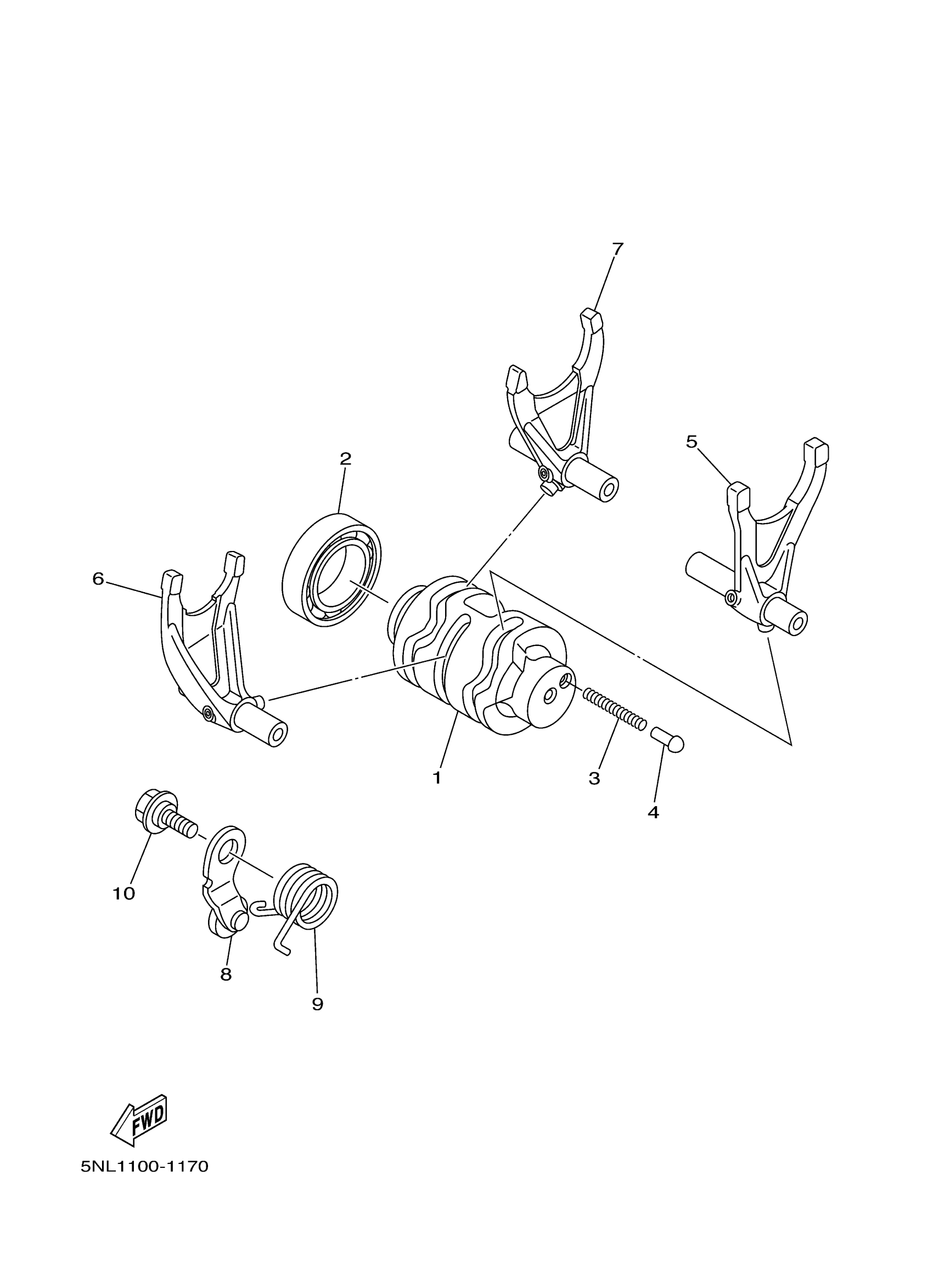

2002 Yamaha WR250F (WR250FP) Shift CAM Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CAM, SHIFT

5NL-18541-00-00

1
Out of stock

2

BEARING (5K5)

93306-90501-00

1
Out of stock

3

1

$6.17

In stock

4

POINT, NEUTRAL

4BA-18542-00-00

1

$10.29

In stock

5

FORK, SHIFT 1

5NL-18501-00-00

1
Out of stock

6

FORK, SHIFT 2

5NL-18502-00-00

1
Out of stock

7

FORK, SHIFT 3

5NL-18503-00-00

1
Out of stock

8

STOPPER LEVER ASSY

3XK-18140-00-00

1

$19.68

In stock

9

SPRING, TORSION (17W)

90508-26561-00

1

$8.28

In stock

10

BOLT

90109-06036-00

1
Out of stock
