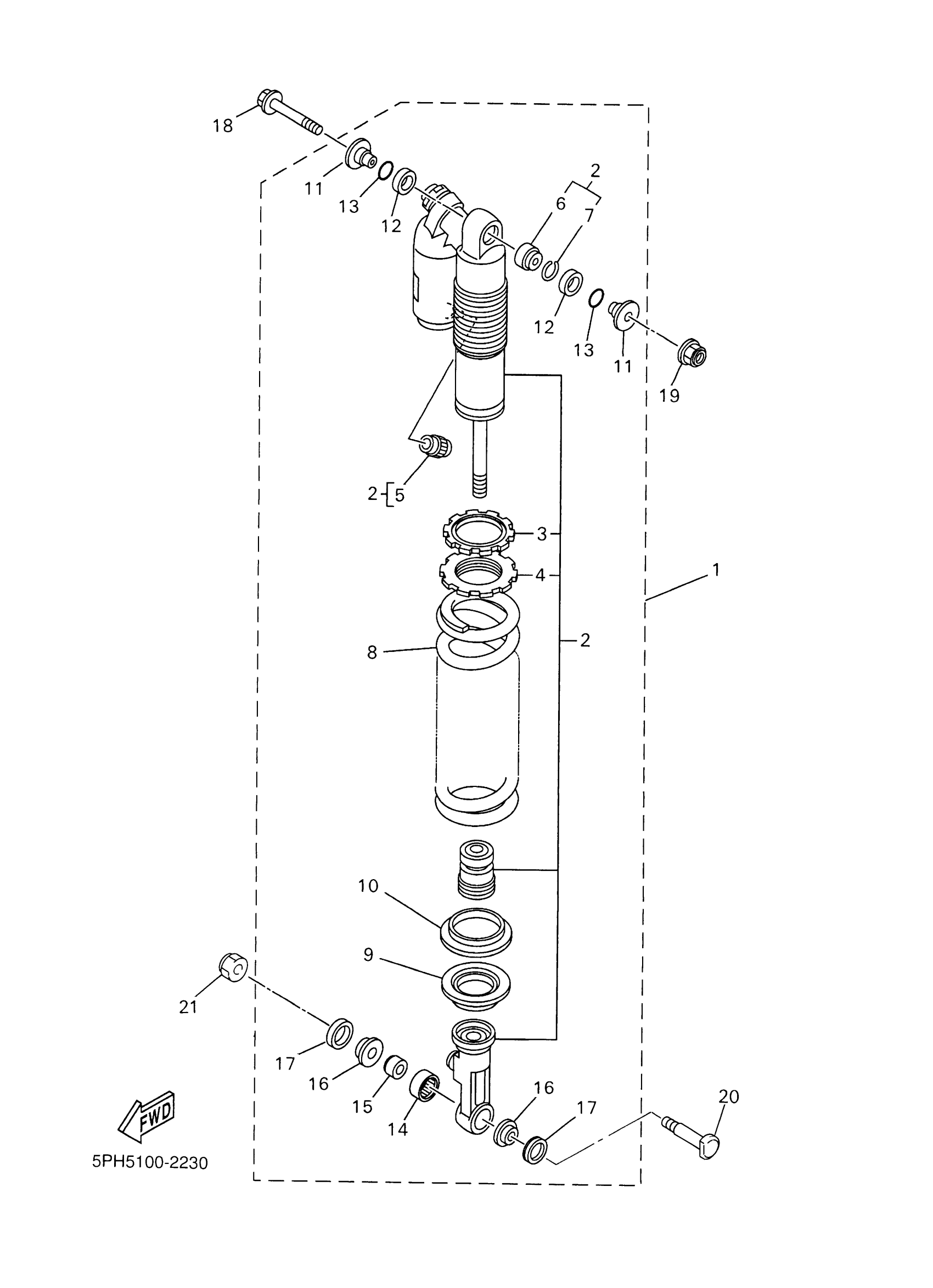

Yamaha WR250FP (WR250F) 5PH5 2002 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY, REAR

5PH-22210-50-00

Unavailable

2

. DAMPER SUB ASSY

5PH-22201-50-00

Unavailable

3

GUIDE, SPRING 3

3SP-22234-00-00

$43.99

4

SEAT, SPRING UPPER

3SP-22213-00-00

$46.99

5

CAP, AIR VALVE

509-23184-L0-00

$6.99

6

BUSH, SHOCK ABSORBER LOWER

4JX-22226-00-00

$51.99

7

CIRCLIP

5DH-23183-00-00

$5.49

8

SPRING (K=5.0)

5NG-22212-60-00

Unavailable

9

. GUIDE, SPRING 1

5DH-22214-00-00

Unavailable

10

GUIDE, SPRING 2

5MV-22224-00-00

$24.99

11

. COLLAR, DISTANCE

5DH-22253-00-00

Unavailable

12

SEAL, DUST

3JE-22475-00-00

$13.49

13

SEAL, RING

4EW-22474-00-00

$6.99

14

BEARING

5MV-22176-00-00

$39.99

15

BUSH

5MV-22184-00-00

$25.99

16

COLLAR, DISTANCE

5MV-22253-00-00

Unavailable

17

SEAL, DUST

5NY-22475-00-00

Unavailable

18

B0LT,FLANGE (1KT)

90105-10323-00

Unavailable

19

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

20

BOLT 1

5NY-22241-00-00

Unavailable

21

NUT, SELFLOCKING (533 FRAME)

90185-10060-00

Unavailable
