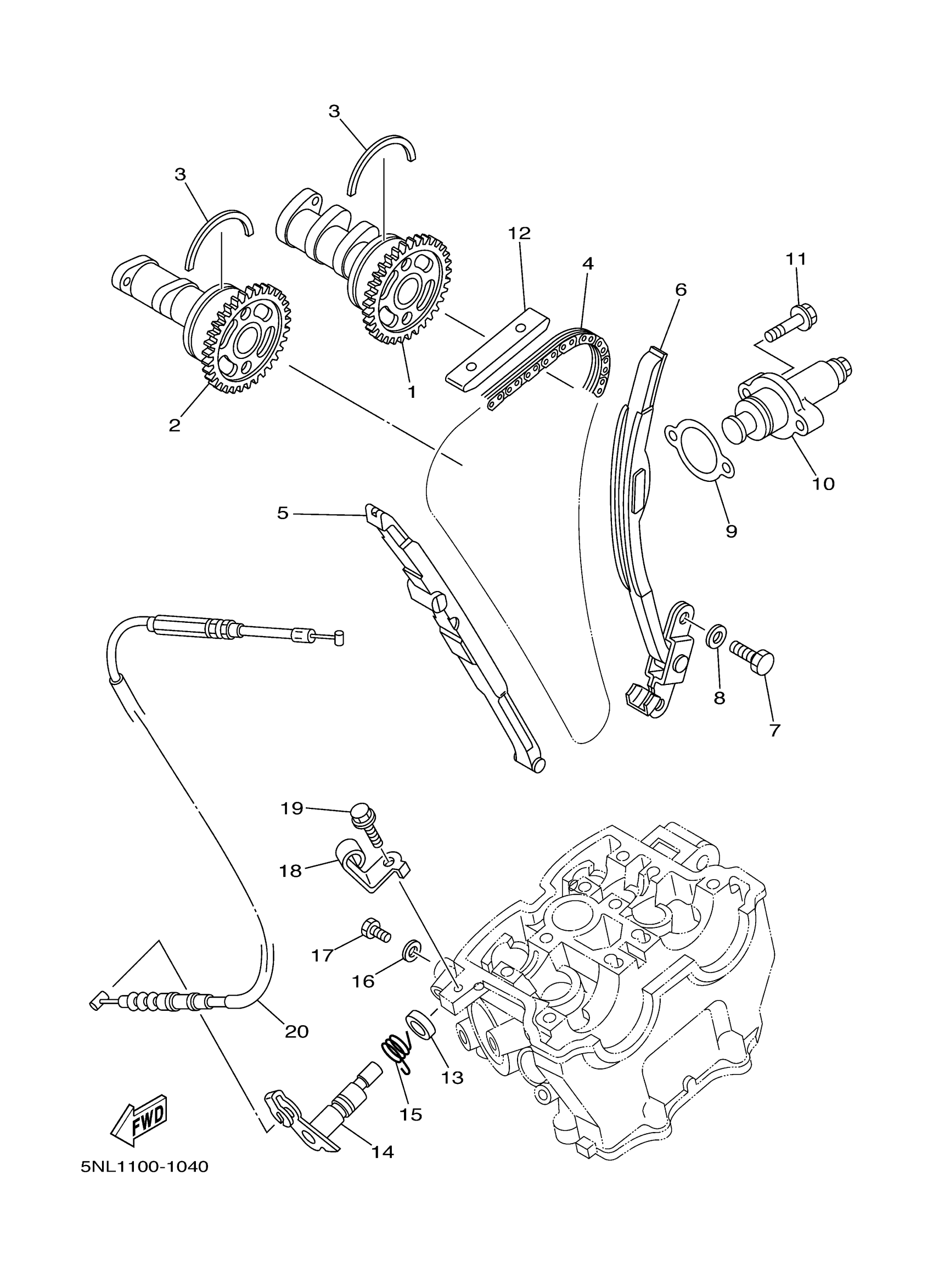

Yamaha WR250FP (WR250F) 5PH5 2002 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

5UL-12170-10-00

Unavailable

2

CAMSHAFT ASSY 2

5PH-12180-00-00

Unavailable

3

CIRCLIP

93440-41178-00

$3.98

4

CHAIN

94591-53114-00

$33.99

5

DAMPER, CHAIN 1

5NL-12251-11-00

$36.99

6

DAMPER, CHAIN 2

5NL-12252-01-00

$83.99

7

BOLT, HEXAGON

97017-06016-00

$8.49

8

WASHER(6TA)

92907-06600-00

$2.72

9

GASKET, TENSIONER CASE

4FM-12213-00-00

$8.99

10

TENSIONER ASSY, CAM CHAIN

5BE-12210-00-00

$131.99

11

BOLT, SMALL FLANGE

95027-06025-00

$4.16

12

GUIDE, STOPPER 2

5BE-12241-01-00

$29.99

13

OIL SEAL (4G0)

93102-12224-00

$10.49

14

DECOMPRESSION ASSY

5BE-12280-10-00

Unavailable

15

SPRING, TORSION

90508-162B2-00

$3.50

16

GASKET 256113960000

90430-06014-00

Unavailable

17

BOLT (583 TACHOMETER)

90109-06418-00

Unavailable

18

. BRACKET, DECOMPRESSION

5NL-12283-00-00

Unavailable

19

BOLT, FLANGE

95817-06014-00

Unavailable

20

CABLE, DECOMPRESSION

5BE-12292-10-00

Unavailable
