2001 Yamaha WR250F (WR250FN) Starter Diagram

← All diagrams

Find the part on the Starter diagram for your 2001 Yamaha WR250F (WR250FN), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

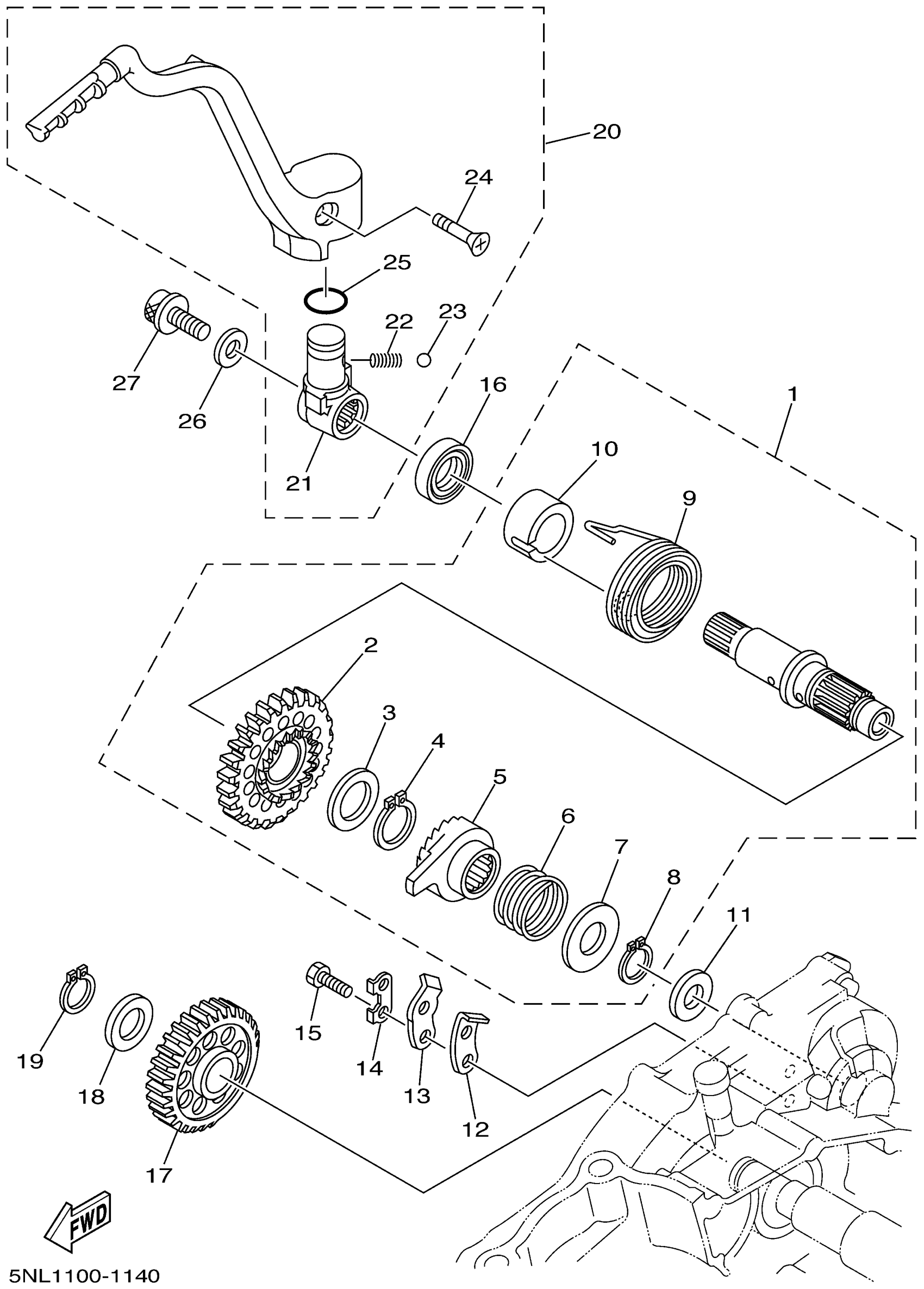

2001 Yamaha WR250F (WR250FN) Starter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

KICK SHAFT ASSY

5NL-15601-00-00

1
Out of stock

2

GEAR, KICK

5NL-15641-10-00

—
Out of stock

3

WASHER, PLATE (2K7)

90201-20685-00

1
Out of stock

4

CIRCLIP (525)

93410-20038-00

1
Out of stock

5

WHEEL, RATCHET

4GY-15671-00-00

1
Out of stock

6

SPRING COMPRESSION168156750000

90501-16107-00

—
Out of stock

7

WASHER, PLATE(4GL)

90201-167P7-00

1
Out of stock

8

CIRCLIP(13T)

99009-16400-00

1
Out of stock

9

SPRING, TORSION(2VM)

90508-30743-00

1
Out of stock

10

GUIDE, SPRING

5NL-15664-00-00

1
Out of stock

11

WASHER, PLATE (25H)

90201-162H4-00

1
Out of stock

12

STOPPER

2NX-15668-00-00

1
Out of stock

13

GUIDE, RATCHET WHEEL

2NX-15674-00-00

1
Out of stock

14

WASHER, LOCK

214-15686-00-00

1
Out of stock

15

BOLT, HEXAGON

97017-06016-00

1
Out of stock

16

OIL SEAL (22U)

93102-18278-00

—
Out of stock

17

GEAR, KICK IDLE

5NL-15651-00-00

—
Out of stock

18

WASHER, PLATE (30X)

90201-177G4-00

—
Out of stock

19

CIRCLIP(1EY)

99009-17400-00

—
Out of stock

20

KICK CRANK ASSY

5NL-15620-10-00

—
Out of stock

21

BOSS, KICK CRANK

5NX-15621-01-00

—
Out of stock

22

SPRING COMPRESSION278156220000

90501-12081-00

—
Out of stock

23

BALL (12R)

93507-32031-00

—
Out of stock

24

SCREW, COUNTERSUNK (5Y1)

90152-06010-00

—
Out of stock

25

O-RING(36Y)

93210-17570-00

—
Out of stock

26

WASHER (853)

90201-08326-00

—
Out of stock

27

BOLT(2KF)

90109-085E2-00

—
Out of stock
