2001 Yamaha WR250F (WR250FN) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 2001 Yamaha WR250F (WR250FN), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

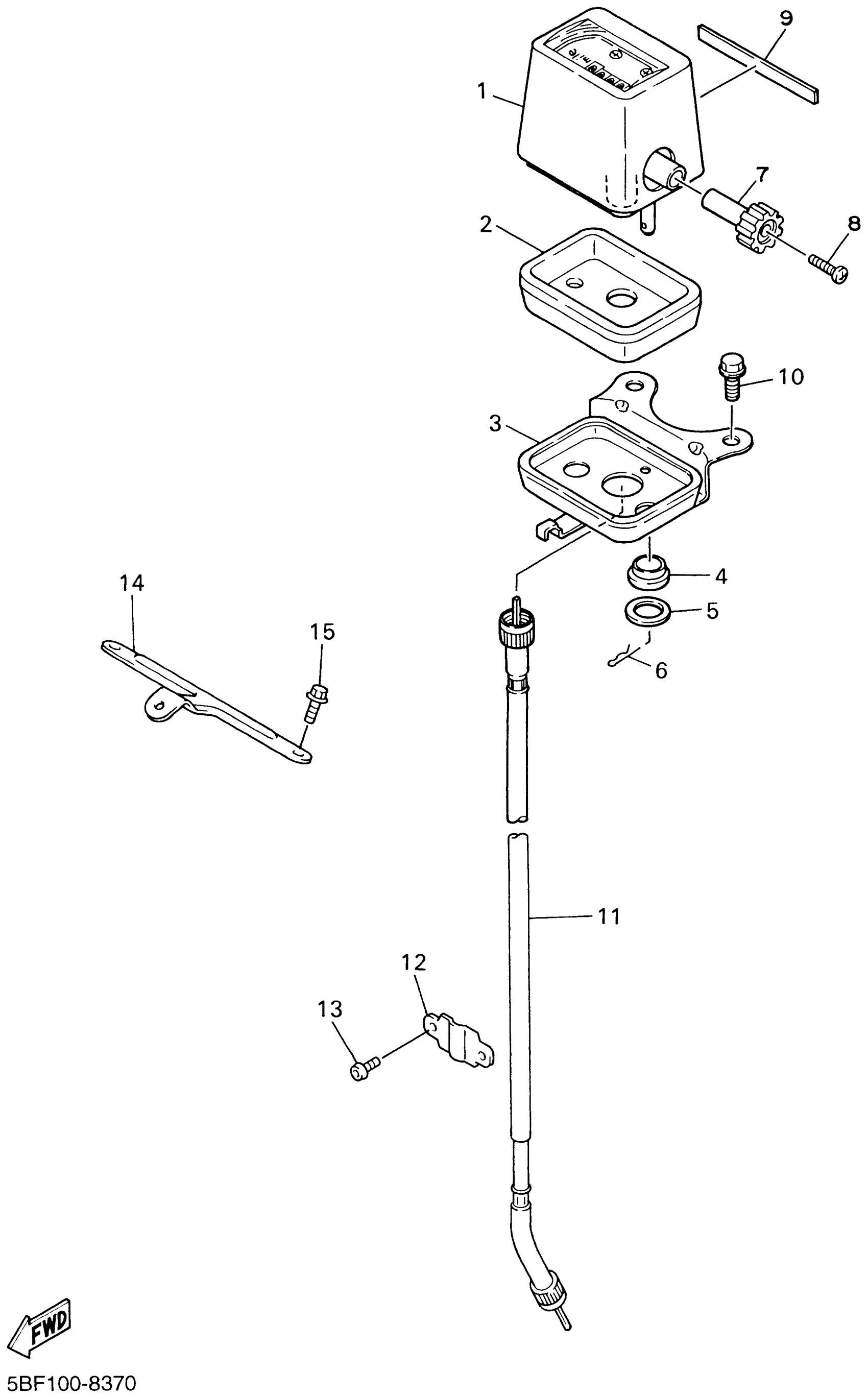

2001 Yamaha WR250F (WR250FN) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TRIP METER COMP.

2HR-83505-G0-00

1
Out of stock

2

DAMPER

4V5-83513-00-00

1
Out of stock

3

BRACKET, METER

5NG-83519-00-00

1
Out of stock

4

DAMPER 2

1M1-83526-01-00

1

$3.78

In stock

5

WASHER PLATE 829771780000

90201-05033-00

1
Out of stock

6

CLIP (156-83525-00)

90468-10050-00

1

$2.31

In stock

7

KNOB, TRIP METER

11H-83578-00-00

1
Out of stock

8

SCREW, PAN HEAD (11H)

90157-02031-00

1

$7.05

In stock

9

DAMPER

2HR-83592-00-00

1
Out of stock

10

BOLT, FLANGE(4MY)

95027-06010-00

1
Out of stock

11

SPEEDOMETER CABLE ASSY

5BF-83550-00-00

—
Out of stock

12

STAY 3

5BF-2317M-00-00

1
Out of stock

13

BOLT, BUTTON HEAD

92017-05008-00

—
Out of stock

14

STAY, HEADLIGHT 2

5BF-84319-00-00

1
Out of stock

15

BOLT, FLANGE(4MY)

95027-06010-00

1
Out of stock
