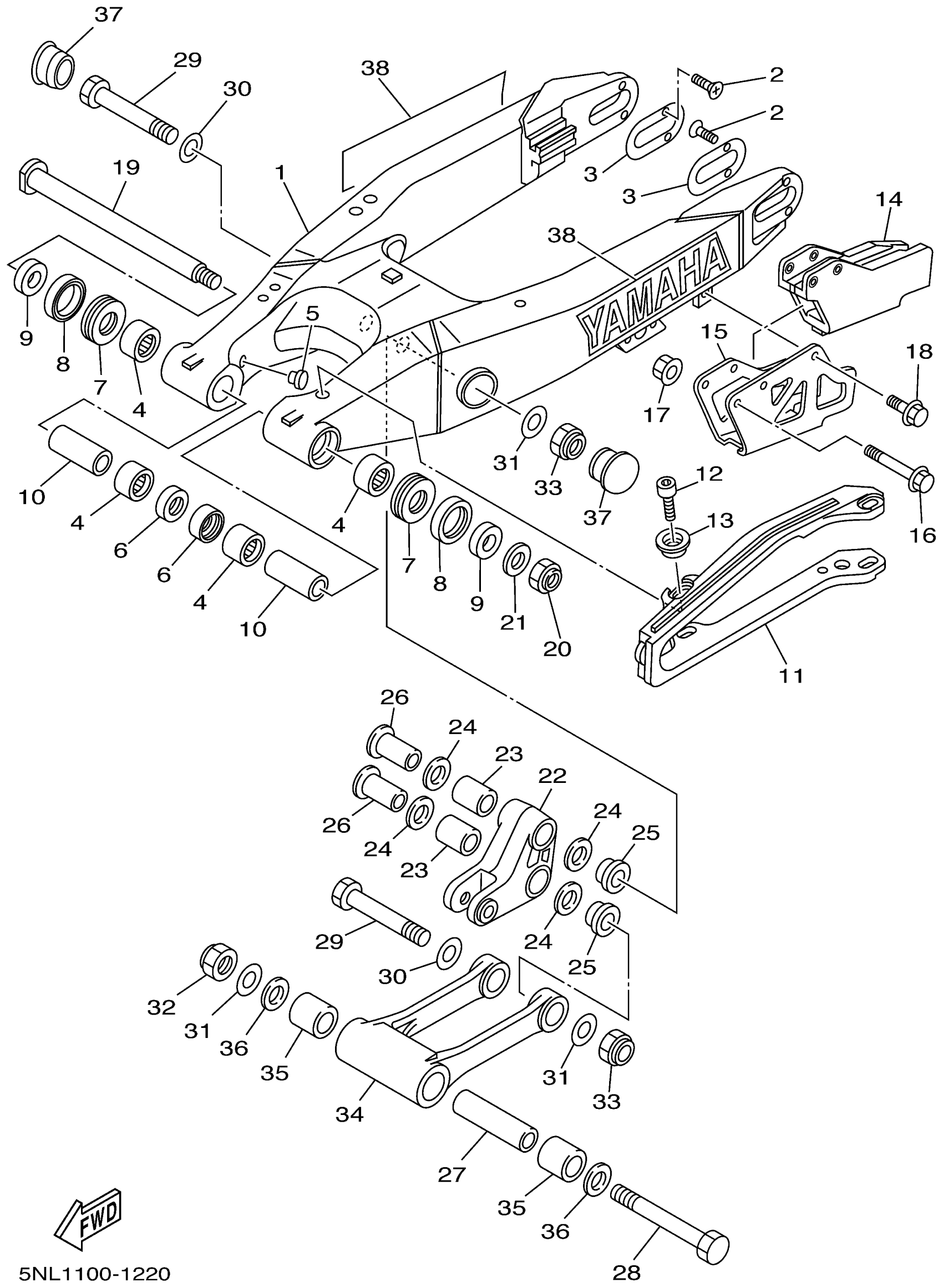

Yamaha WR250FN (WR250F) 5PH1 2001 REAR ARM Diagram

#

Description
Price

1

REAR ARM COMP.

5MV-22110-00-00

Unavailable

2

SCREW, FLAT

98707-04010-00

$8.49

3

PATCH

5ET-22355-00-00

Unavailable

4

BEARING, CYLINDRICAL(2VM)

93317-22262-00

$38.99

5

PLUG(55K)

90338-16148-00

$11.49

6

OIL SEAL (23X)

93106-22019-00

$11.49

7

BEARING

93342-22217-00

$41.99

8

OIL SEAL (36F)

93109-28043-00

$11.49

9

COLLAR

90387-1714R-00

Unavailable

10

COLLAR

90387-1714S-00

$43.99

11

SEAL, GUARD

5MV-22151-00-00

$85.99

12

BOLT, SOCKET

91317-05008-00

$2.55

13

WASHER, PLATE

5JG-22156-00-00

$8.99

14

SUPPORT, CHAIN

4XM-22199-00-00

$99.99

15

COVER, THRUST 1

4XM-22128-00-00

Unavailable

16

BOLT, SMALL FLANGE

95027-06050-00

Unavailable

17

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

18

BOLT, FLANGE(4MY)

95027-06010-00

Unavailable

19

SHAFT, PIVOT

5DH-22141-00-00

Unavailable

20

NUT, SELF-LOCKING

90185-16002-00

Unavailable

21

WASHER, PLATE(33Y)

90201-164H4-00

Unavailable

22

ARM, RELAY

5ET-2217A-00-00

Unavailable

23

BEARING, CYLINDRICAL(4BF)

93315-32056-00

Unavailable

24

OIL SEAL

93109-20076-00

Unavailable

25

COLLAR

90387-16005-00

Unavailable

26

COLLAR

90387-16007-00

Unavailable

27

COLLAR

90387-167Y9-00

Unavailable

28

BOLT

90109-147F2-00

Unavailable

29

BOLT

90109-142F4-00

Unavailable

30

WASHER, PLATE(33Y)

90201-164H4-00

Unavailable

31

WASHER PLATE (3L6)

90201-14740-00

Unavailable

32

NUT, SELF-LOCKING

90185-14112-00

Unavailable

33

NUT, U(4JT)

95617-14100-00

Unavailable

34

ROD, CONNECTING 1

5DH-2217F-01-00

Unavailable

35

BEARING, CYLINDRICAL(4BF)

93315-32056-00

Unavailable

36

OIL SEAL

93109-20076-00

Unavailable

37

COVER

5HD-2135F-00-00

Unavailable

38

EMBLEM, YAMAHA

99244-00200-00

Unavailable
