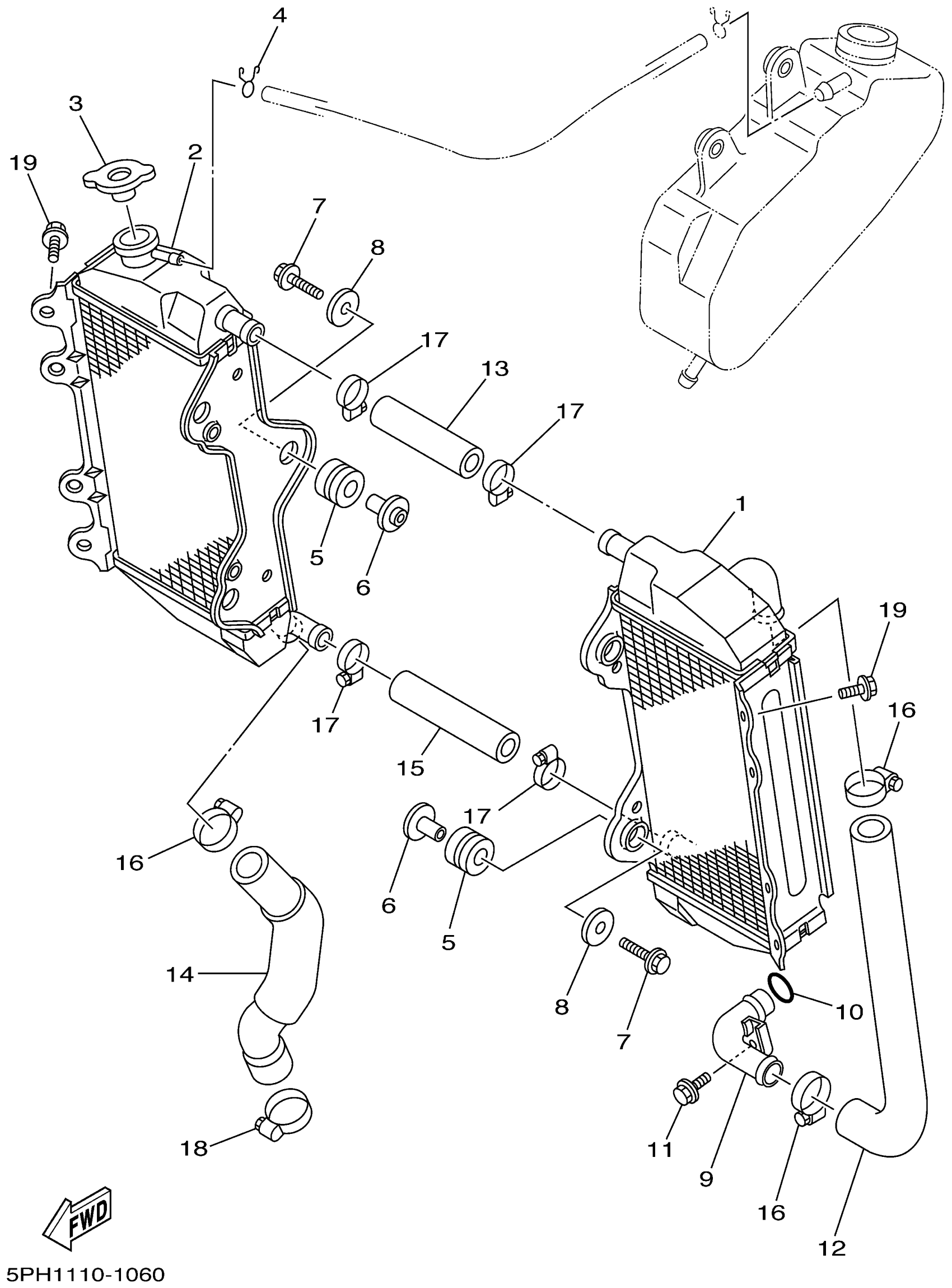

Yamaha WR250FN (WR250F) 5PH1 2001 RADIATOR HOSE Diagram

#

Description
Price

1

RADIATOR ASSY

5PH-1240A-00-00

Unavailable

2

RADIATOR ASSY

5PH-12461-00-00

Unavailable

3

CAP, RADIATOR

4FL-12462-00-00

$62.99

4

CLIP

90467-090A2-00

$4.41

5

GROMMET(3RB)

90480-15528-00

$8.49

6

COLLAR

90387-06004-00

Unavailable

7

BOLT, SMALL FLANGE

95027-06030-00

$3.98

8

WASHER, PLATE(36Y)

90201-063J2-00

$5.60

9

PIPE 1

5NL-12481-10-00

Unavailable

10

O-RING (22U)

93210-15566-00

$7.49

11

BOLT, FLANGE(4MY)

95027-06012-00

$3.88

12

HOSE 1

5NL-12576-00-00

Unavailable

13

HOSE 2

5PH-12577-00-00

Unavailable

14

HOSE 3

5NL-12578-00-00

Unavailable

15

HOSE 4

5NL-12579-00-00

Unavailable

16

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

17

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

18

HOSE CLAMP ASSY

90450-32015-00

Unavailable

19

BOLT, FLANGE

95817-06010-00

Unavailable
