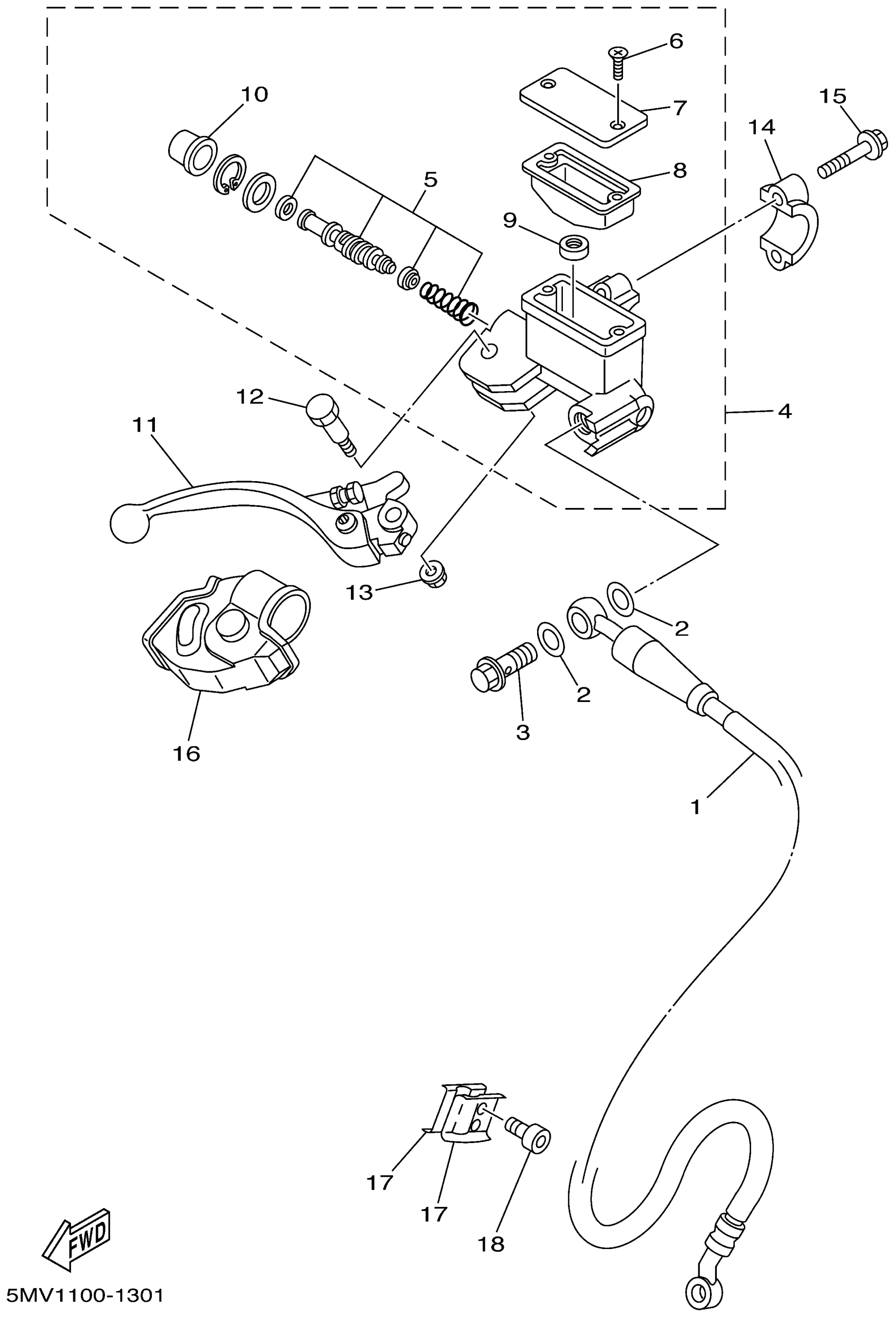

Yamaha WR250FN (WR250F) 5PH1 2001 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

HOSE, BRAKE 1

5TJ-25872-00-00

Unavailable

2

WASHER, PLATE(481)

90201-10118-00

Unavailable

3

BOLT, UNION

90401-10172-00

$5.60

4

MASTER CYLINDER SUB ASSY

5MV-W2587-01-00

Unavailable

5

CYLINDER KIT, MASTER

5MV-W0041-01-00

Unavailable

6

SCREW, FLAT

98707-04012-00

$2.18

7

CAP, RESERVOIR

5MV-25852-01-00

$13.49

8

DIAPHRAGM, RESERVOIR

56A-25854-00-00

$38.99

9

. SEPARATOR ASSY

8CR-25715-00-00

Unavailable

10

BOOT, MASTER CYLINDER

5G2-25868-00-00

Unavailable

11

LEVER 2

5MV-83922-00-00

$51.99

12

BOLT, LEVER

5MV-2589F-00-00

$6.99

13

NUT, FLANGE(7NB)

95780-06500-00

$2.60

14

BRACKET, MASTER CYLINDER

5MV-25867-00-00

$20.99

15

BOLT, FITTING

5MV-25833-00-00

$6.99

16

COVER, HANDLE LEVER 1

5MV-26372-00-00

Unavailable

17

CLAMP(26A)

90465-16258-00

Unavailable

18

BOLT,SOCKET

91317-06014-00

Unavailable
