Description

Price

1

C.D.I. UNIT ASSY

5PH-85540-00-00

Unavailable

2

BAND

5NL-85546-00-00

Unavailable

3

IGNITION COIL ASSY

4MX-82310-02-00

Unavailable

4

BOLT,SOCKET

91317-06016-00

$1.25

5

PLUG CAP ASSY

5BE-82370-00-00

Unavailable

6

NEUTRAL SWITCH ASSY

5BE-82540-03-00

$70.99

7

O-RING

93210-21001-00

$5.60

8

SCREW, BINDING

90154-05046-00

$2.29

9

CLAMP

90464-16061-00

$8.49

10

CLAMP(4FM)

90464-15195-00

$4.41

11

CLAMP

90464-13077-00

$8.49

12

CLAMP(MF1)

90464-15152-00

$5.60

13

CLAMP(4FM)

90464-15195-00

$4.41

14

CLAMP(MF1)

90464-15152-00

$5.60

15

WIRE, SUB LEAD

5PH-82509-00-00

Unavailable

16

VOLTAGE REGULATOR ASSY

5GS-81910-50-00

Unavailable

17

BOLT, WITH WASHER

90119-06039-00

Unavailable

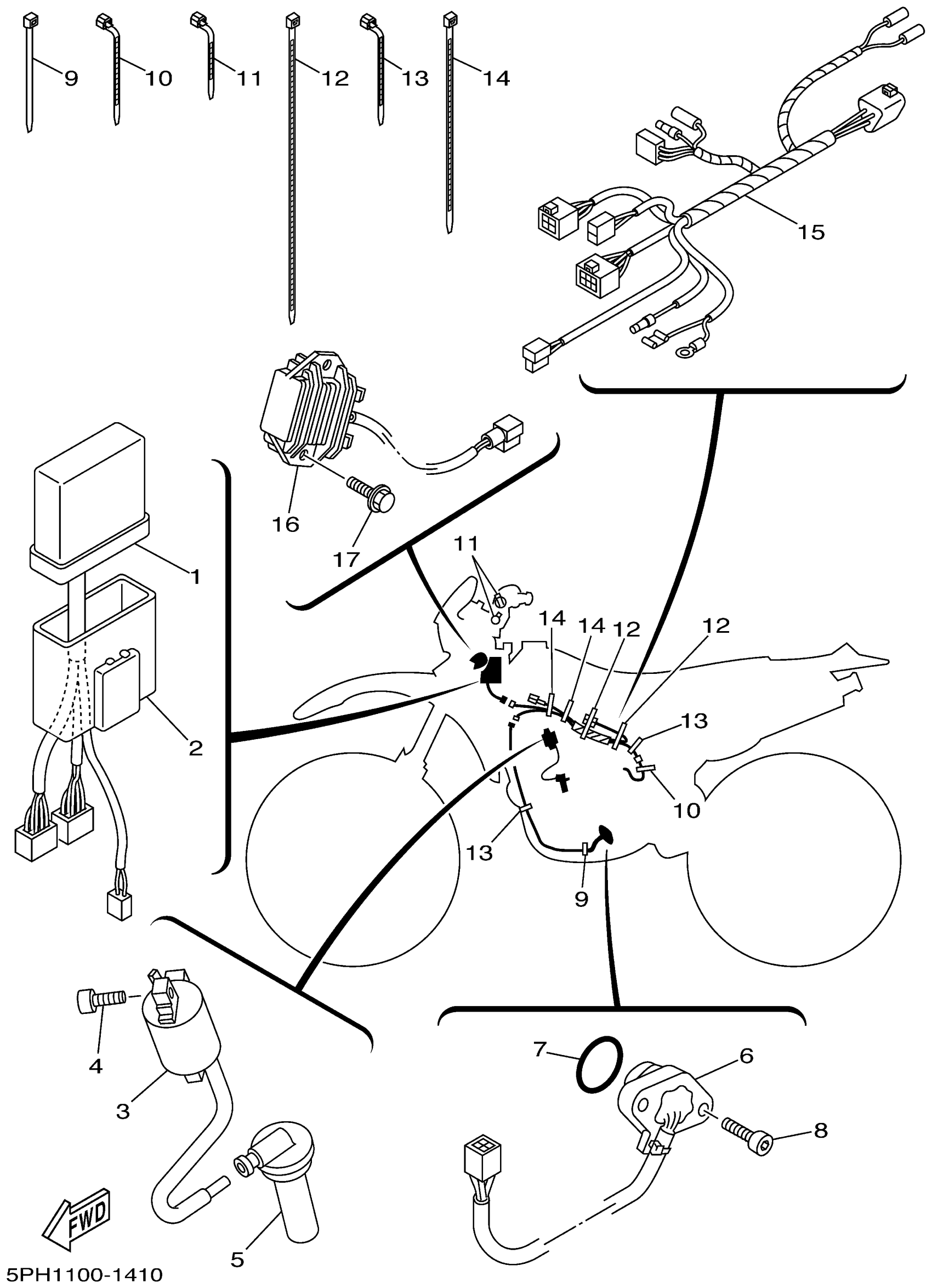

Yamaha WR250FN (WR250F) 5PH1 2001 ELECTRICAL 1 Diagram

C.D.I. UNIT ASSY

BAND

IGNITION COIL ASSY

BOLT,SOCKET

PLUG CAP ASSY

NEUTRAL SWITCH ASSY

O-RING

SCREW, BINDING

CLAMP

CLAMP(4FM)

CLAMP

CLAMP(MF1)

CLAMP(4FM)

CLAMP(MF1)

WIRE, SUB LEAD

VOLTAGE REGULATOR ASSY

BOLT, WITH WASHER
