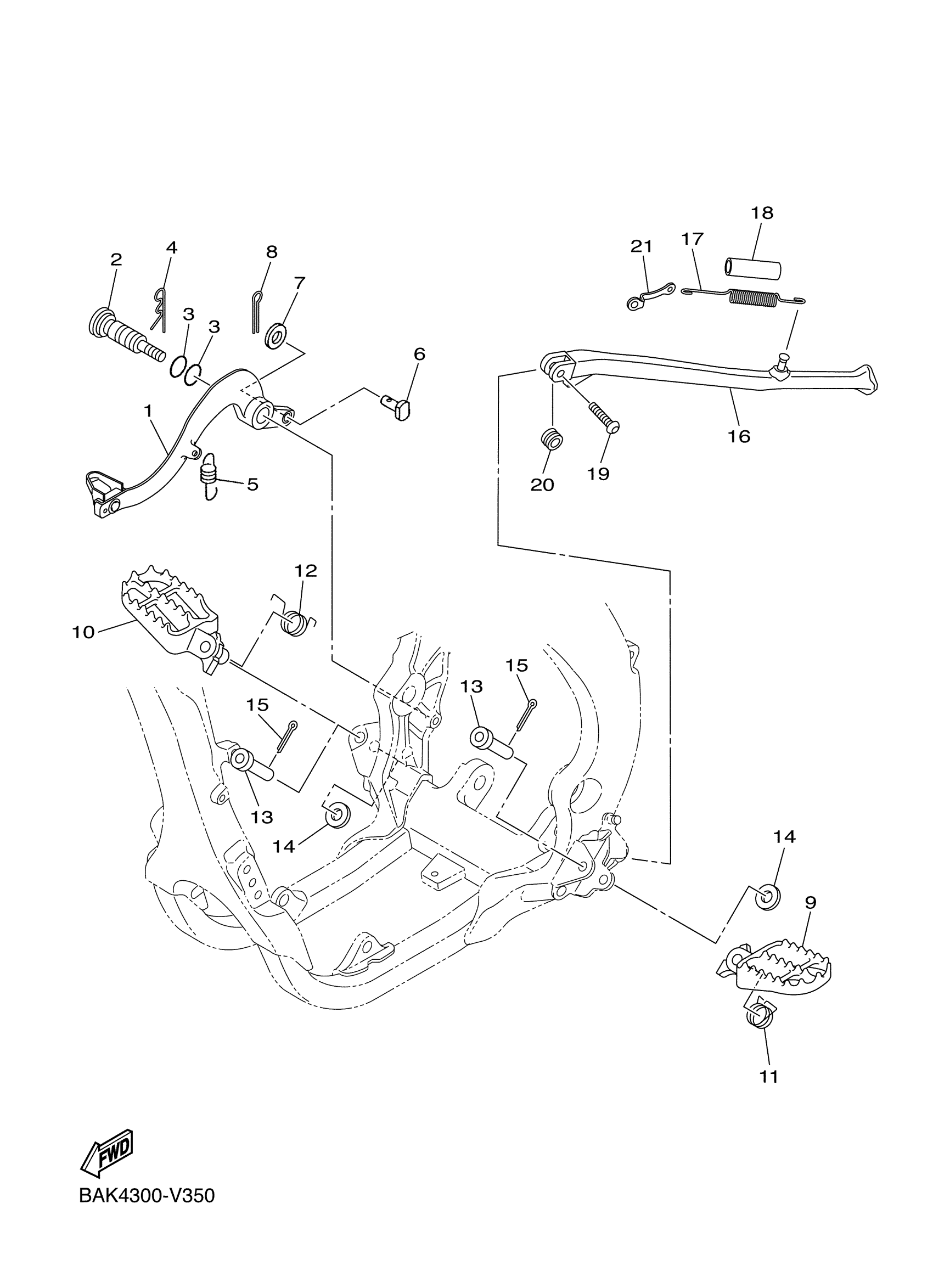

Yamaha WR250FM (WR250F) BAK7 2021 STAND & FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

17D-27200-51-00

$95.99

2

BOLT

17D-27217-00-00

$29.99

3

O-RING (P95)

93210-11073-00

$7.49

4

CLIP

90468-16001-00

$5.60

5

SPRING, TENSION

90506-20031-00

$5.49

6

PIN, CLEVIS(2VM)

90240-08120-00

$13.49

7

WASHER, PLATE

90201-08044-00

$8.49

8

PIN, COTTER (648)

91490-20015-00

$2.20

9

FOOTREST 1

5XC-27411-M2-00

$121.99

10

FOOTREST 2

5XC-27421-M2-00

Unavailable

11

SPRING, TORSION

90508-28021-00

$7.49

12

SPRING, TORSION

90508-28018-00

$7.49

13

PIN, CLEVIS

90240-10004-00

$13.99

14

WASHER, PLATE

90201-10032-00

$1.17

15

PIN, COTTER

91490-25020-00

$3.19

16

STAND, SIDE

B3J-27311-01-00

Unavailable

17

SPRING, TENSION

90506-26013-00

Unavailable

18

HOSE (L70)

90445-22327-00

Unavailable

19

BOLT,HEX. SOCKET BUTTON

90111-10051-00

Unavailable

20

COLLAR

90387-10020-00

Unavailable

21

LINK,SIDE STAND

B3J-27315-00-00

Unavailable
