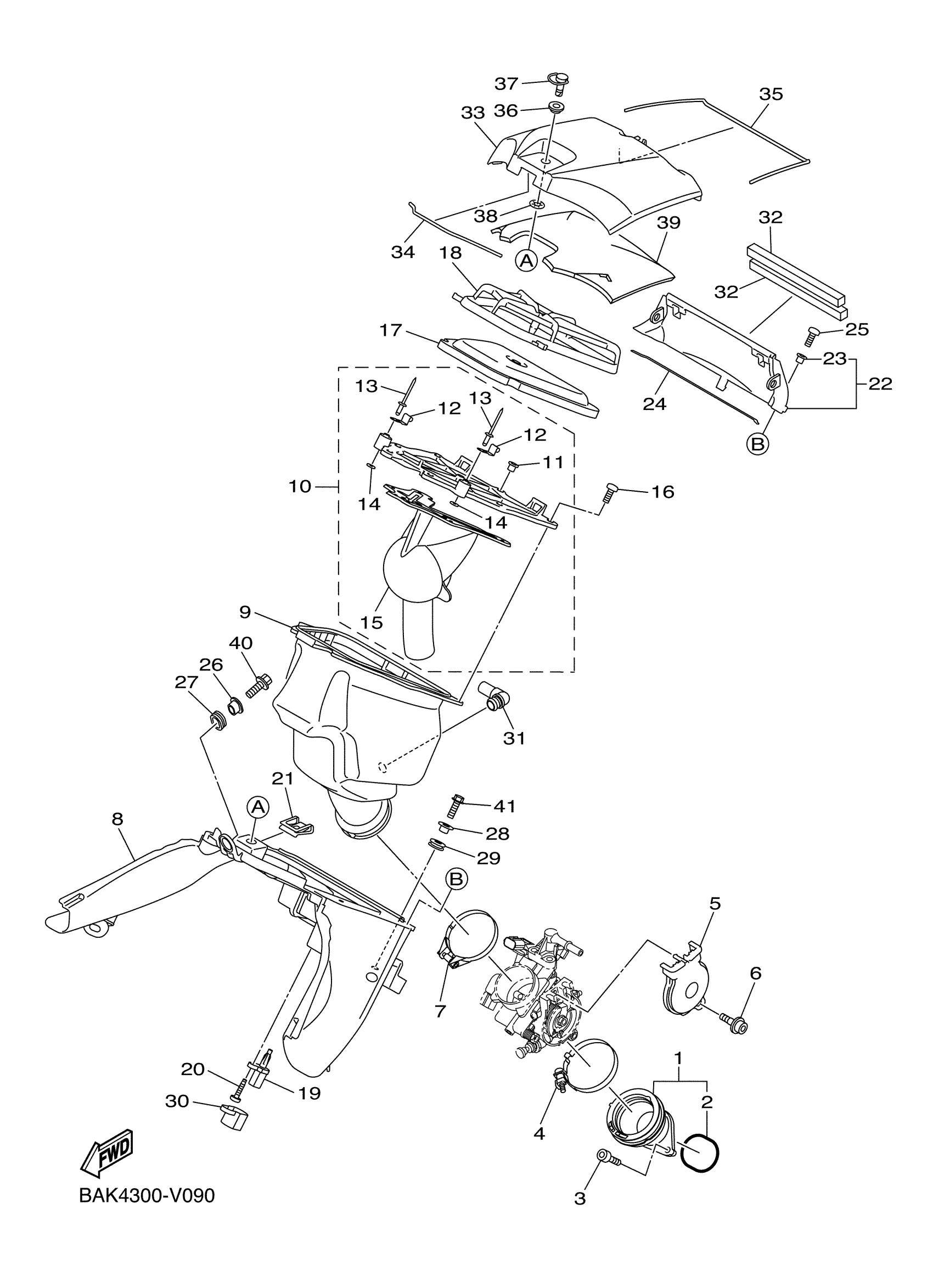

Yamaha WR250FM (WR250F) BAK7 2021 INTAKE Diagram

#

Description
Price

1

JOINT, CARBURETOR 3

B7B-13597-01-00

Unavailable

2

GASKET

B7B-13566-00-00

$20.99

3

BOLT,SOCKET HEAD

91314-06020-00

$1.49

4

HOSE CLAMP ASSY

90450-60004-00

$16.99

5

COVER 1

BR9-14293-00-00

Unavailable

6

BOLT, HEXAGON SOCKET HEAD

90110-05066-00

$7.49

7

HOSE CLAMP ASSY

90450-58006-00

$20.99

8

CASE, AIR CLEANER 1

BR9-14411-01-00

$85.99

9

JOINT, AIR CLEANER 1

BAJ-14453-00-00

$95.99

10

HOLDER, GUIDE

B7R-14459-00-00

Unavailable

11

COLLAR

90387-05055-00

$2.17

12

HINGE

8GC-14406-00-00

$9.49

13

RIVET, BLIND

90267-32013-00

$2.22

14

WASHER, PLATE

90201-03008-00

$8.49

15

CHAMBER, AIR

B7R-13581-00-00

Unavailable

16

SCREW,PAN HEAD

98502-05014-00

Unavailable

17

ELEMENT, AIR CLEANER

B2W-14451-01-00

Unavailable

18

GUIDE

BR9-14458-00-00

Unavailable

19

SENSOR, AIR TEMPERATURE

5YU-85886-00-00

Unavailable

20

SCREW, PANHEAD TAPPING

97702-50520-00

Unavailable

21

PLATE, SPRING

4XV-2177L-01-00

Unavailable

22

CAP, CLEANER CASE 2

BR9-14422-00-00

Unavailable

23

COLLAR

90387-05055-00

$2.17

24

SEAL

BR9-14462-00-00

Unavailable

25

SCREW,PAN HEAD

98502-05014-00

Unavailable

26

COLLAR

BR9-14449-00-00

Unavailable

27

GROMMET

90480-01028-00

Unavailable

28

COLLAR

90387-06273-00

Unavailable

29

GROMMET (2T4)

90480-12237-00

Unavailable

30

HOLDER

20S-1445C-01-00

Unavailable

31

PIPE

5TJ-14419-00-00

Unavailable

32

DAMPER, PLATE 6

2D1-2414R-00-00

Unavailable

33

CAP, CLEANER CASE 1

BR9-14412-00-00

Unavailable

34

SEAL

1SL-14452-00-00

Unavailable

35

SEAL

BR9-14457-00-00

Unavailable

36

COLLAR

90387-07045-00

Unavailable

37

HEAD

1SL-28386-00-00

Unavailable

38

WASHER, SPECIAL 1

5TJ-21757-00-00

Unavailable

39

DAMPER 1

B7R-14425-00-00

Unavailable

40

BOLT, FLANGE

90105-06203-00

Unavailable

41

BOLT, FLANGE DEEP RECESS

95E37-06016-00

Unavailable
