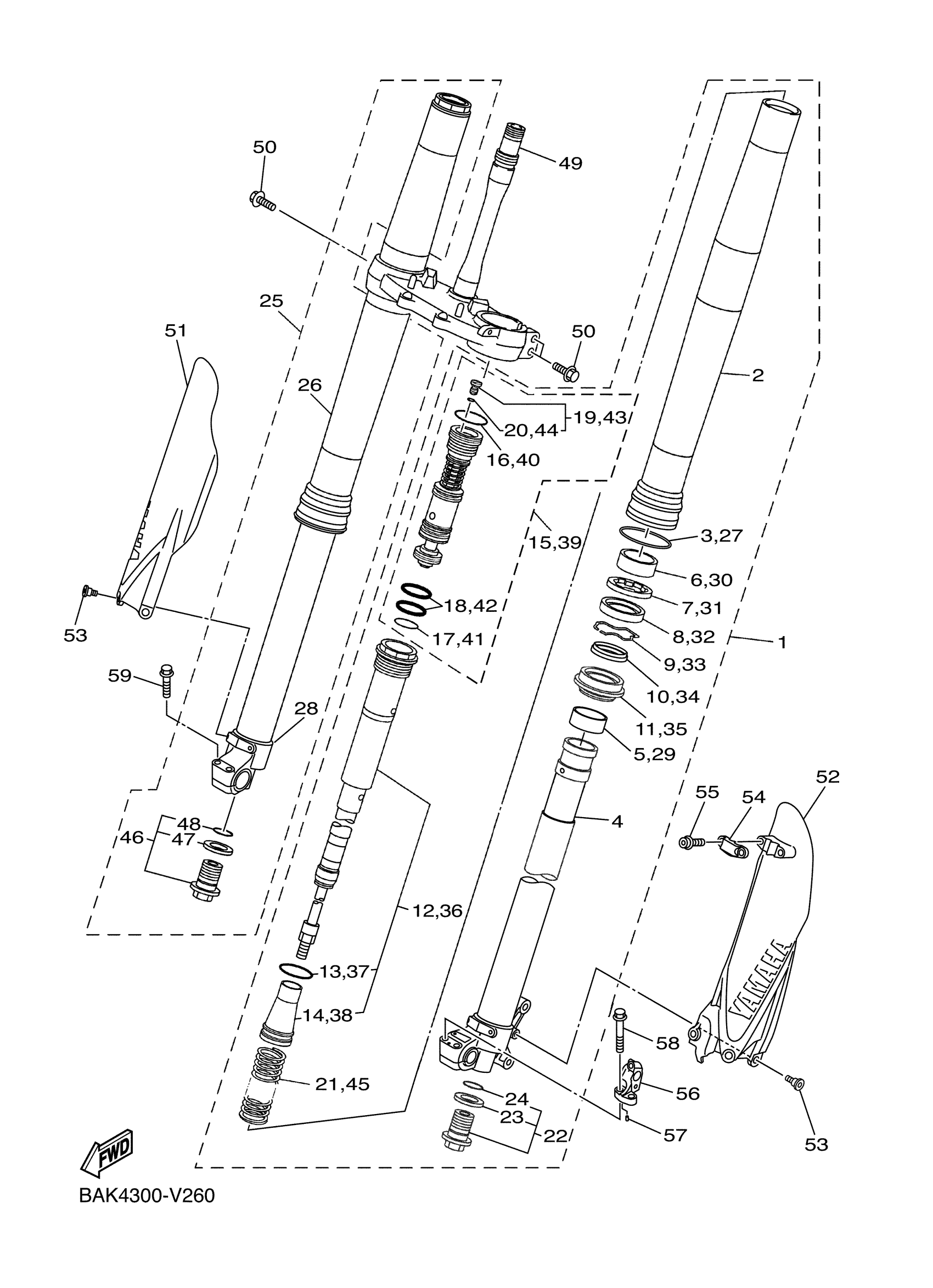

Yamaha WR250FM (WR250F) BAK7 2021 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

BAK-23102-00-00

Unavailable

2

TUBE, OUTER

33D-23136-00-00

$581.99

3

RING, SNAP

17D-23153-00-00

$4.63

4

INNER TUBE COMP.2

B7R-23120-01-00

$349.99

5

PISTON, FRONT FORK

5XE-23171-L0-00

$27.99

6

METAL, SLIDE 1

5XE-23125-L0-00

$25.99

7

WASHER, OIL SEAL

5XC-23146-10-00

$14.49

8

OIL SEAL

B29-23145-00-00

$22.99

9

RING, SNAP

5XE-23153-L0-00

$7.99

10

SCRAPER

B29-4381D-00-00

$17.99

11

SEAL, DUST

5XE-23144-L0-00

$22.99

12

CYLINDER COMP., FRONT FORK

B3J-23170-20-00

Unavailable

13

O-RING

1C3-23147-L1-00

$3.48

14

SEAT, SPRING UPPER

BR9-23142-01-00

$58.99

15

VALVE COMP.

BAK-2316A-00-00

Unavailable

16

O-RING

1C3-23188-L1-00

Unavailable

17

O-RING

1C3-23188-P0-00

Unavailable

18

O-RING

1W4-23114-L0-00

Unavailable

19

AIR VALVE COMP.

1C3-23190-L1-00

Unavailable

20

O-RING

1C3-23188-R1-00

Unavailable

21

SPRING, FRONT FORK (K=4.6)

BR9-23141-30-00

Unavailable

22

BOLT, CAP

5XC-23111-01-00

Unavailable

23

GASKET

2HH-23158-L0-00

Unavailable

24

GASKET

276-23114-01-00

Unavailable

25

FRONT FORK ASSY (R.H)

BAK-23103-00-00

Unavailable

26

TUBE, OUTER

33D-23136-00-00

$581.99

27

RING, SNAP

17D-23153-00-00

$4.63

28

INNER TUBE COMP.1

B7R-23110-01-00

Unavailable

29

PISTON, FRONT FORK

5XE-23171-L0-00

$27.99

30

METAL, SLIDE 1

5XE-23125-L0-00

$25.99

31

WASHER, OIL SEAL

5XC-23146-10-00

$14.49

32

OIL SEAL

B29-23145-00-00

$22.99

33

RING, SNAP

5XE-23153-L0-00

$7.99

34

SCRAPER

B29-4381D-00-00

$17.99

35

SEAL, DUST

5XE-23144-L0-00

$22.99

36

CYLINDER COMP., FRONT FORK

B3J-23170-20-00

Unavailable

37

O-RING

1C3-23147-L1-00

$3.48

38

SEAT, SPRING UPPER

BR9-23142-01-00

$58.99

39

VALVE COMP.

BAK-2316A-00-00

Unavailable

40

O-RING

1C3-23188-L1-00

Unavailable

41

O-RING

1C3-23188-P0-00

Unavailable

42

O-RING

1W4-23114-L0-00

Unavailable

43

AIR VALVE COMP.

1C3-23190-L1-00

Unavailable

44

O-RING

1C3-23188-R1-00

Unavailable

45

SPRING, FRONT FORK (K=4.6)

BR9-23141-30-00

Unavailable

46

BOLT, CAP

5XC-23111-01-00

Unavailable

47

GASKET

2HH-23158-L0-00

Unavailable

48

GASKET

276-23114-01-00

Unavailable

49

UNDER BRACKET COMP.

B7R-23340-00-00

Unavailable

50

BOLT, FLANGE DEEP RECESS

95E34-08035-00

Unavailable

51

PROTECTOR 2

17D-2315J-H0-00

Unavailable

52

PROTECTOR 1

B7R-2315H-11-00

Unavailable

53

BOLT

90109-06232-00

Unavailable

54

CLAMP

B7R-23466-00-00

Unavailable

55

BOLT, HEXAGON SOCKET HEAD

90110-05028-00

Unavailable

56

BRACKET 1

B7R-83955-00-00

Unavailable

57

PIN, DOWEL

93603-07073-00

Unavailable

58

BOLT, FLANGE DEEP RECESS

95E34-08045-00

Unavailable

59

BOLT, FLANGE DEEP RECESS

95E34-08035-00

Unavailable
