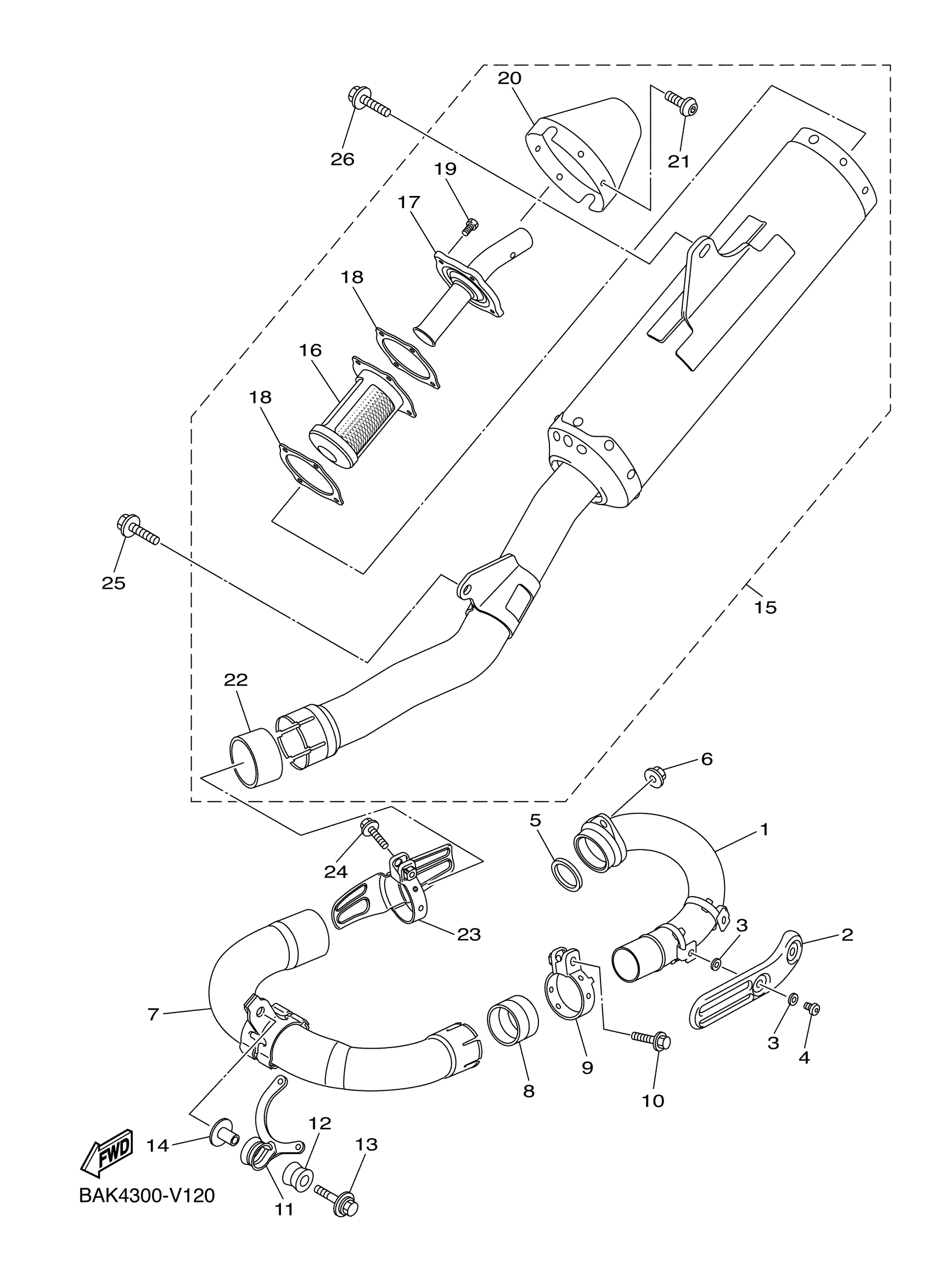

Yamaha WR250FM (WR250F) BAK7 2021 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

BAK-14611-00-00

Unavailable

2

PROTECTOR, EXHAUST PIPE

BAK-14628-00-00

Unavailable

3

WASHER, PLATE

90201-05017-00

Unavailable

4

SCREW, BIND(1JK)

98980-06010-00

$9.49

5

GASKET, EXHAUST PIPE

5NL-14613-00-00

$14.49

6

NUT, FLANGE(7NB)

95780-06500-00

$2.60

7

PIPE, EXHAUST 2

B7B-14621-00-00

$212.99

8

GASKET, SILENCER

19D-14755-00-00

$16.49

9

BAND, SILENCER

B7B-14788-00-00

$22.99

10

BOLT, FLANGE DEEP RECESS

95E34-08040-00

$1.49

11

STAY, EXHAUST PIPE 1

B7B-14639-00-00

$21.99

12

DAMPER, MUFFLER

5VY-14747-00-00

$14.49

13

BOLT, WITH WASHER

90119-08174-00

$5.60

14

COLLAR

90387-08081-00

$8.49

15

MUFFLER COMP.

BAK-14701-00-00

Unavailable

16

SPARK ARRESTER ASSY

5TJ-14780-00-00

Unavailable

17

PIPE, TAIL

BAK-14784-00-00

Unavailable

18

GASKET, EXHAUST PIPE

5TJ-14623-00-00

Unavailable

19

BOLT, HEXAGON SOCKET HEAD

90110-05041-00

Unavailable

20

CAP

5TJ-14799-00-00

Unavailable

21

BOLT, BUTTON HEAD

92012-05008-00

Unavailable

22

GASKET, MUFFLER

1SL-14714-00-00

Unavailable

23

BAND, MUFFLER

BR9-14715-00-00

Unavailable

24

BOLT, FLANGE DEEP RECESS

95E34-08040-00

$1.49

25

BOLT, WITH WASHER

90119-08178-00

Unavailable

26

BOLT, WITH WASHER

90119-08170-00

Unavailable
