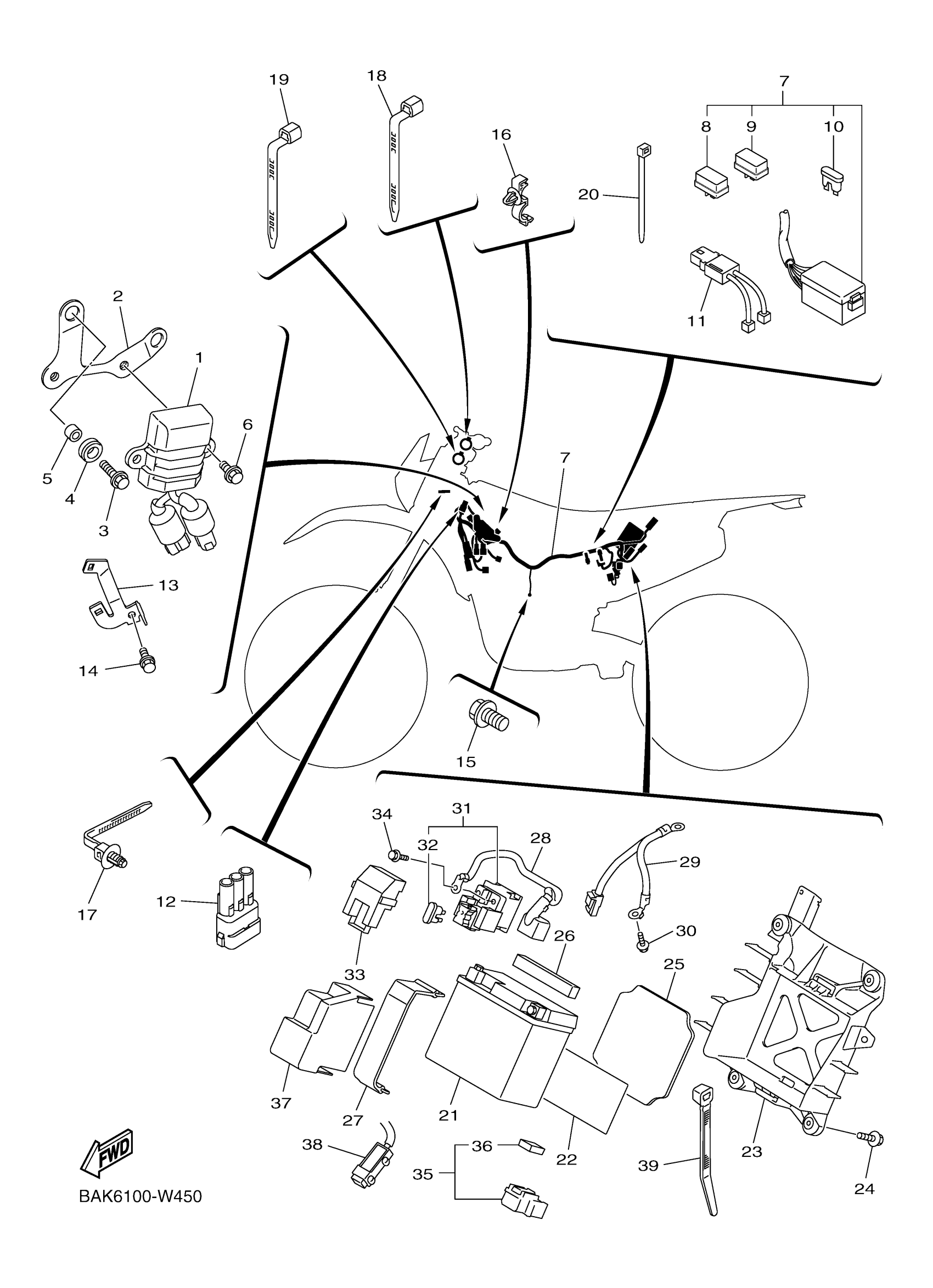

Yamaha WR250FM (WR250F) BAK7 2021 ELECTRICAL 2 Diagram

#

Description
Price

1

RECTIFIER & REGULATOR ASSY

B7B-81960-00-00

$156.99

2

BRACKET, REGULATOR

B7B-21287-00-00

$14.99

3

BOLT, FLANGE

90105-06219-00

$2.12

4

GROMMET

90480-13025-00

$3.28

5

COLLAR (8H6)

90387-07573-00

$9.49

6

BOLT, FLANGE

90105-06064-00

Unavailable

7

WIRE HARNESS ASSY

BAK-82590-30-00

$587.99

8

DIODE ASSY

4WA-81980-00-00

$29.99

9

DIODE ASSY

3WP-81980-00-00

$22.99

10

FUSE (5A)

67F-82151-20-00

Unavailable

11

WIRE, SUB LEAD

1SL-82309-00-00

$31.99

12

CONNECTOR

33D-82378-00-00

$17.49

13

PLATE

B7B-82388-00-00

$10.49

14

BOLT, FLANGE

90105-06110-00

$8.49

15

BOLT, FLANGE DEEP RECESS

95E32-06010-00

$0.91

16

CLAMP

90464-17003-00

Unavailable

17

CLAMP

90464-30009-00

Unavailable

18

CLAMP

90464-25004-00

Unavailable

19

CLAMP(4FM)

90464-15195-00

Unavailable

20

BAND

1UA-82591-00-00

Unavailable

21

BATTERY ASSY (YTZ7S(F))

5TJ-82100-01-00

Unavailable

22

SEAT, BATTERY

18P-82122-00-00

Unavailable

23

BRACKET, BATTERY

B3J-82128-00-00

Unavailable

24

BOLT, WITH WASHER

90119-06133-00

Unavailable

25

DAMPER

2GB-82176-00-00

Unavailable

26

DAMPER

4B5-2174X-00-00

Unavailable

27

BAND, BATTERY

8CY-82131-00-00

Unavailable

28

WIRE, PLUS LEAD

B7R-82115-00-00

Unavailable

29

WIRE, MINUS LEAD

B7R-82116-00-00

Unavailable

30

BOLT, FLANGE

90105-06064-00

Unavailable

31

STARTER RELAY ASSY

2GB-81940-00-00

Unavailable

32

FUSE (12V 15A)

36Y-82151-00-00

Unavailable

33

COVER, LEAD WIRE

5SL-82119-10-00

Unavailable

34

BOLT, FLANGE

95022-06008-00

Unavailable

35

RELAY ASSY (1ST-00)

1ST-81950-00-00

Unavailable

36

HOLDER, RELAY

5JJ-81952-00-00

Unavailable

37

COVER 1

B7R-8246B-00-00

Unavailable

38

RESISTOR ASSY

2GB-82718-00-00

Unavailable

39

CLAMP

90465-10098-00

Unavailable
