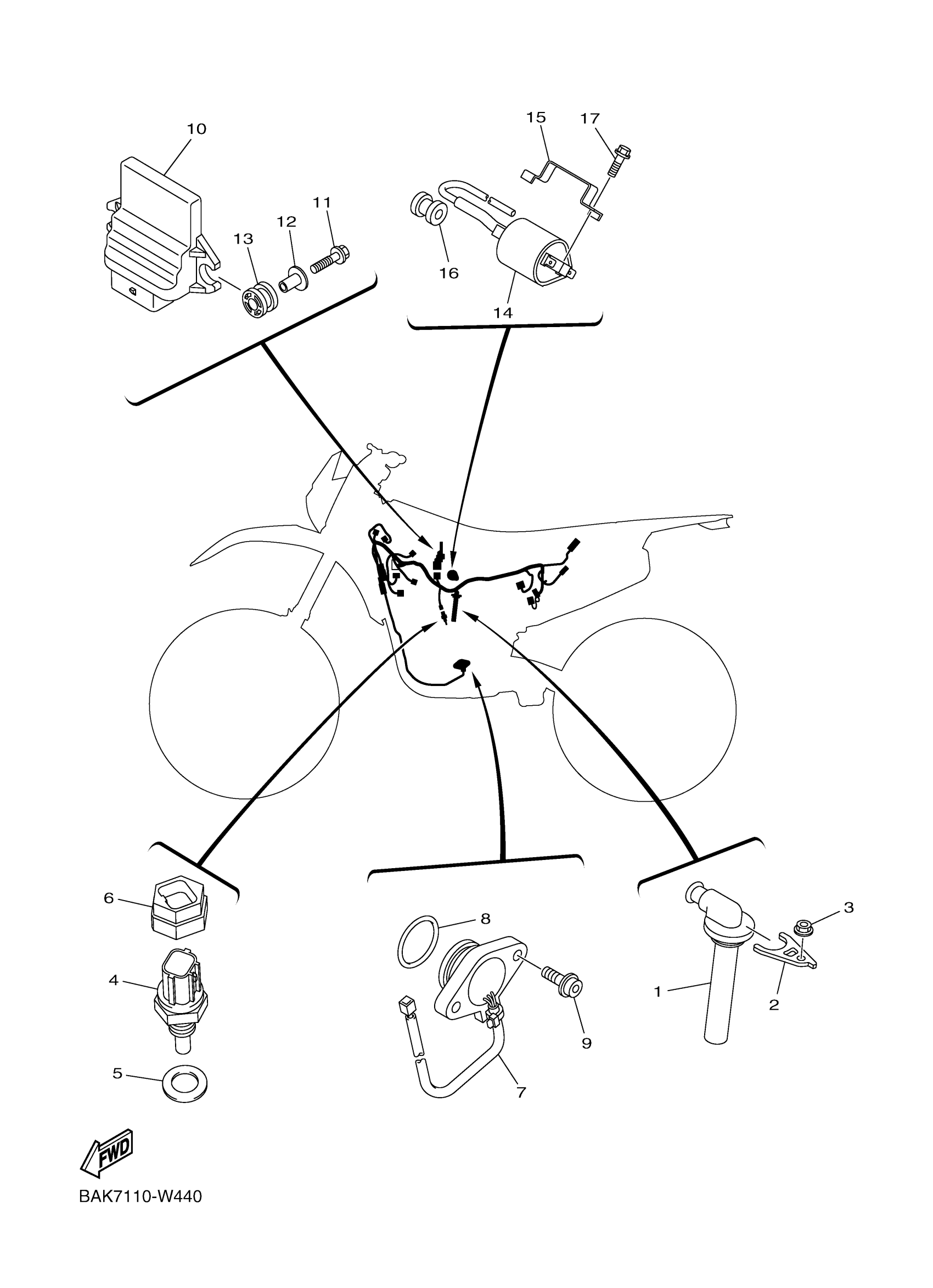

Yamaha WR250FM (WR250F) BAK7 2021 ELECTRICAL 1 Diagram

#

Description
Price

1

PLUG CAP ASSY

1SM-82370-01-00

$90.18

2

HOLDER

BR9-11395-00-00

$4.06

3

NUT, FLANGE

95702-06500-00

$1.95

4

THERMO UNIT

52B-H3591-00-00

Unavailable

5

GASKET

90430-10004-00

$5.55

6

HOLDER, LEVER UNDER

B2W-82915-00-00

$5.27

7

NEUTRAL SWITCH ASSY

B11-82540-01-00

Unavailable

8

O-RING

93210-21001-00

$4.46

9

BOLT, HEXAGON SOCKET HEAD

90110-05028-00

$5.86

10

ENGINE CONTROL UNIT ASSY

BAK-8591A-10-00

$430.06

11

BOLT, FLANGE

90105-05005-00

$0.79

12

COLLAR

90387-05048-00

$5.03

13

GROMMET

90480-13029-00

$4.47

14

IGNITION COIL ASSY

B7B-82310-03-00

$45.19

15

CORE, SIDE

BR9-8231U-00-00

$19.14

16

GROMMET

90480-11015-00

Unavailable

17

BOLT, FLANGE DEEP RECESS

95E32-06016-00

Unavailable
