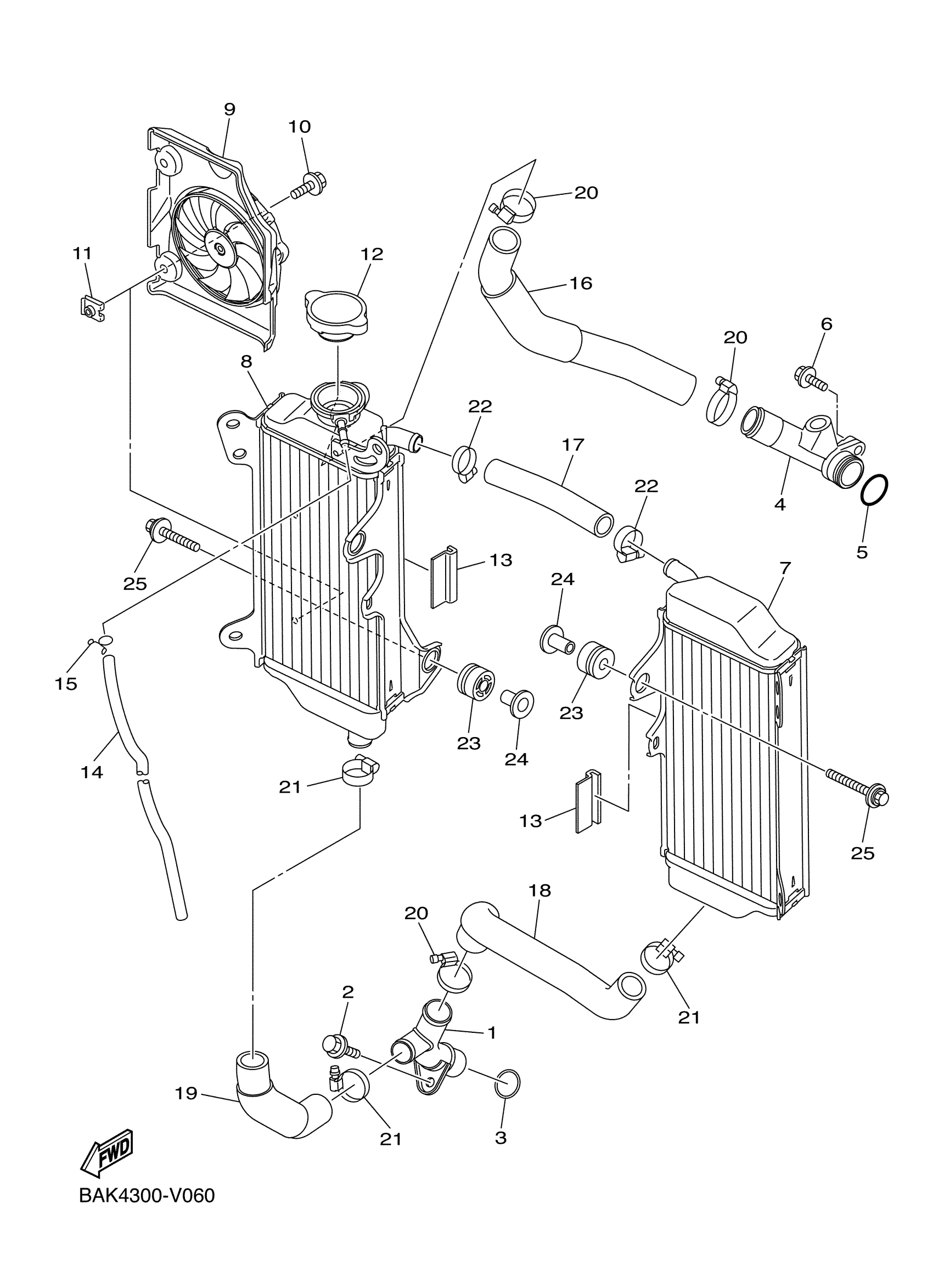

Yamaha WR250FL (WR250F) BAK2 2020 RADIATOR HOSE Diagram

#

Description
Price

1

PIPE 2

B7B-12482-00-00

$49.99

2

BOLT, FLANGE DEEP RECESS

95E32-06012-00

$0.70

3

O-RING (5U8)

93210-16500-00

$7.49

4

JOINT

1SM-12446-00-00

$39.99

5

. O-RING

93210-16275-00

Unavailable

6

BOLT, FLANGE DEEP RECESS

95E32-06020-00

$0.86

7

RADIATOR ASSY

BR9-1240A-00-00

$212.99

8

RADIATOR COMP

B3J-12461-00-00

$203.99

9

BLOWER ASSY

B3J-12405-00-00

$177.99

10

BOLT

2GB-12615-00-00

$2.81

11

NUT 1

5SL-12671-00-00

$6.99

12

CAP, RADIATOR

5SL-12462-01-00

$29.99

13

DAMPER, RADIATOR

33D-12465-00-00

$14.49

14

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$14.99

15

CLIP

90467-090A2-00

$4.41

16

HOSE 1

B7B-12576-00-00

Unavailable

17

HOSE 2

BR9-12577-00-00

Unavailable

18

HOSE 3

B7B-12578-00-00

Unavailable

19

HOSE 4

B7B-12579-01-00

Unavailable

20

HOSE CLAMP ASSY

90450-28001-00

Unavailable

21

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

22

HOSE CLAMP ASSY

90450-18M09-00

Unavailable

23

GROMMET

90480-15012-00

Unavailable

24

COLLAR

90387-06065-00

Unavailable

25

BOLT, WITH WASHER

90119-06262-00

Unavailable
