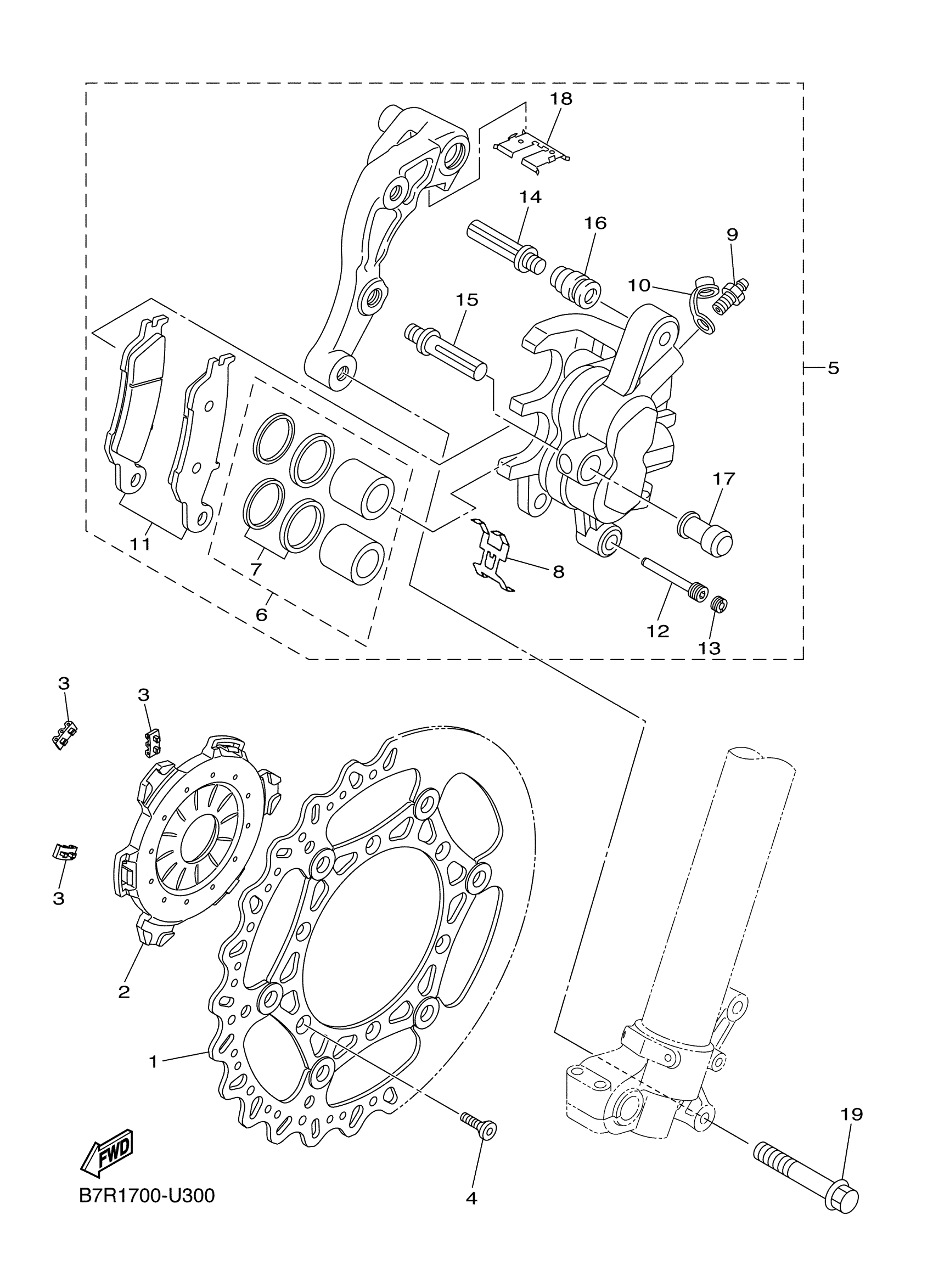

Yamaha WR250FL (WR250F) BAK2 2020 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

B11-2581T-00-00

$163.01

2

ROTOR, SENSOR

B7R-2517G-00-00

$32.74

3

DAMPER

B7R-2516A-00-00

$7.35

4

SCREW, COUNTERSUNK

90151-06079-00

$2.49

5

CALIPER ASSY (LEFT)

B11-2580T-01-00

$401.71

6

PISTON ASSY, CALIP

5XC-25802-00-00

$88.77

7

CALIPER SEAL KIT

5KM-25803-10-00

$17.59

8

SUPPORT, PAD

5DH-25919-00-00

$16.55

9

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

10

BLEED SCREW KIT

36Y-W0048-00-00

$7.94

11

BRAKE PAD KIT

B29-25805-01-00

$40.45

12

PIN, PAD

5DH-25933-00-00

$16.24

13

PLUG

5DH-25916-00-00

$6.94

14

BOLT

3SP-25926-51-00

$10.74

15

BOLT

3SP-25914-51-00

$3.67

16

BOOT, CALIPER

3JD-25917-00-00

Unavailable

17

BOOT 2

1UY-25937-51-00

Unavailable

18

RETAINER, CALIPER

5XC-25849-G0-00

Unavailable

19

BOLT, FLANGE

90105-08137-00

Unavailable
