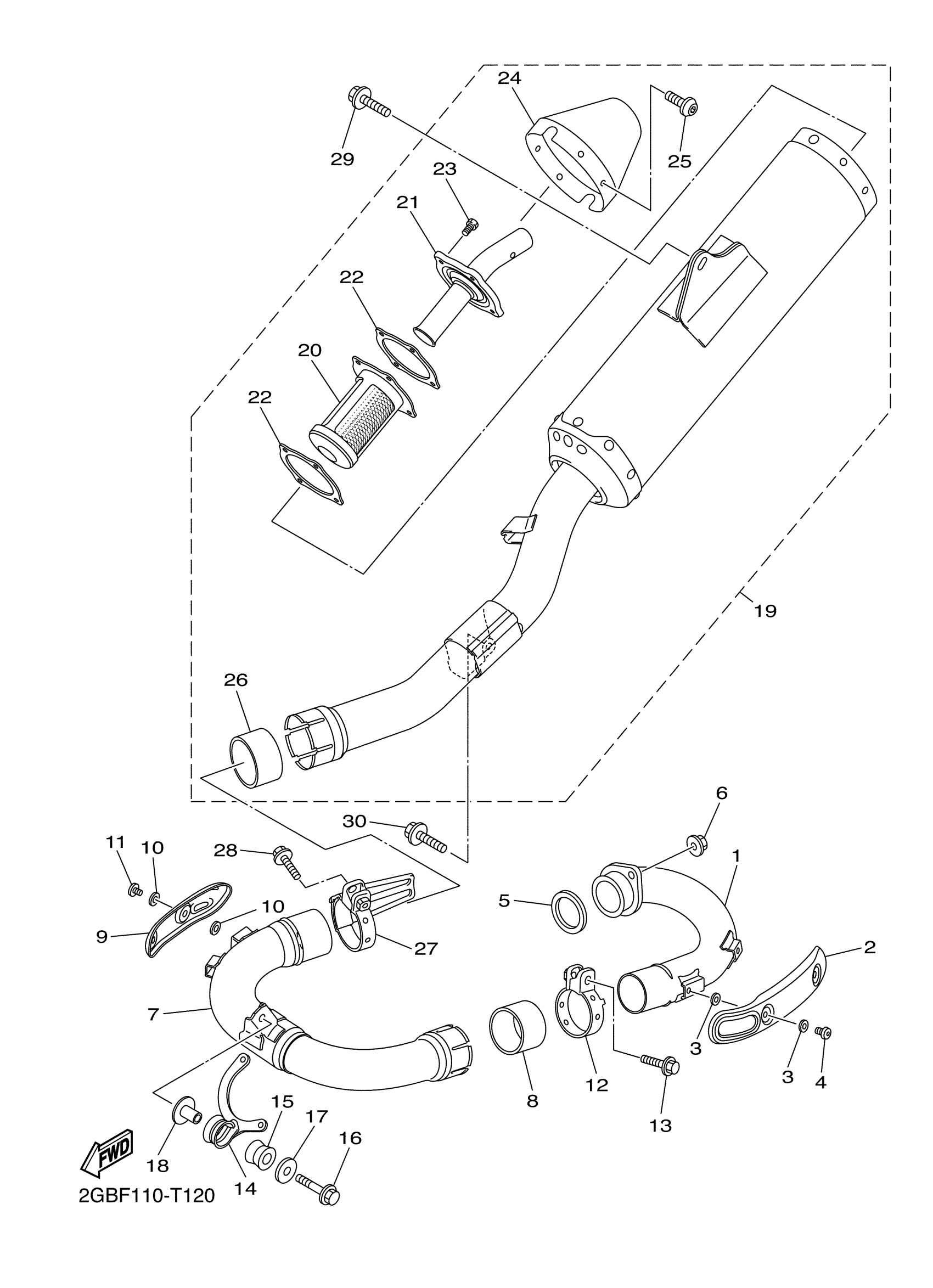

Yamaha WR250FJ (WR250F) 2GBF 2018 EXHAUST Diagram

#

Description
Price

1

PIPE, EXHAUST 1

1SM-14611-00-00

Unavailable

2

PROTECTOR, EXHAUST PIPE

1SL-14628-00-00

$39.99

3

WASHER, PLATE

90201-05017-00

Unavailable

4

SCREW, BIND(2TV)

98980-06008-00

$3.19

5

GASKET, EXHAUST PIPE

5NL-14613-00-00

$14.49

6

NUT,FLANGE(J10)

95702-08500-00

$1.43

7

PIPE, EXHAUST 2

1SM-14621-E0-00

Unavailable

8

GASKET, SILENCER

5PX-14755-00-00

$29.99

9

PROTECTOR, EXT. PIPE 2

1SL-1463B-00-00

$41.99

10

WASHER, PLATE

90201-05017-00

Unavailable

11

SCREW, BIND(2TV)

98980-06008-00

$3.19

12

BAND, SILENCER

1SM-14788-00-00

$20.99

13

BOLT, FLANGE(4KG)

95024-08040-00

$8.49

14

STAY, EXHAUST PIPE 1

1SM-14639-00-00

$32.99

15

DAMPER, MUFFLER

5VY-14747-00-00

$14.49

16

BOLT, FLANGE

90105-08137-00

Unavailable

17

WASHER, PLATE

90201-08061-00

Unavailable

18

COLLAR

90387-08081-00

Unavailable

19

MUFFLER COMP.

2GB-14701-00-00

Unavailable

20

SPARK ARRESTER ASSY

5TJ-14780-00-00

Unavailable

21

PIPE, TAIL

5TJ-14784-00-00

Unavailable

22

GASKET, EXHAUST PIPE

5TJ-14623-00-00

Unavailable

23

BOLT, HEXAGON SOCKET HEAD

90110-05041-00

Unavailable

24

CAP

5TJ-14799-00-00

Unavailable

25

BOLT, BUTTON HEAD

92012-05008-00

Unavailable

26

GASKET, MUFFLER

1SL-14714-00-00

Unavailable

27

BAND, MUFFLER

B29-14715-00-00

Unavailable

28

BOLT, FLANGE(4KG)

95024-08040-00

$8.49

29

BOLT, FLANGE

90105-08230-00

Unavailable

30

BOLT, WITH WASHER

90119-08170-00

Unavailable
