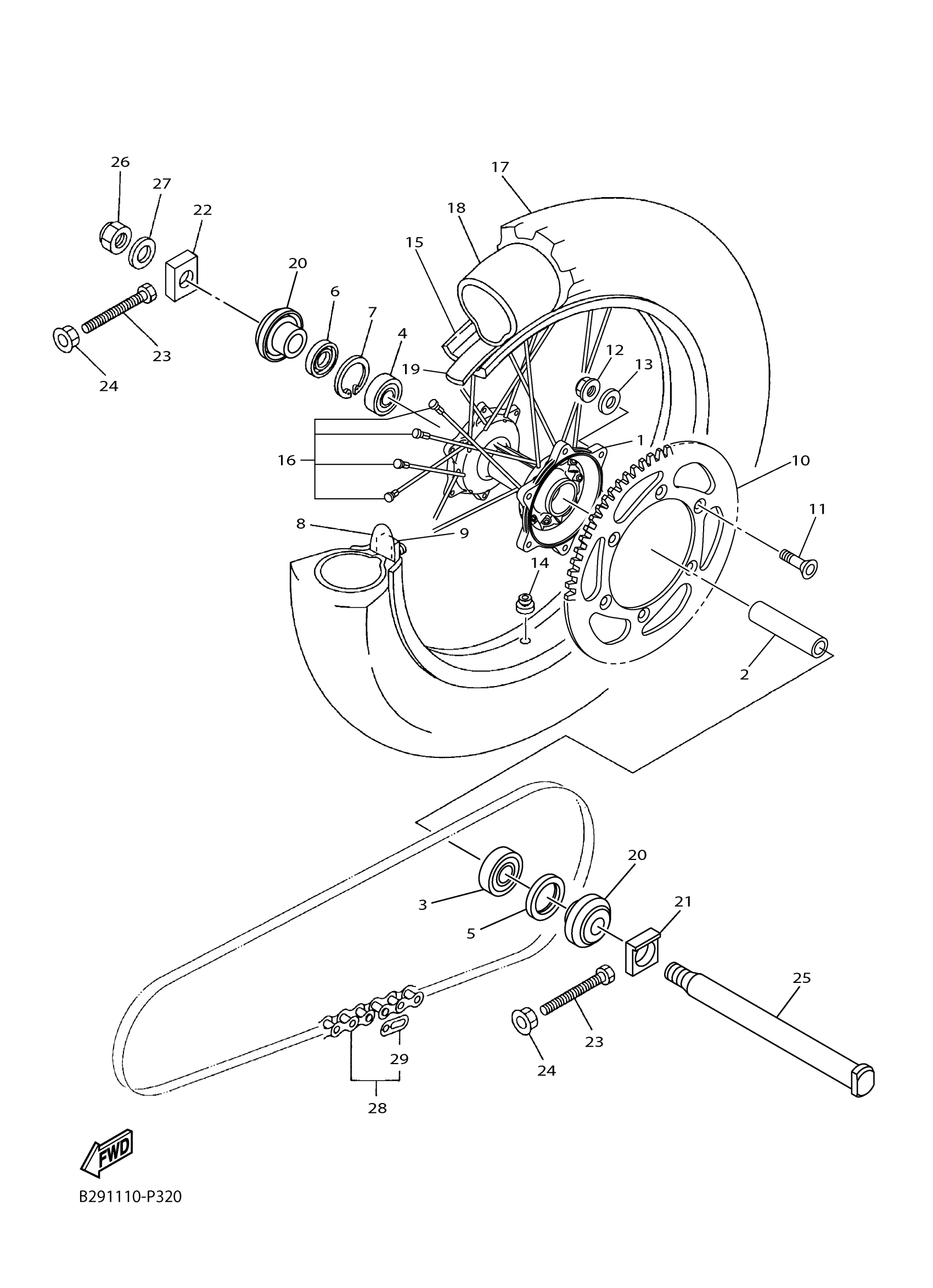

Yamaha WR250FH (WR250F) 2GBB 2017 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

5ET-25311-00-00

$311.99

2

SPACER, BEARING

5ET-25317-00-00

$49.99

3

BEARING

93306-27212-00

$75.99

4

BEARING(85G)

93306-07202-00

$38.99

5

OIL SEAL

93106-30001-00

$12.49

6

OIL SEAL

93106-30045-00

$10.49

7

CIRCLIP

99009-45500-00

$2.17

8

SPACER, BEAD

3JE-25394-00-00

$37.99

9

DAMPER

4XM-25364-00-00

$7.99

10

SPROCKET, DRIVEN (48T)

5GS-25448-50-00

$47.99

10

SPROCKET, DRIVEN (50T)

5TJ-25450-80-00

$64.99

10

SPROCKET, DRIVEN (52T)

5TJ-25452-80-00

$45.99

11

BOLT

90109-08078-00

$5.60

12

NUT, SELF-LOCKING

90185-08008-00

$7.49

13

WASHER, PLATE

90201-08048-00

$5.60

14

GROMMET (397)

90480-10068-00

Unavailable

15

RIM (2.15-18)

94421-18040-00

Unavailable

16

SPOKE SET, REAR

5GS-25304-00-00

Unavailable

17

TIRE (110/100-18 64M MX51)

94111-18024-00

Unavailable

18

TUBE (5A8)

94212-18188-00

Unavailable

19

BAND, RIM (2J4)

94340-18086-00

Unavailable

20

COLLAR ASSY

1DX-2530S-01-00

Unavailable

21

PULLER, CHAIN 1

1C3-25388-H0-00

Unavailable

22

PULLER, CHAIN 2

1C3-25389-H0-00

Unavailable

23

BOLT

90101-08006-00

Unavailable

24

NUT

90179-08019-00

Unavailable

25

AXLE, WHEEL

1C3-25381-90-00

Unavailable

26

NUT, SELF-LOCKING

90185-20002-00

Unavailable

27

WASHER, PLATE

90201-20020-00

Unavailable

28

CHAIN (DID520VM2-114LL)

9Y58F-39113-00

Unavailable

29

JOINT, CHAIN

94682-42021-00

Unavailable
