2017 Yamaha WR250F (WR250FH) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 2017 Yamaha WR250F (WR250FH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

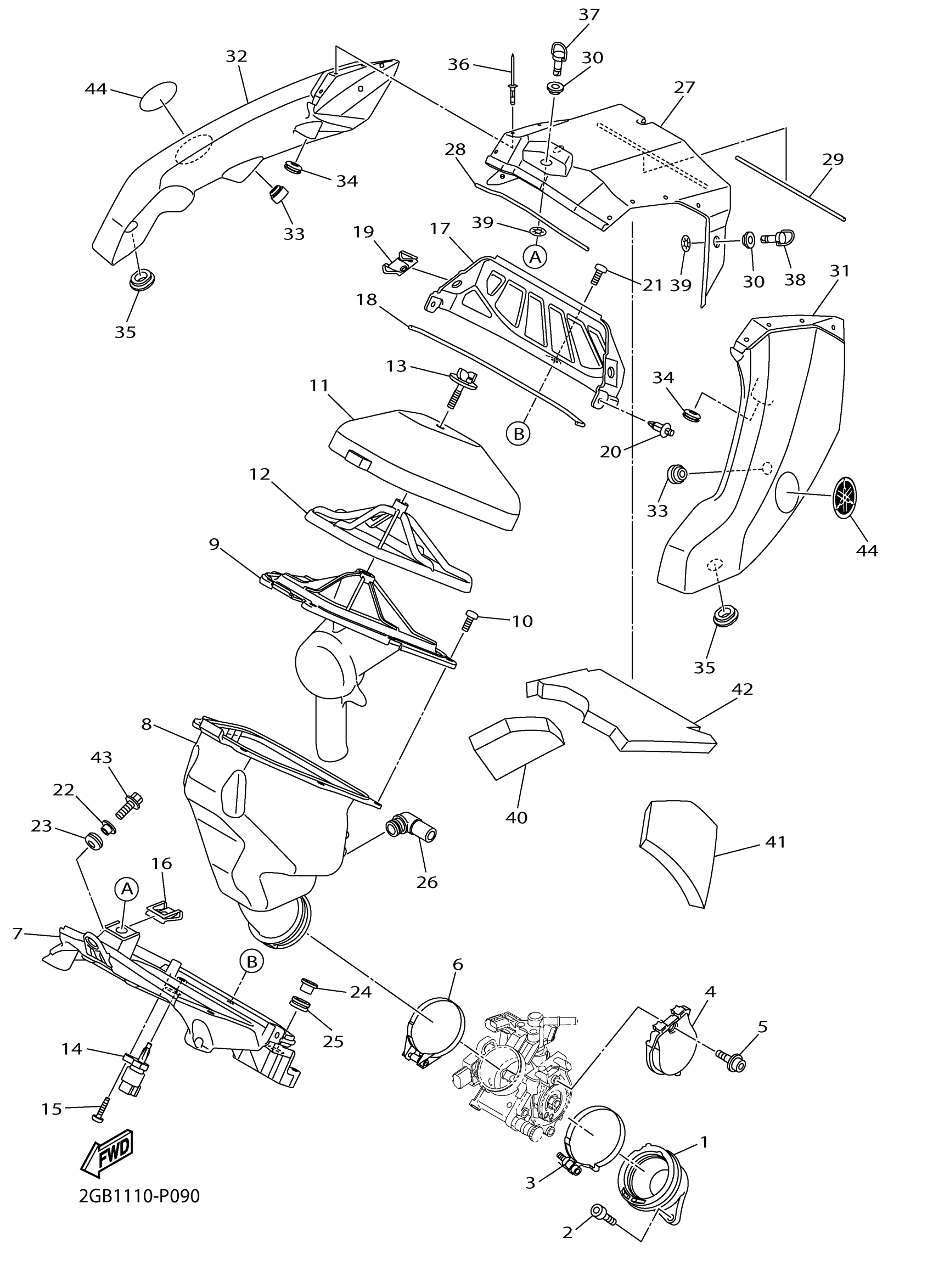

2017 Yamaha WR250F (WR250FH) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

JOINT,CARB 3

1SM-13597-00-00

1
Out of stock

2

BOLT,SOCKET HEAD

91314-06020-00

1

$2.05

In stock

3

HOSE CLAMP ASSY

90450-60004-00

1

$14.64

In stock

4

COVER 1

1SL-14293-00-00

1
Out of stock

5

BOLT, HEXAGON SOCKET HEAD

90110-05066-00

1

$6.28

In stock

6

HOSE CLAMP ASSY

90450-58007-00

1
Out of stock

7

CASE, AIR CLEANER 1

1SL-14411-00-00

1
Out of stock

8

JOINT, AIR CLEANER

2GB-14453-00-00

1
Out of stock

9

HOLDER, GUIDE

2GB-14459-00-00

1
Out of stock

10

SCREW,PAN HEAD

98502-05014-00

1

$1.90

In stock

11

ELEMENT, AIR CLEANER

1SL-14451-01-00

1
Out of stock

12

GUIDE

1SL-14458-00-00

—
Out of stock

13

BOLT

1SL-14428-00-00

1
Out of stock

14

SENSOR, AIR TEMPERATURE

8FP-85886-00-00

1

$49.83

In stock

15

SCREW, PANHEAD TAPPING

97702-50520-00

1

$0.28

In stock

16

PLATE, SPRING

4XV-2177L-01-00

—

$6.20

In stock

17

CAP, CLEANER CASE 2

1SL-14422-00-00

—
Out of stock

18

SEAL

1SL-14462-00-00

—
Out of stock

19

PLATE, SPRING

4XV-2177L-01-00

—

$6.20

In stock

20

RIVET

90269-06008-00

—

$7.40

In stock

21

SCREW,PAN HEAD

98502-05014-00

1

$1.90

In stock

22

COLLAR(50M)

90387-087L0-00

—

$6.18

In stock

23

GROMMET (2T4)

90480-12237-00

—

$1.95

In stock

24

SPACER

1SL-14442-00-00

—
Out of stock

25

GROMMET

90480-01027-00

—

$1.91

In stock

26

PIPE

5TJ-14419-00-00

—

$7.57

In stock

27

CAP, CLEANER CASE 1

1SL-14412-01-00

—
Out of stock

28

SEAL

1SL-14452-00-00

—

$6.43

In stock

29

SEAL

1SL-14457-00-00

—

$6.43

In stock

30

COLLAR

90387-07045-00

—

$5.98

In stock

31

DUCT

1SL-14437-01-00

—
Out of stock

32

DUCT

1SL-1443A-01-00

—
Out of stock

33

GROMMET (8M6)

90480-11298-00

—
Out of stock

34

GROMMET (2T4)

90480-12237-00

—

$1.95

In stock

35

GROMMET(4DN)

90480-01558-00

—

$3.95

In stock

36

RIVET, BLIND

90267-41004-00

—
Out of stock

37

HEAD

3FV-28386-00-00

—

$22.96

In stock

38

HEAD

1SL-28386-00-00

—

$22.96

In stock

39

WASHER, SPECIAL 1

5TJ-21757-00-00

—

$6.43

In stock

40

DAMPER 1

2GB-14425-00-00

—
Out of stock

41

DAMPER 2

2GB-14426-00-00

—
Out of stock

42

DAMPER 3

2GB-1442G-00-00

—
Out of stock

43

BOLT, FLANGE

90105-06203-00

—

$1.82

In stock

44

Tuning Fork Mark

1SL-2175C-01-00

—
Out of stock
