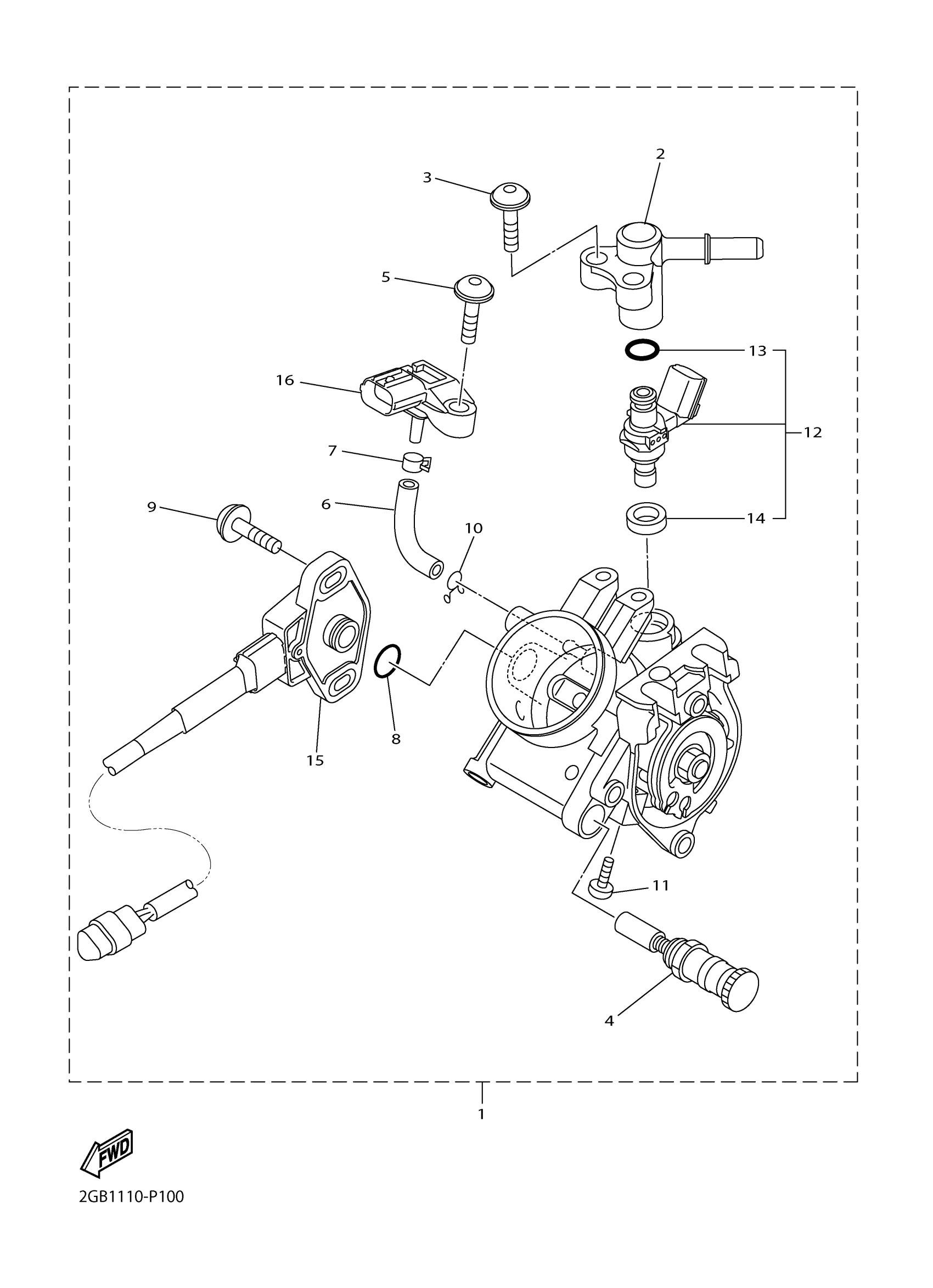

Find the part on the Intake 2 diagram for your 2017 Yamaha WR250F (WR250FH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2017 Yamaha WR250F (WR250FH) Intake 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

THROTTLE BODY ASSY

2GB-13750-00-00

—
Out of stock

2

PIPE

1SM-13938-00-00

1
Out of stock

3

SCREW, ROD

33D-14486-00-00

1
Out of stock

4

PLUNGER, STARTER

1SL-14171-01-00

1
Out of stock

5

SCREW, PAN HEAD

33D-14325-00-00

—
Out of stock

6

PIPE 1

33D-14348-00-00

1
Out of stock

7

CLIP

33D-13577-00-00

1
Out of stock

8

O-RING

1DX-14562-00-00

1
Out of stock

9

SCREW

1DX-14216-00-00

1

$5.17

In stock

10

CLIP

3TJ-14137-40-00

1

$6.43

In stock

11

SCREW

2GB-14591-00-00

—
Out of stock

12

INJECTOR

1SM-13761-01-00

1
Out of stock

13

O-RING

1SM-14147-00-00

1
Out of stock

14

SEAL RING

1SM-141A1-00-00

1
Out of stock

15

THROTTLE SENSOR ASSY

1SL-85885-03-00

—
Out of stock

16

SENSOR, PRESSURE

1WS-82380-00-00

—
Out of stock
