2017 Yamaha WR250F (WR250FH) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 2017 Yamaha WR250F (WR250FH), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

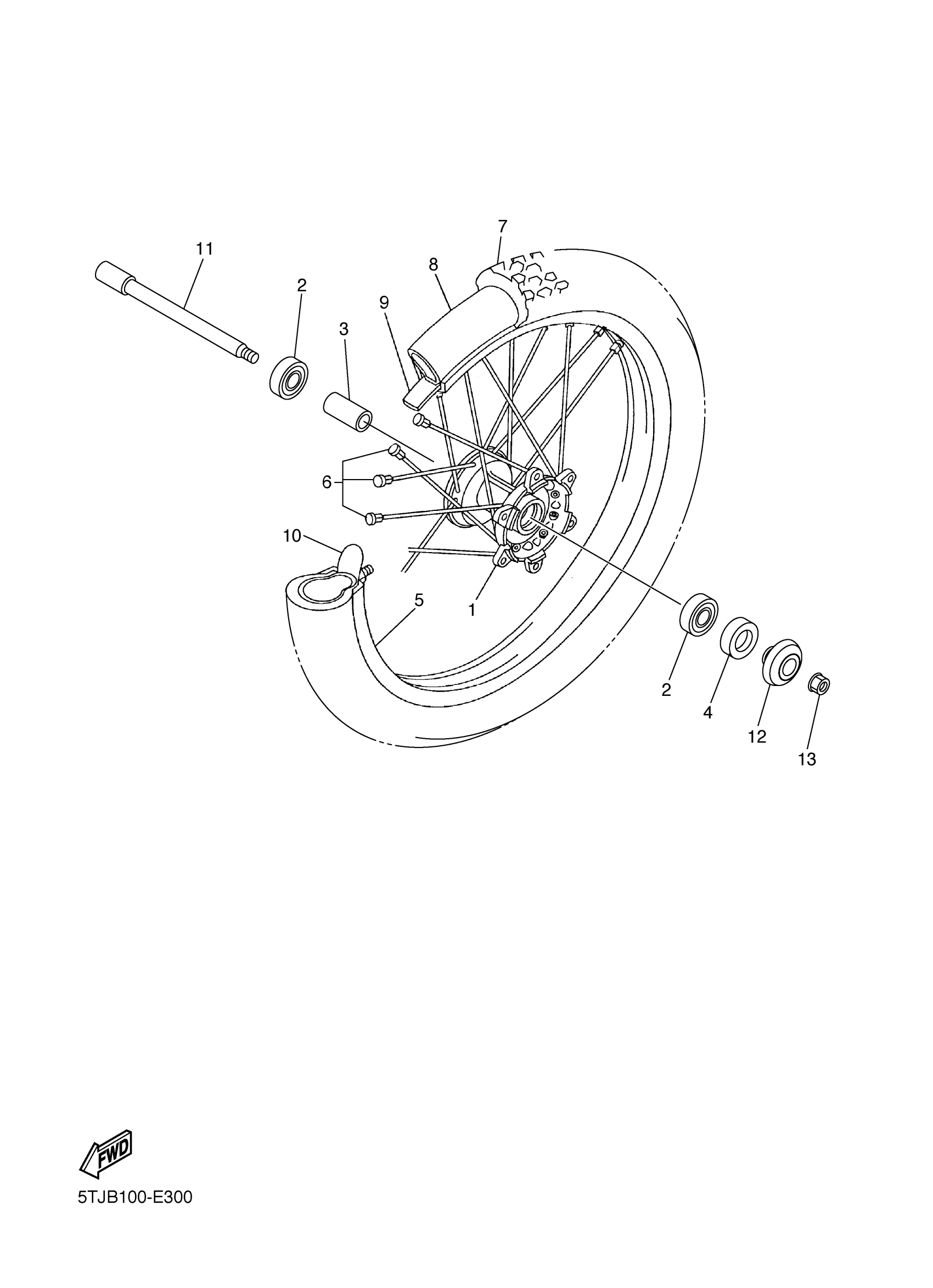

2017 Yamaha WR250F (WR250FH) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

5NG-25111-50-00

—
Out of stock

2

BEARING

93306-90409-00

1
Out of stock

3

SPACER, BEARING

5NY-25117-00-00

1
Out of stock

4

OIL SEAL

93102-26468-00

1
Out of stock

5

RIM (1.60-21)

94416-21056-00

—
Out of stock

6

SPOKE SET, FRONT

5NY-25104-00-00

1
Out of stock

7

TIRE (80/100-21 51M MX51FA)

94108-21034-00

1
Out of stock

8

TUBE, FRONT (2A6)

94227-21123-00

1
Out of stock

9

BAND, RIM (2A6)

94330-21084-00

1
Out of stock

10

SPACER, BEAD

5SF-25394-00-00

1
Out of stock

11

AXLE, WHEEL

2GB-25181-00-00

—
Out of stock

12

COLLAR

5TJ-2510C-80-00

1
Out of stock

13

NUT

90179-16011-00

1
Out of stock
