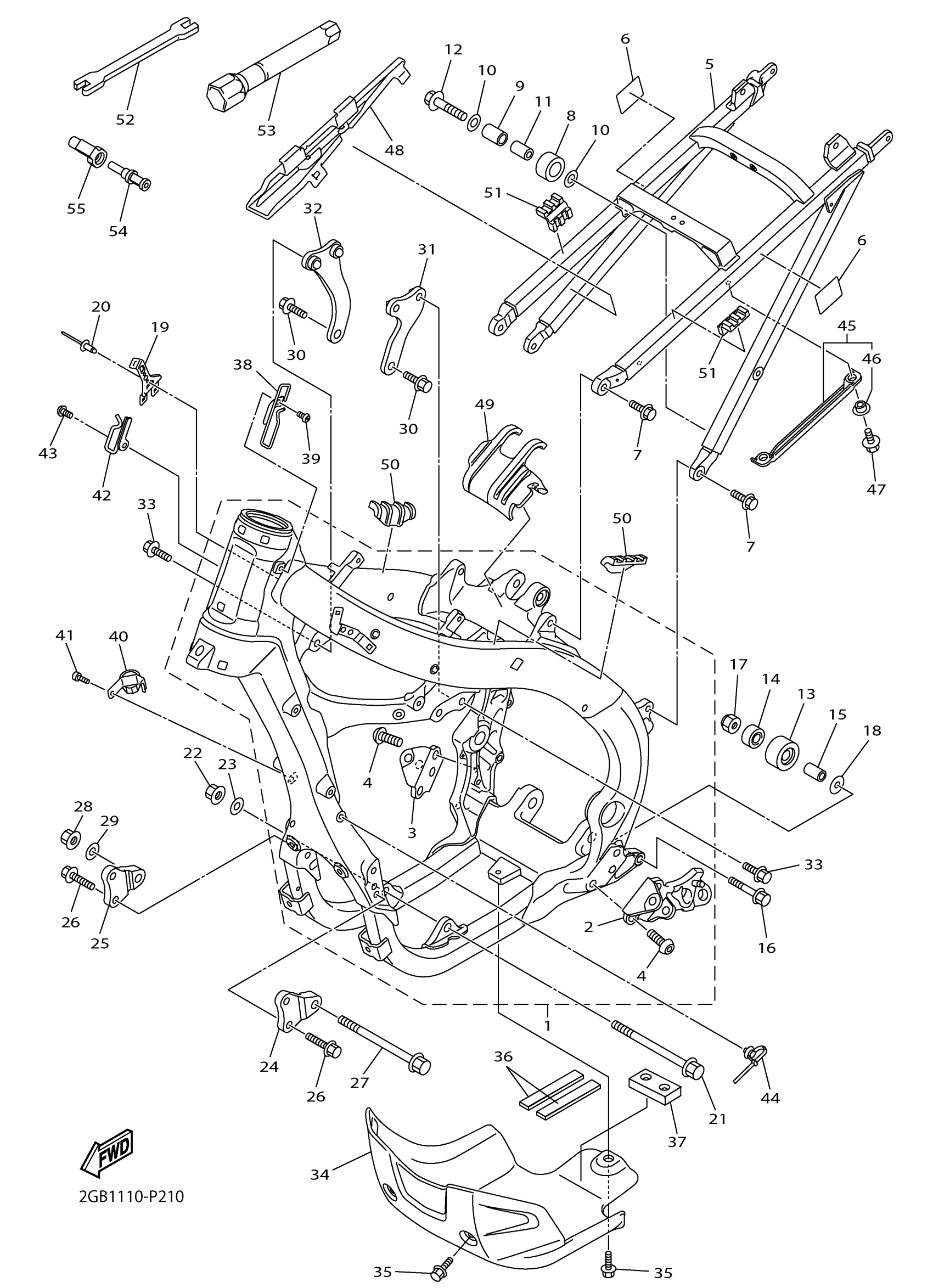

Yamaha WR250FH (WR250F) 2GBB 2017 FRAME Diagram

#

Description
Price

1

FRONT FRAME COMP.

2GB-21101-01-00

Unavailable

2

BRACKET, FOOTREST

2GB-21447-00-00

$140.99

3

BRACKET, FOOTREST

17D-21448-00-00

$37.99

4

SCREW

90149-10033-00

$5.60

5

REAR FRAME COMP.

1SL-21190-10-00

$490.99

6

PROTECTOR

33D-23472-00-00

$5.49

7

BOLT, FLANGE

90105-08230-00

$4.29

8

TENSIONER

30X-22178-00-00

$35.99

9

BUSH

4V4-22184-00-00

$4.47

10

WASHER, PLATE

90201-08045-00

$5.60

11

COLLAR

90387-08041-00

$8.49

12

BOLT, FLANGE(4KG)

95024-08040-00

$8.49

13

TENSIONER

3JD-22178-20-00

$43.99

14

BEARING (3X3)

93300-60804-00

$12.49

15

COLLAR(1NL)

90387-086N4-00

$9.49

16

BOLT, FLANGE

90105-08133-00

Unavailable

17

NUT, U

95617-08100-00

Unavailable

18

WASHER, PLATE

90201-08043-00

Unavailable

19

BRACKET, BATTERY B

2GB-21149-00-00

Unavailable

20

RIVET, BLIND (2YK)

90267-32146-00

Unavailable

21

BOLT, FLANGE

90105-10176-00

Unavailable

22

NUT(4KG)

90179-10658-00

Unavailable

23

WASHER, PLATE

90201-10045-00

Unavailable

24

BRACKET, FRONT LOW

2GB-21417-00-00

Unavailable

25

BRACKET, FRONT LOW

2GB-21418-00-00

Unavailable

26

BOLT, FLANGE

90105-08143-00

Unavailable

27

BOLT, FLANGE

90105-10448-00

Unavailable

28

NUT(4KG)

90179-10658-00

Unavailable

29

WASHER, PLATE

90201-10025-00

Unavailable

30

BOLT, FLANGE

90105-10189-00

Unavailable

31

BRACKET, REAR UPPE

2GB-21425-00-00

Unavailable

32

BRACKET, REAR UPPE

2GB-21426-00-00

Unavailable

33

BOLT, FLANGE

90105-08143-00

Unavailable

34

GUARD, ENGINE 1

1DX-2147A-01-00

Unavailable

35

BOLT, WITH WASHER

90119-06166-00

Unavailable

36

DAMPER, PLATE

90520-04011-00

Unavailable

37

DAMPER, RUBBER 1

1DX-21485-01-00

Unavailable

38

HOLDER, CLUTCH CAB

1SL-21163-01-00

Unavailable

39

BOLT, BUTTON HEAD

92012-06010-00

Unavailable

40

CLAMP, WIRE HARNES

1SM-21335-01-00

Unavailable

41

BOLT

91312-05008-00

Unavailable

42

HOLDER, CLUTCH CAB

2GB-21163-00-00

Unavailable

43

BOLT, BUTTON HEAD

92012-06010-00

Unavailable

44

CLAMP

90464-31002-00

Unavailable

45

COVER, SIDE 5

1SL-2171E-00-00

Unavailable

46

COLLAR

90387-065T2-00

Unavailable

47

BOLT, FLANGE

95022-06016-00

Unavailable

48

COVER, SIDE 6

2GB-2171X-00-00

Unavailable

49

DAMPER, LOCATING 1

2GB-24181-00-00

Unavailable

50

DAMPER, LOCATING 2

33D-24182-00-00

Unavailable

51

DAMPER, LOCATING 3

33D-24183-00-00

Unavailable

52

WRENCH, HEXAGON

5ET-28166-10-00

Unavailable

53

BOX, SPARK PLUG

17D-2814F-00-00

Unavailable

54

CAP

18P-2467E-00-00

Unavailable

55

CASE, CAP

18P-2464V-01-00

Unavailable
