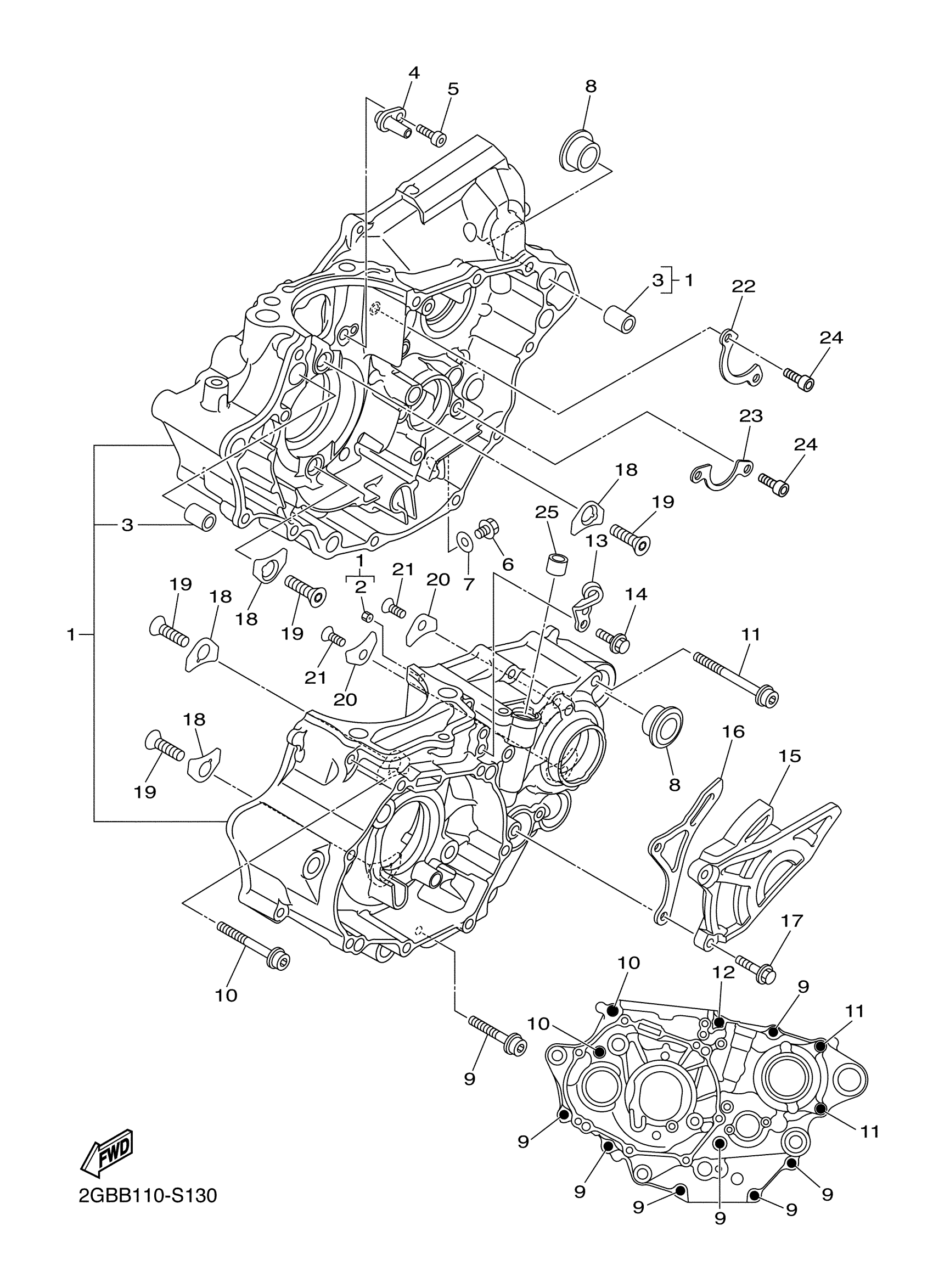

Yamaha WR250FH (WR250F) 2GBB 2017 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSY

1SM-15100-29-00

$1,409.99

2

NOZZLE 1

1SM-15138-00-00

$7.99

3

PIN, DOWEL

99530-14016-00

$3.80

4

NOZZLE 3

1SM-15155-00-00

$37.99

5

BOLT(47X)

91312-05012-00

$4.29

6

BOLT, FLANGE

95022-10016-00

$8.49

7

GASKET

90430-10188-00

$6.99

8

COLLAR

90387-17015-00

$25.99

9

BOLT, HEXAGON SOCKET HEAD

90110-06391-00

$2.12

10

BOLT, HEXAGON SOCKET HEAD

90110-06363-00

$3.35

11

BOLT, HEXAGON SOCKET HEAD

90110-06392-00

$3.76

12

BOLT, SOCKET

91317-06075-00

$5.60

13

HOLDER, CLUTCH CABLE

1SL-15441-00-00

$12.99

14

BOLT, FLANGE

90105-06100-00

$7.49

15

COVER, CRANKCASE 2

1SL-15421-00-00

$16.49

16

GUIDE, CHAIN

1SL-17466-00-00

Unavailable

17

BOLT, FLANGE

90105-06189-00

Unavailable

18

PLATE, BEARING COVER

18P-15383-00-00

Unavailable

19

SCREW, COUNTERSUNK

90151-08008-00

Unavailable

20

PLATE, BEARING COVER

4JT-15381-01-00

Unavailable

21

SCREW, COUNTERSUNK

90151-06052-00

Unavailable

22

PLATE, BEARING COVER

1SM-15388-00-00

Unavailable

23

PLATE, STOPPER 2

1SL-18562-00-00

Unavailable

24

BOLT,SOCKET

91317-06012-00

Unavailable

25

BUSH, BIMETAL FORMED

90384-06003-00

Unavailable
