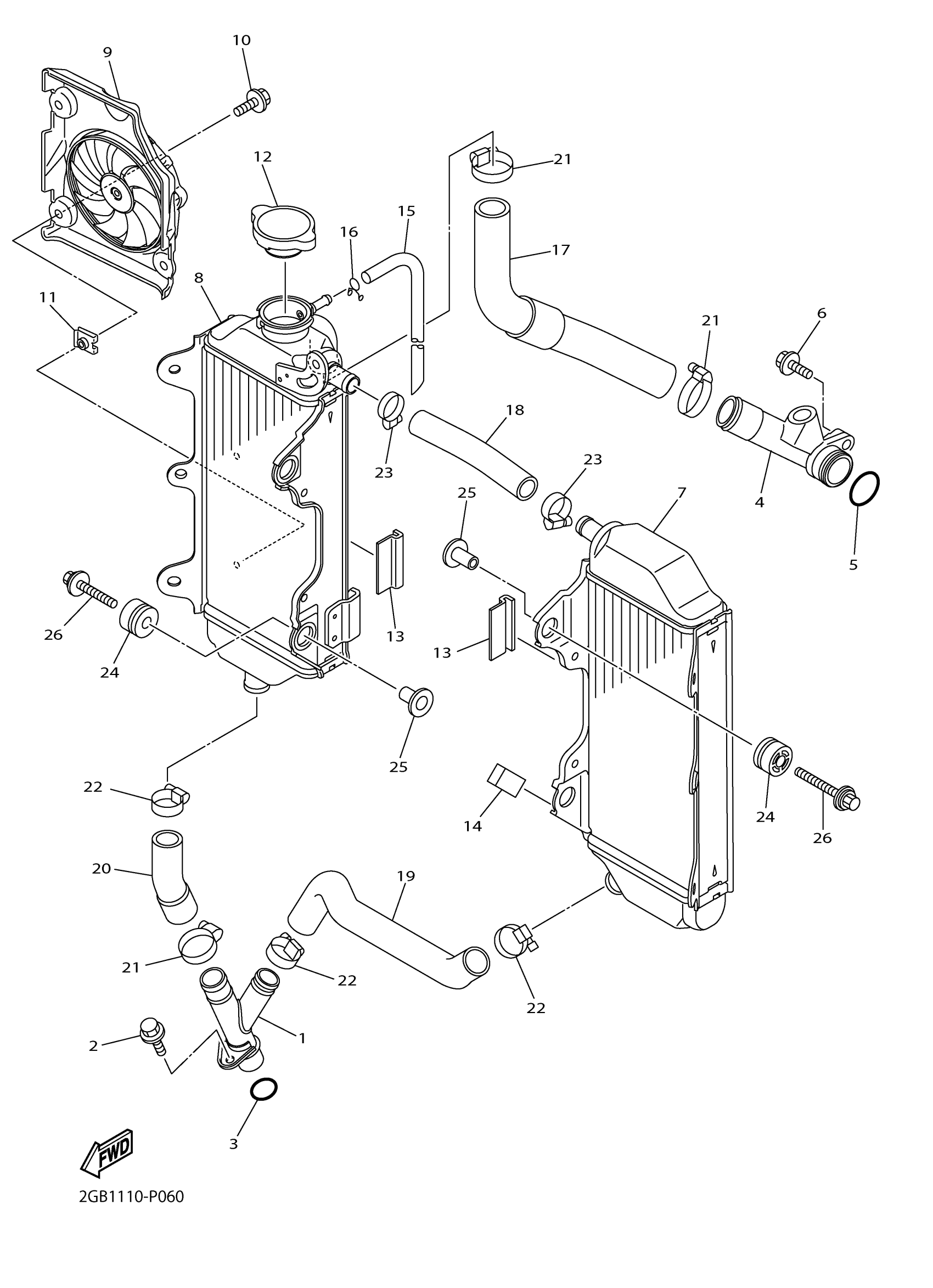

Yamaha WR250FG (WR250F) 2GB6 2016 RADIATOR HOSE Diagram

#

Description
Price

1

PIPE 2

1SL-12482-00-00

$64.99

2

BOLT, FLANGE

95022-06012-00

$3.29

3

O-RING (5U8)

93210-16500-00

$7.49

4

JOINT

1SM-12446-00-00

$39.99

5

. O-RING

93210-16275-00

Unavailable

6

BOLT, FLANGE

95022-06020-00

$3.62

7

RADIATOR ASSY

1SL-1240A-00-00

$325.99

8

RADIATOR COMP

2GB-12461-00-00

Unavailable

9

BLOWER ASSY

2GB-12405-00-00

Unavailable

10

BOLT

2GB-12615-00-00

$2.81

11

NUT 1

5SL-12671-00-00

$6.99

12

CAP, RADIATOR

5SL-12462-01-00

$29.99

13

DAMPER, RADIATOR

33D-12465-00-00

$14.49

14

DAMPER

5YT-24665-00-00

$7.99

15

TUBE, FLEXIBLE VINYL(8AK)

91A20-05080-00

$14.99

16

CLIP

90467-090A2-00

Unavailable

17

HOSE 1

2GB-12576-00-00

Unavailable

18

HOSE 2

1SL-12577-00-00

Unavailable

19

HOSE 3

2GB-12578-01-00

Unavailable

20

HOSE 4

2GB-12579-00-00

Unavailable

21

HOSE CLAMP ASSY

90450-28001-00

Unavailable

22

HOSE CLAMP ASSY(64X)

90450-22M14-00

Unavailable

23

HOSE CLAMP ASSY

90450-18M09-00

Unavailable

24

GROMMET

90480-15012-00

Unavailable

25

COLLAR

90387-06065-00

Unavailable

26

BOLT, WITH WASHER

90119-06262-00

Unavailable
