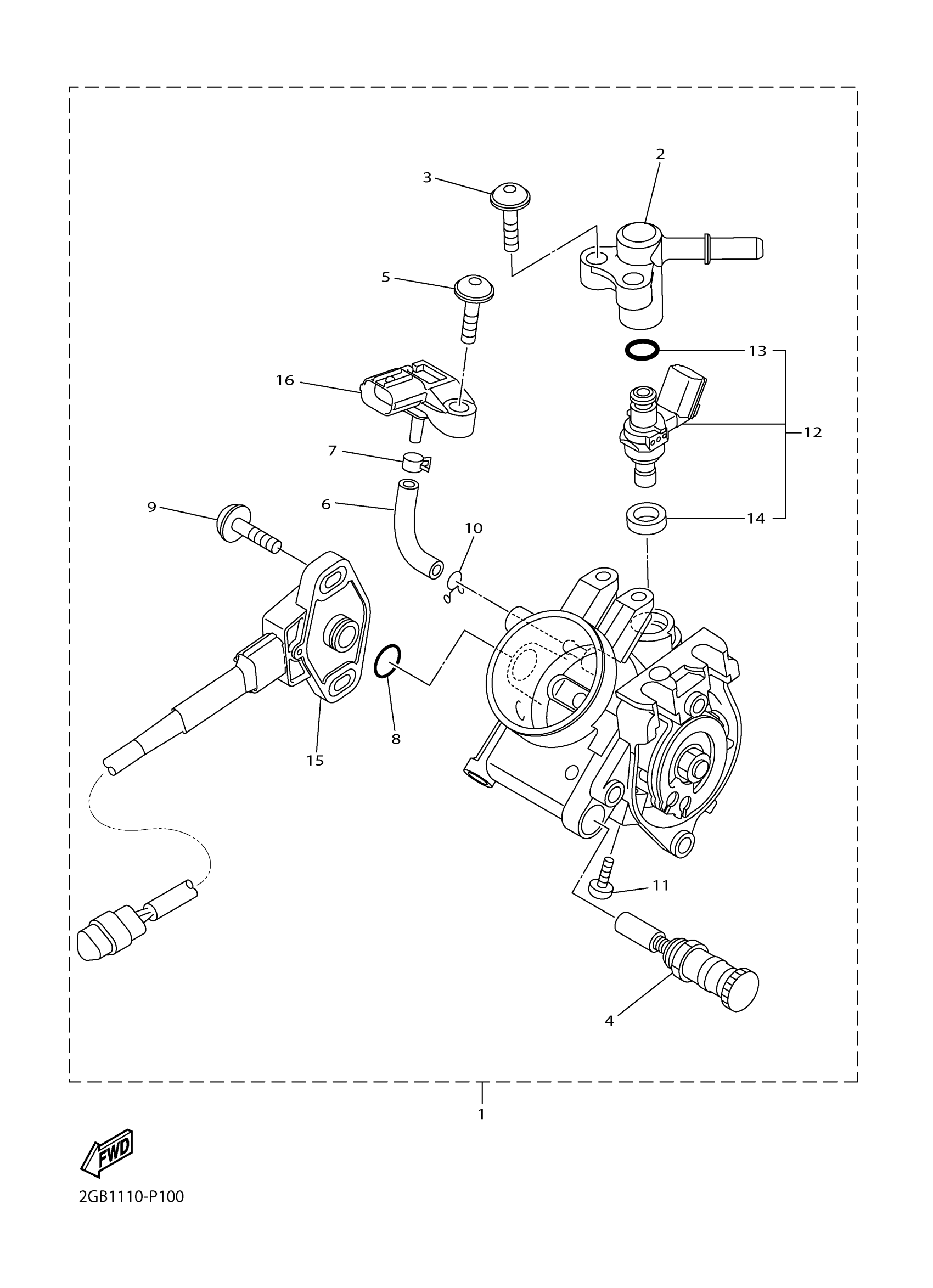

Yamaha WR250FG (WR250F) 2GB6 2016 INTAKE 2 Diagram

#

Description
Price

1

THROTTLE BODY ASSY

2GB-13750-00-00

Unavailable

2

PIPE

1SM-13938-00-00

$64.48

3

SCREW, ROD

33D-14486-00-00

$11.09

4

PLUNGER, STARTER

1SL-14171-01-00

Unavailable

5

SCREW, PAN HEAD

33D-14325-00-00

Unavailable

6

PIPE 1

33D-14348-00-00

$11.80

7

CLIP

33D-13577-00-00

$4.73

8

O-RING

1DX-14562-00-00

$5.59

9

SCREW

1DX-14216-00-00

$5.09

10

CLIP

3TJ-14137-40-00

$5.99

11

SCREW

2GB-14591-00-00

Unavailable

12

INJECTOR

1SM-13761-01-00

Unavailable

13

O-RING

1SM-14147-00-00

$4.44

14

SEAL RING

1SM-141A1-00-00

$8.67

15

THROTTLE SENSOR ASSY

1SL-85885-03-00

Unavailable

16

SENSOR, PRESSURE

1WS-82380-00-00

Unavailable
