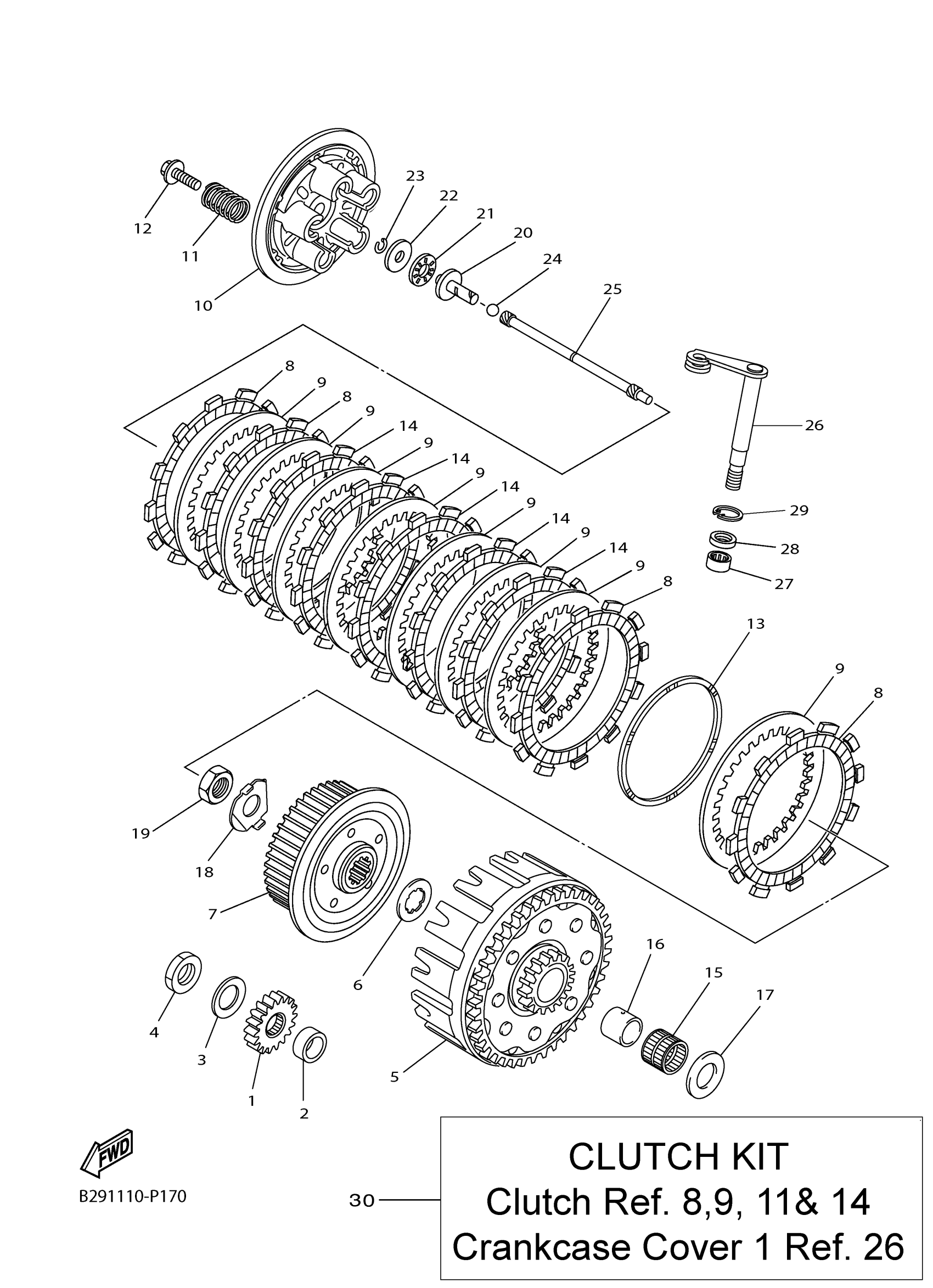

Yamaha WR250FG (WR250F) 2GB6 2016 CLUTCH Diagram

#

Description
Price

1

GEAR, PRIMARY DRIVE

1SM-16111-00-00

Unavailable

2

COLLAR

90387-19008-00

Unavailable

3

WASHER (517 CLUTCH)

90208-16019-00

$5.75

4

NUT

90170-16003-00

$2.86

5

PRIMARY DRIVEN GEAR COMP.

1SM-16150-00-00

$446.76

6

PLATE, THRUST 1

1SM-16154-00-00

$6.02

7

BOSS, CLUTCH

2GB-16371-00-00

$124.45

8

PLATE, FRICTION

5XC-16321-00-00

$12.59

9

PLATE, CLUTCH 2

5NL-16325-20-00

Unavailable

10

PLATE, PRESSURE 1

1SM-16351-00-00

$62.91

11

SPRING, COMPRESSIO

90501-220A4-00

$5.27

12

SCREW, WITH WASHER

90159-06029-00

$7.03

13

SPRING.,CUSHION

1SM-16383-00-00

$12.76

14

PLATE, FRICTION

2GB-16321-00-00

$14.14

15

BEARING, CYLINDRICAL(51Y)

93310-225N0-00

$37.04

16

SPACER 1

1SM-16181-00-00

Unavailable

17

WASHER, PLATE(1HX)

90201-204K8-00

Unavailable

18

WASHER, LOCK(4KB)

90215-16289-00

Unavailable

19

NUT, HEXAGON (30X)

90170-16326-00

Unavailable

20

ROD, PUSH 1

1SM-16356-00-00

Unavailable

21

BEARING, THRUST(3AY)

93340-21008-00

Unavailable

22

WASHER, PLATE (24Y)

90201-080H1-00

Unavailable

23

CIRCLIP

93440-07182-00

Unavailable

24

BALL (498)

93511-32027-00

Unavailable

25

ROD, PUSH 2

1SM-16357-00-00

Unavailable

26

PUSH LEVER COMP.

2GB-16381-00-00

Unavailable

27

BEARING

93317-11096-00

Unavailable

28

OIL SEAL

93102-10008-00

Unavailable

29

CIRCLIP

99009-18500-00

Unavailable

30

CLUTCH PLATE KIT

2GB-W001G-00-00

Unavailable
