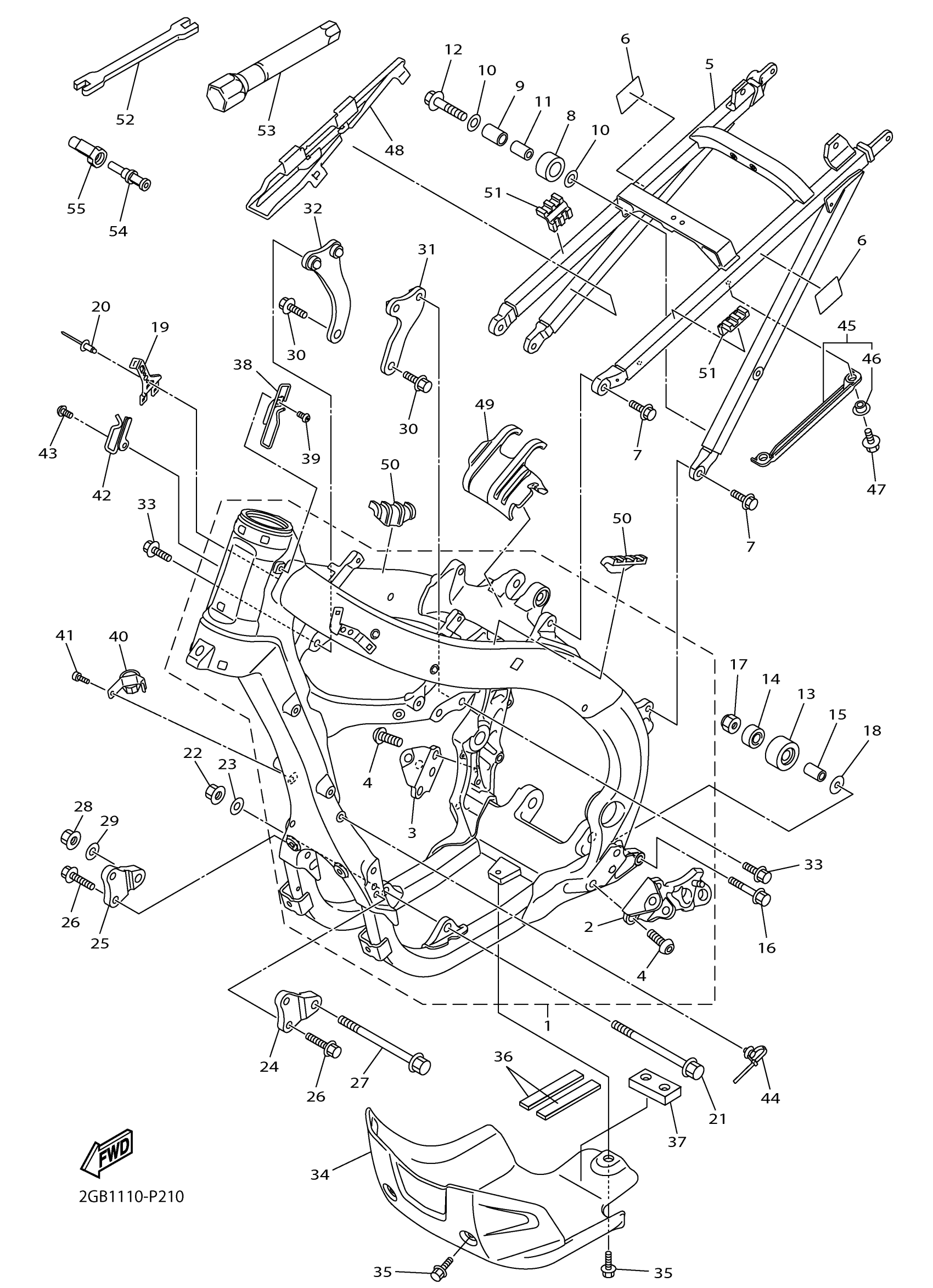

2016 Yamaha WR250F (WR250FG) Frame Diagram
Find the part on the Frame diagram for your 2016 Yamaha WR250F (WR250FG), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
2
BRACKET, FOOTREST
2GB-21447-00-00
5
REAR FRAME COMP.
1SL-21190-10-00
8
TENSIONER
30X-22178-00-00
16
BOLT, FLANGE
90105-08133-00
19
BRACKET, BATTERY B
2GB-21149-00-00
24
BRACKET, FRONT LOW
2GB-21417-00-00
25
BRACKET, FRONT LOW
2GB-21418-00-00
27
BOLT, FLANGE
90105-10448-00
31
BRACKET, REAR UPPE
2GB-21425-00-00
32
BRACKET, REAR UPPE
2GB-21426-00-00
34
GUARD, ENGINE 1
1DX-2147A-01-00
36
DAMPER, PLATE
90520-04011-00
37
DAMPER, RUBBER 1
1DX-21485-01-00
40
CLAMP, WIRE HARNES
1SM-21335-01-00
42
HOLDER, CLUTCH CAB
2GB-21163-00-00
45
COVER, SIDE 5
1SL-2171E-00-00
46
COLLAR
90387-065T2-00
48
COVER, SIDE 6
2GB-2171X-00-00
49
DAMPER, LOCATING 1
2GB-24181-00-00
50
DAMPER, LOCATING 2
33D-24182-00-00
51
DAMPER, LOCATING 3
33D-24183-00-00
53
BOX, SPARK PLUG
17D-2814F-00-00
