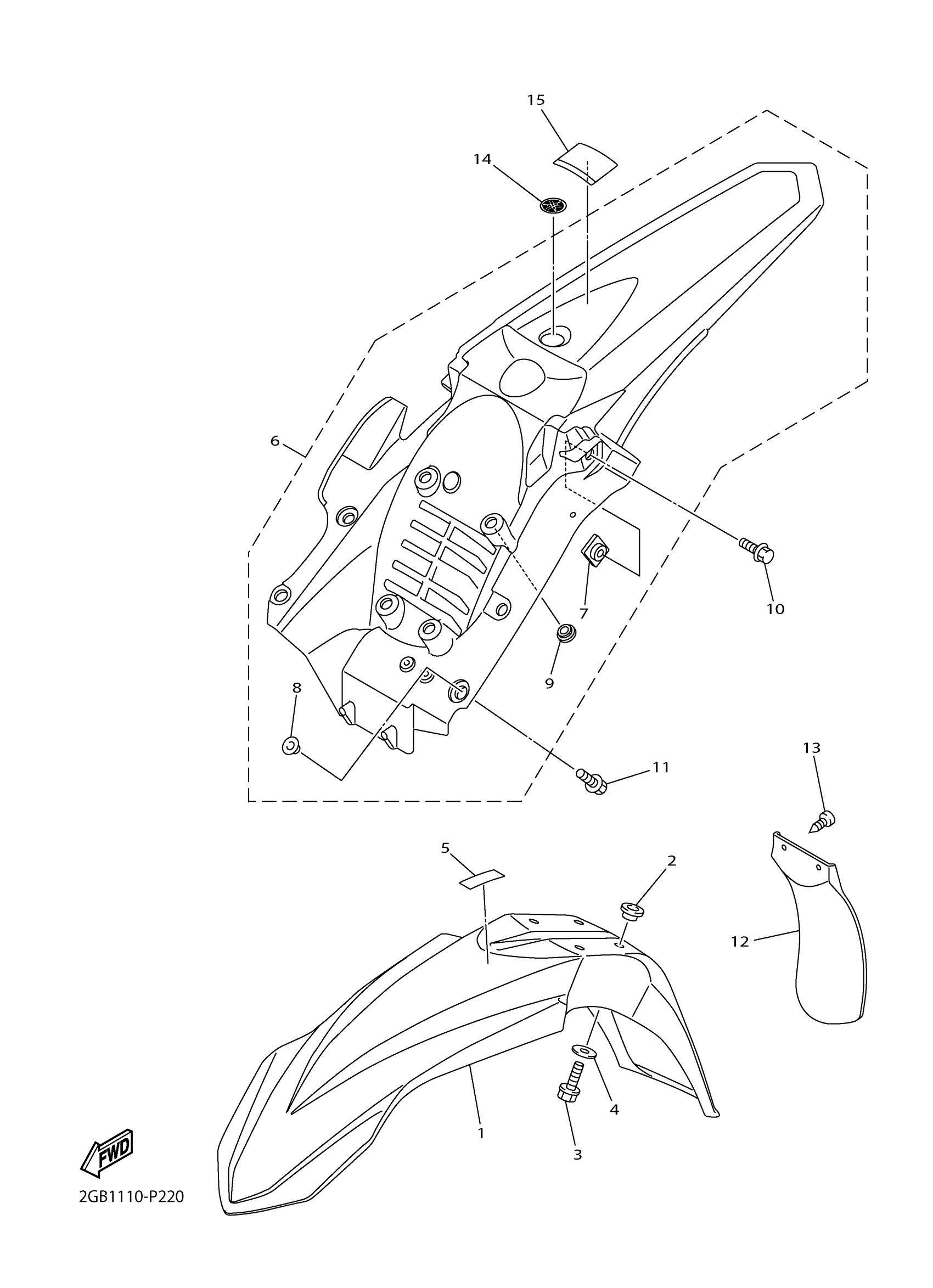

Yamaha WR250FG (WR250F) 2GB6 2016 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

17D-21511-50-00

$25.93

2

COLLAR

90387-06259-00

$5.76

3

BOLT, FLANGE

90105-06127-00

$5.75

4

WASHER, PLATE

90201-06108-00

$3.52

5

LABEL, CAUTION

3FB-2415E-02-00

$3.90

6

REAR FENDER COMP.

2GB-21610-01-00

$50.01

7

NUT, REAR FENDER

5XE-21635-10-00

$11.84

8

COLLAR

5BE-21749-00-00

$4.48

9

COLLAR

90387-08086-00

$5.05

10

BOLT, FLANGE

90105-06100-00

$5.20

11

BOLT, WITH WASHER

90119-06268-00

$1.93

12

GUARD, FLAP

3D7-21642-00-00

$22.84

13

SCREW, TAPPING

97702-60016-00

$1.15

14

TUNING FORK MARK

5FK-2175C-31-00

$3.38

15

LABEL, CAUTION

5PA-2118K-01-00

Unavailable
