2015 Yamaha WR250F (WR250FF) Meter Diagram

← All diagrams

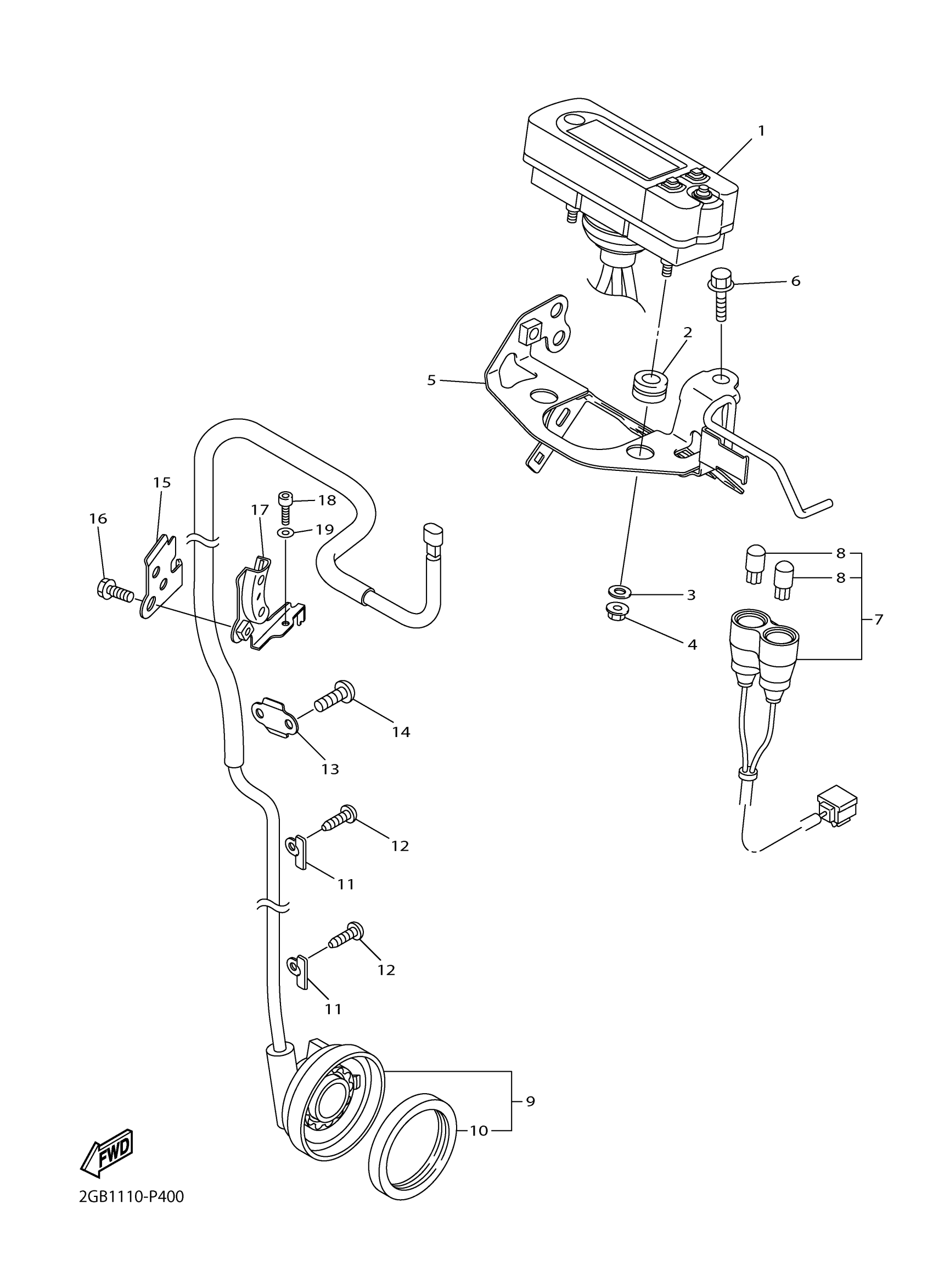

Find the part on the Meter diagram for your 2015 Yamaha WR250F (WR250FF), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2015 Yamaha WR250F (WR250FF) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

METER ASSY (MPH)

2GB-83500-20-00

—
Out of stock

2

GROMMET

90480-14012-00

—

$10.20

In stock

3

WASHER, PLATE

90201-05021-00

1

$1.65

In stock

4

NUT, FLANGE

95702-05500-00

1

$0.74

In stock

5

BRACKET, METER

2GB-83519-01-00

—
Out of stock

6

BOLT, FLANGE

90105-06170-00

1

$4.23

In stock

7

PILOT LIGHT ASSY

2GB-83530-00-00

—

$62.72

In stock

8

BULB (12V-1.7W)

3FV-83517-00-00

1

$6.30

In stock

9

SENSOR, SPEED

2GB-83755-00-00

1
Out of stock

10

SEAL,OIL

93105-47007-00

1
Out of stock

11

PLATE 2

5TJ-8375F-C0-00

1
Out of stock

12

SCREW, TAPPING

97702-40010-00

1

$2.46

In stock

13

PLATE 1

5TJ-8375E-C0-00

1
Out of stock

14

BOLT, BUTTON HEAD

92012-05008-00

1

$2.34

In stock

15

CLAMP

2GB-83595-00-00

1
Out of stock

16

BOLT, FLANGE

90105-06105-00

—

$6.32

In stock

17

BRACKET 1

2GB-23591-00-00

—
Out of stock

18

BOLT, BUTTON HEAD

92012-06012-00

—

$2.49

In stock

19

WASHER, PLAIN (646)

92990-06600-00

—

$2.48

In stock
