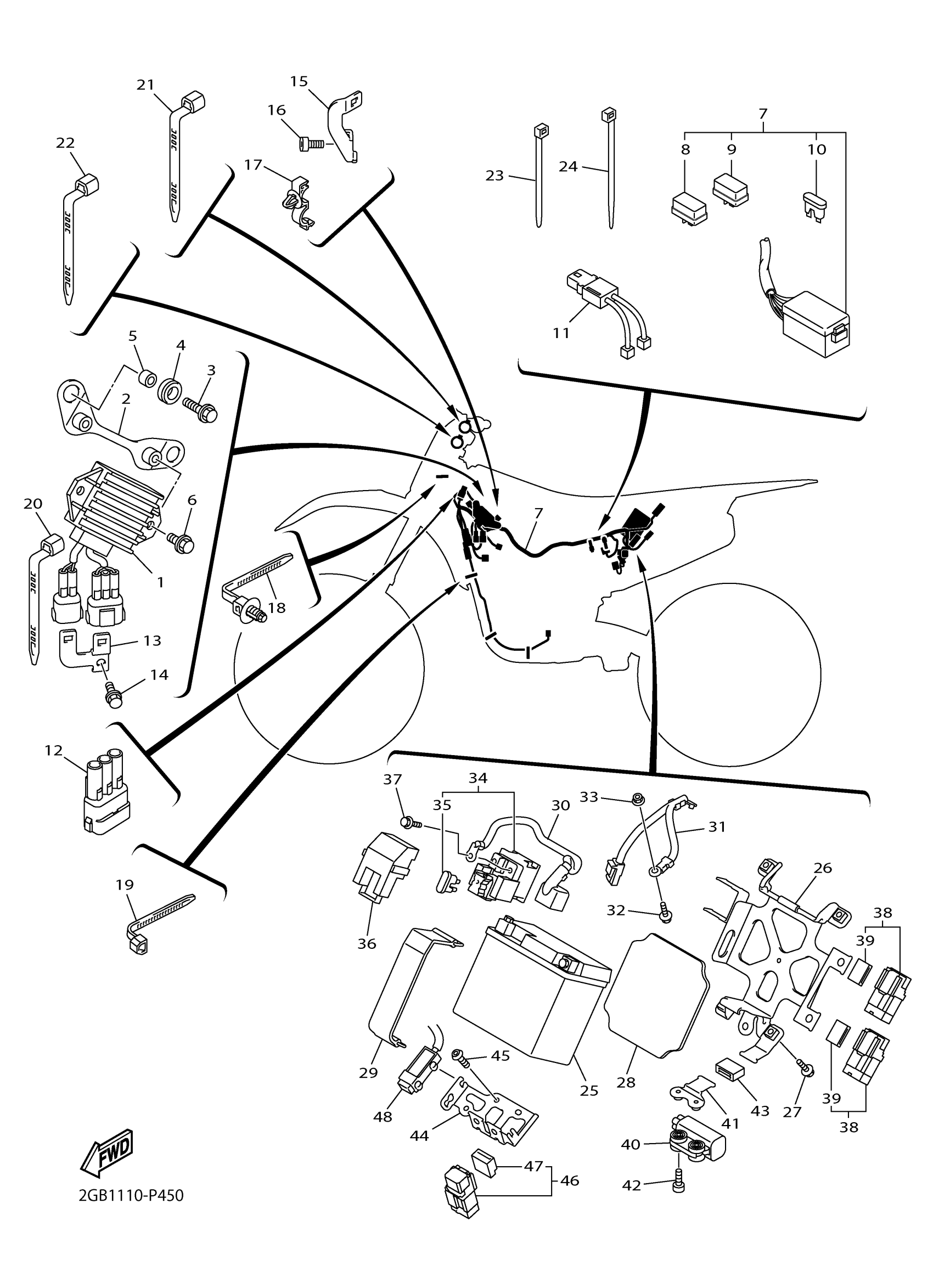

2015 Yamaha WR250F (WR250FF) Electrical 2 Diagram
Find the part on the Electrical 2 diagram for your 2015 Yamaha WR250F (WR250FF), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
Description
Qty in Assembly
Price
Status
Order Qty
1
RECTIFIER & REGULA
2GB-81960-00-00
1
Out of stock
2
BRACKET, REGULATOR
1SL-21287-00-00
—
Out of stock
7
WIRE HARNESS ASSY
2GB-82590-00-00
1
Out of stock
15
PLATE 2
1SL-82389-00-00
—
Out of stock
23
BAND
1UA-82591-00-00
—
Out of stock
24
BAND
1UA-82591-00-00
—
Out of stock
26
BRACKET, BATTERY
2GB-82128-00-00
—
Out of stock
41
BRACKET
2GB-85542-00-00
—
Out of stock
43
DAMPER
2GB-83513-00-00
—
Out of stock
44
PLATE, HOLDER
2GB-8252H-00-00
—
Out of stock
46
RELAY ASSY
1TP-81950-00-00
—
Out of stock
