Description

Price

1

FUEL TANK COMP.

2GB-24110-01-00

Unavailable

2

DAMPER, PLATE 2

1S4-2414J-00-00

$2.86

3

MOLD, FUEL TANK

1SL-24188-00-00

Unavailable

4

CAP ASSY

1SL-24610-01-00

$63.99

5

HOSE

90445-098B3-00

$12.49

6

STAY, FUEL TANK 1

1SL-24115-00-00

$22.99

7

BOLT, FLANGE

90105-06170-00

$4.72

8

COLLAR

90387-06091-00

$8.49

9

GROMMET(4AA)

90480-18549-00

$10.49

10

HOLDER

1SL-2419A-00-00

$5.49

11

BOLT, FLANGE

90105-06170-00

$4.72

12

COLLAR(4BH)

90387-066Y6-00

$9.49

13

GROMMET (4N0)

90480-10289-00

$8.49

14

BOLT, FLANGE

95022-06020-00

$3.62

15

FUEL PUMP COMP.

33D-13907-02-00

$536.99

16

O-RING

33D-24486-00-00

Unavailable

17

BRACKET, FUEL PUMP

33D-24491-00-00

Unavailable

18

BOLT, HEXAGON SOCKET HEAD

90110-05058-00

Unavailable

19

PIPE, FUEL 1

1SM-13971-03-00

Unavailable

20

CLAMP 1

33D-24135-00-00

Unavailable

21

BRACKET, SEAT

4EW-2412F-00-00

Unavailable

22

SCREW, FLAT

98707-06025-00

Unavailable

23

BOLT,HEX. SOCKET BUTTON

90111-06149-00

Unavailable

24

COLLAR

90387-06284-00

Unavailable

25

SENDER UNIT ASSY, FUEL METER

2GB-85752-01-00

Unavailable

26

COVER

1DX-24474-00-00

Unavailable

27

GASKET, SENDER UNIT

1DX-85753-00-00

Unavailable

28

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

29

SCREW

90149-06108-00

Unavailable

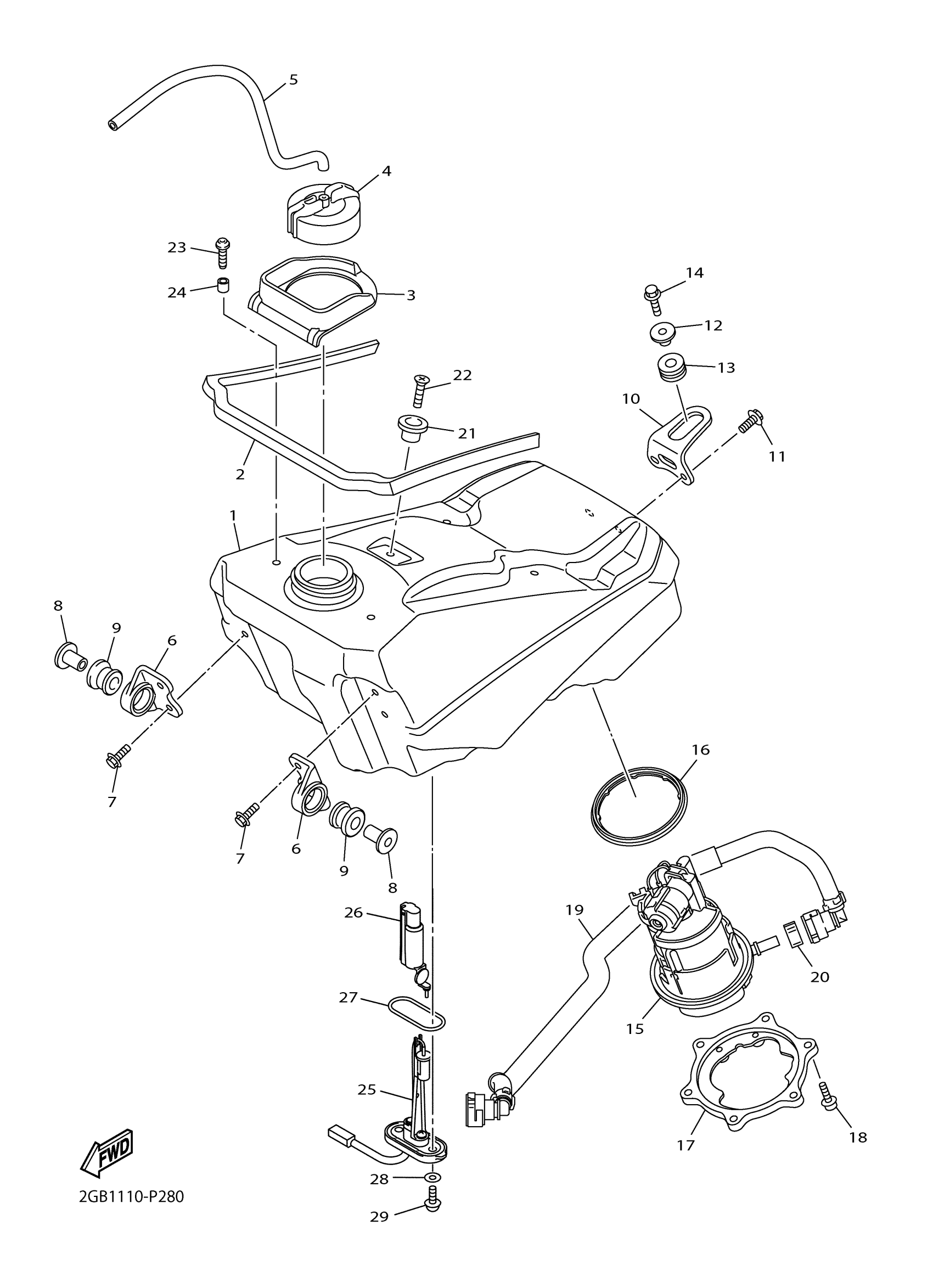

Yamaha WR250FF (WR250F) 2GB1 2015 FUEL TANK Diagram

FUEL TANK COMP.

DAMPER, PLATE 2

MOLD, FUEL TANK

CAP ASSY

HOSE

STAY, FUEL TANK 1

BOLT, FLANGE

COLLAR

GROMMET(4AA)

HOLDER

BOLT, FLANGE

COLLAR(4BH)

GROMMET (4N0)

BOLT, FLANGE

FUEL PUMP COMP.

O-RING

BRACKET, FUEL PUMP

BOLT, HEXAGON SOCKET HEAD

PIPE, FUEL 1

CLAMP 1

BRACKET, SEAT

SCREW, FLAT

BOLT,HEX. SOCKET BUTTON

COLLAR

SENDER UNIT ASSY, FUEL METER

COVER

GASKET, SENDER UNIT

WASHER, PLATE(3MB)

SCREW
