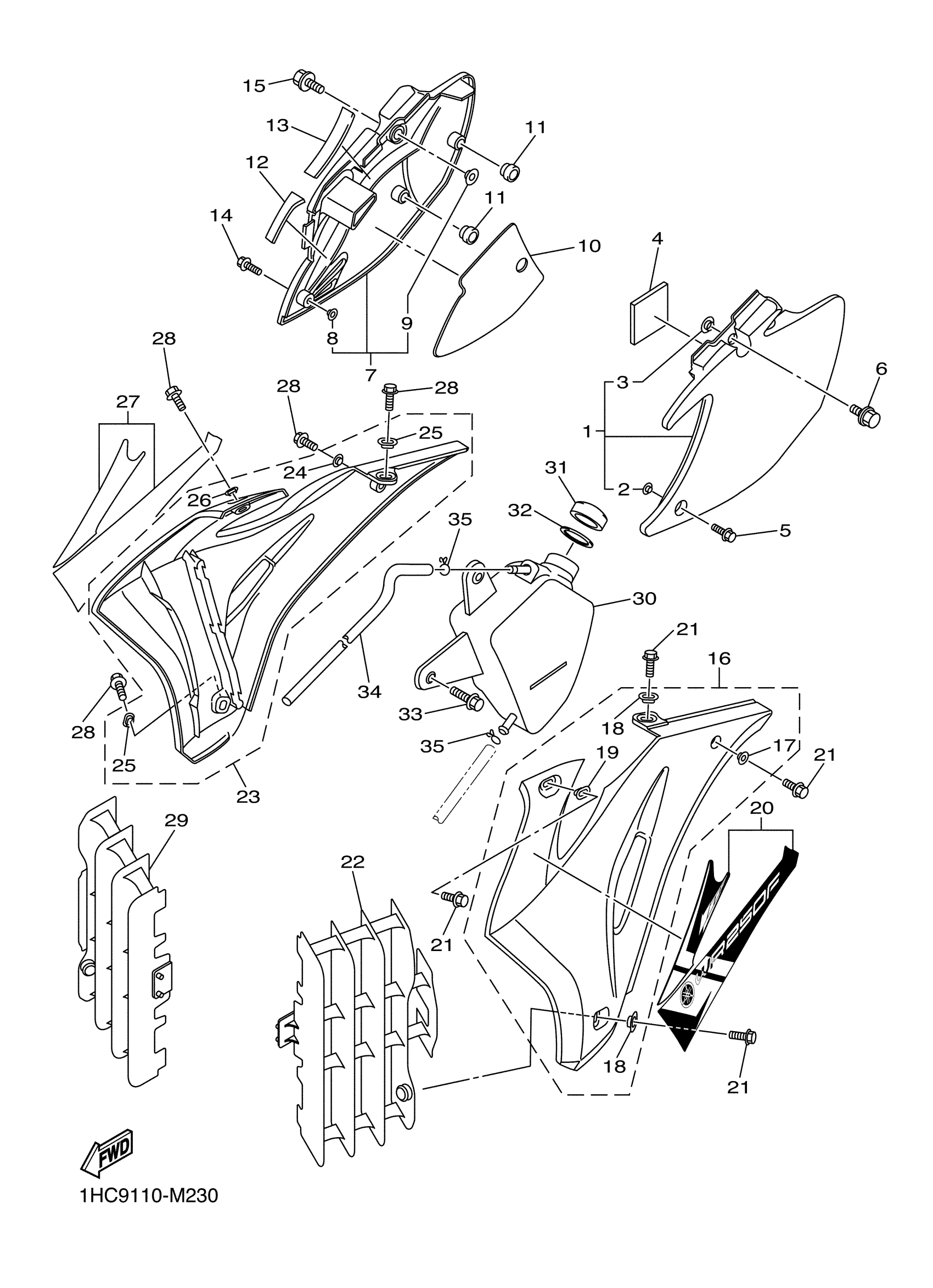

Yamaha WR250FD (WR250F) 1HC9 2013 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

5UM-21711-E0-00

$33.99

2

COLLAR

90387-06009-00

$10.49

3

COLLAR

5BE-21749-00-00

$6.99

4

DAMPER

5UM-21717-E0-00

$5.49

5

BOLT, FLANGE

90105-06103-00

$4.88

6

BOLT, WITH WASHER

90119-08095-00

$8.49

7

COVER, SIDE 2

5UM-21721-E0-00

Unavailable

8

COLLAR

90387-06009-00

$10.49

9

COLLAR

5BE-21749-00-00

$6.99

10

INSULATOR, SIDE COVER

5UM-2174A-E0-00

Unavailable

11

GROMMET

5XC-21719-90-00

$9.99

12

INSULATOR 3

5UM-2172S-E0-00

$4.42

13

INSULATOR 4

5UM-2173S-E0-00

$8.99

14

BOLT, FLANGE

90105-06103-00

$4.88

15

BOLT, WITH WASHER

90119-08095-00

$8.49

16

SIDE COVER ASSY 3

5UM-21730-E0-00

Unavailable

17

COLLAR

90387-06009-00

$10.49

18

COLLAR

5TA-21749-00-00

Unavailable

19

COLLAR

5XC-21749-90-00

Unavailable

20

GRAPHIC SET 1

1HC-2173L-00-00

Unavailable

21

BOLT, FLANGE

90105-06064-00

Unavailable

22

PANEL 1

2S2-2172A-70-00

Unavailable

23

SIDE COVER ASSY 4 (DEEP PURPLISH BLUE SOLID E)

5UM-21740-E0-00

Unavailable

24

COLLAR

90387-06009-00

$10.49

25

COLLAR

5TA-21749-00-00

Unavailable

26

COLLAR

5XC-21749-90-00

Unavailable

27

GRAPHIC SET 2

1HC-2174L-00-00

Unavailable

28

BOLT, FLANGE

90105-06064-00

Unavailable

29

PANEL 1

2S2-2172A-80-00

Unavailable

30

TANK ASSY

5UM-21860-E0-00

Unavailable

31

CAP

26H-21875-00-00

Unavailable

32

GASKET

26H-21874-00-00

Unavailable

33

BOLT, WITH WASHER

90119-06146-00

Unavailable

34

HOSE 6

5UM-1244J-E0-00

Unavailable

35

CLIP

90467-090A2-00

Unavailable
