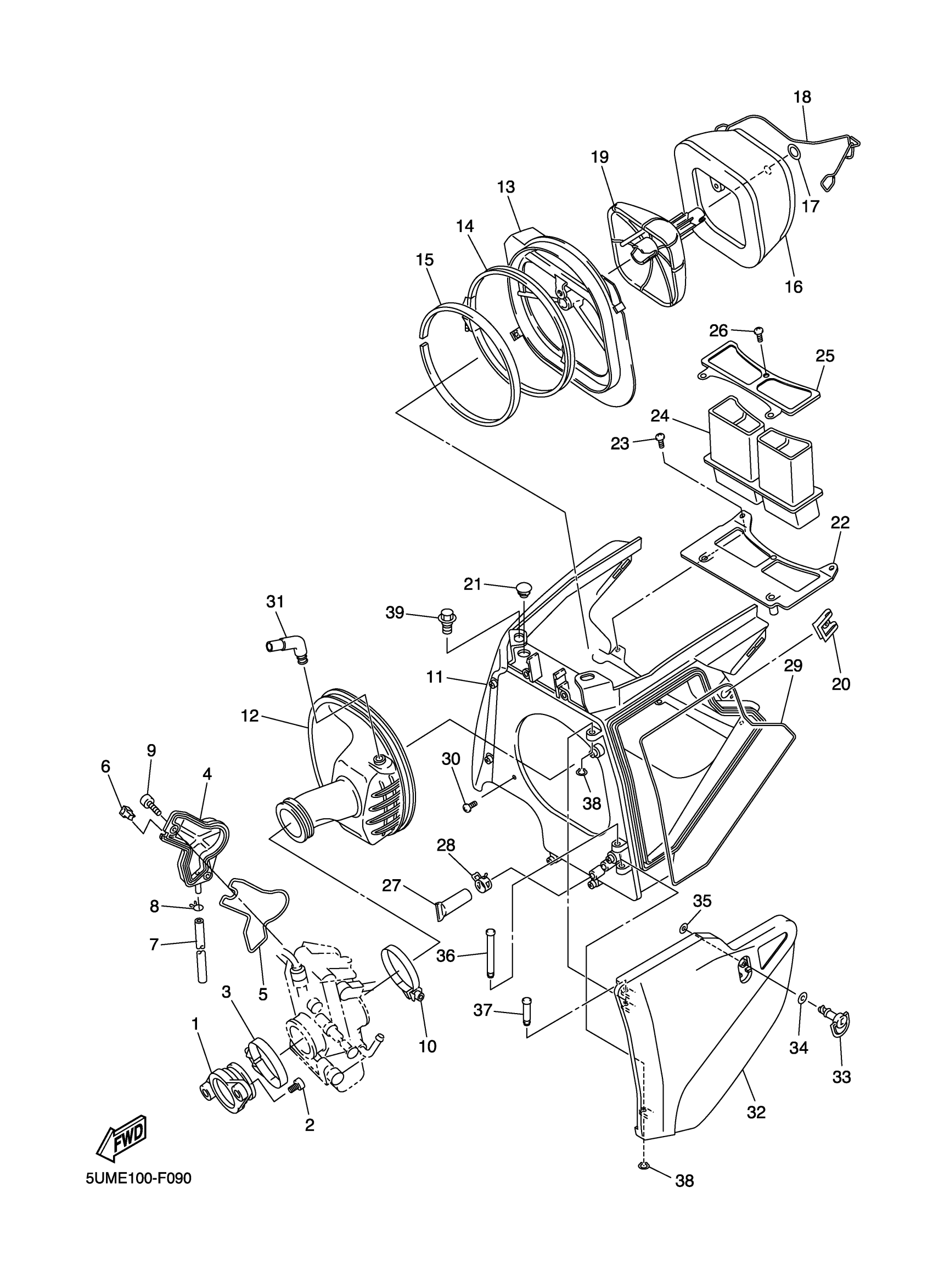

Yamaha WR250FD (WR250F) 1HC9 2013 INTAKE Diagram
#
Description
Price
11
AIR CLEANER CASE ASSY
5UM-14401-E0-00
Unavailable
16
ELEMENT, AIR CLEANER
5UM-14451-E1-00
Unavailable
17
WASHER
5TJ-14475-00-00
Unavailable
18
BINDER 1
5UM-1441G-E0-00
Unavailable
19
GUIDE
5TJ-14458-00-00
Unavailable
20
PLATE, SPRING
4XV-2177L-01-00
Unavailable
21
PLUG 288833190000
90338-07043-00
Unavailable
22
DUCT
5UM-14437-E0-00
Unavailable
23
SCREW, PAN HEAD TAPPING (AK5)
97780-50116-00
Unavailable
24
DUCT
5UM-1443A-E0-00
Unavailable
25
COVER 1
5UM-14417-E0-00
Unavailable
26
SCREW, PAN HEAD TAPPING (AK5)
97780-50116-00
Unavailable
27
PIPE, DRAIN
5BF-1443E-00-00
Unavailable
28
CLIP(3TB)
90467-17128-00
Unavailable
29
SEAL
51Y-14462-00-00
Unavailable
30
SCREW, PAN HEAD TAPPING (AK5)
97780-50116-00
Unavailable
31
PIPE
5TJ-14419-00-00
Unavailable
32
COVER, CLEANER CASE 1
5UM-1441A-E0-00
Unavailable
33
HEAD
3FV-28386-00-00
Unavailable
34
WASHER, SPECIAL 1
2TK-21757-00-00
Unavailable
35
WASHER, SPECIAL 1
5TJ-21757-00-00
Unavailable
36
PIN
90249-05005-00
Unavailable
37
PIN
90249-05004-00
Unavailable
38
CIRCLIP (EU0)
99080-04600-00
Unavailable
39
BOLT
90109-06245-00
Unavailable
