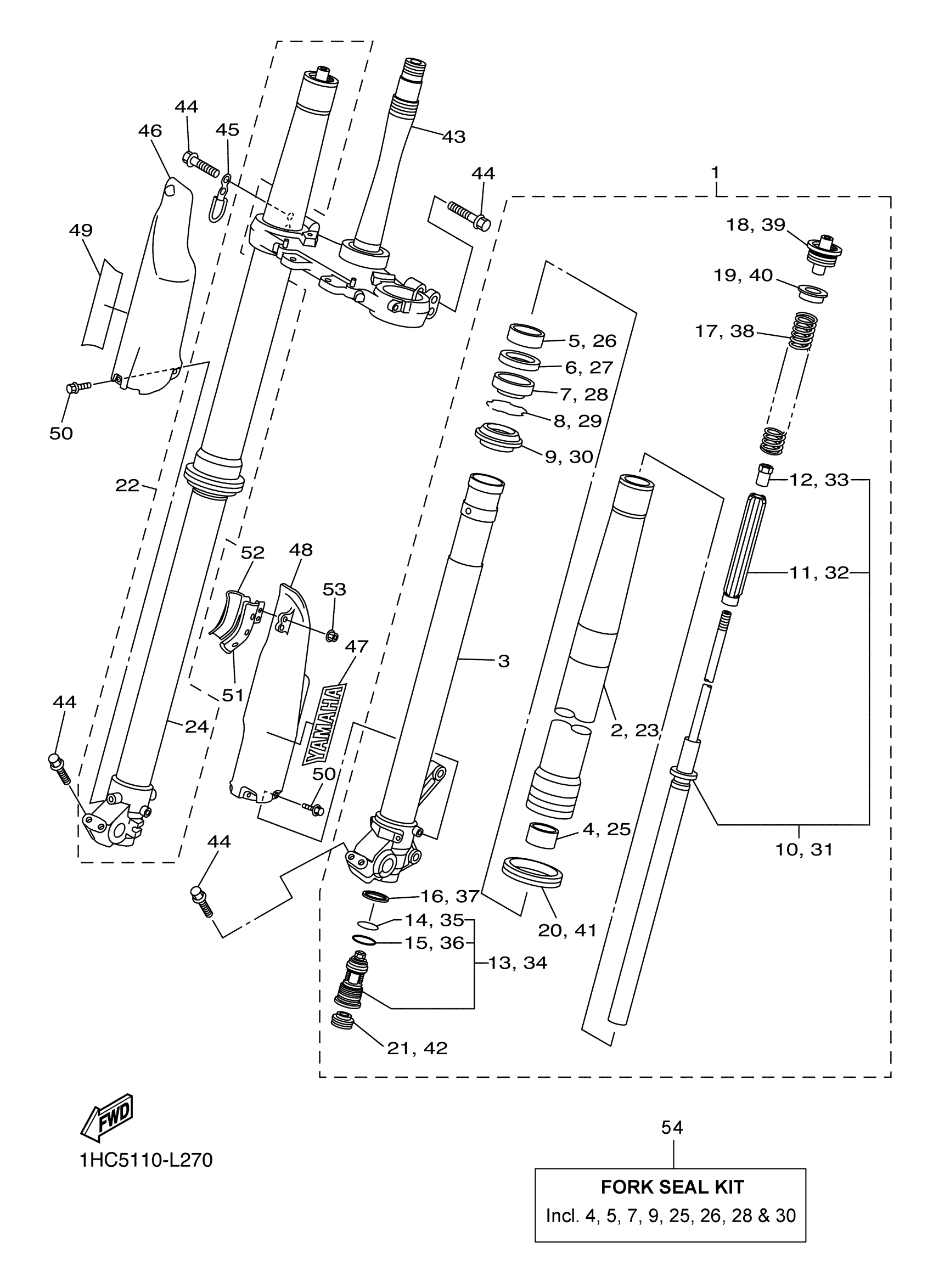

Yamaha WR250FD (WR250F) 1HC9 2013 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (L.H)

5UM-23102-E2-00

Unavailable

2

TUBE, OUTER (RIGHT)

5TJ-23136-C0-00

Unavailable

3

INNER TUBE COMP.2

5TJ-23120-C1-00

Unavailable

4

PISTON, FRONT FORK

5XE-23171-L0-00

$27.99

5

METAL, SLIDE 1

5XE-23125-L0-00

$25.99

6

WASHER, OIL SEAL

5XE-23146-L0-00

Unavailable

7

OIL SEAL

1C3-23145-L0-00

$32.99

8

RING, SNAP

5XE-23153-L0-00

$7.99

9

SEAL, DUST

5XE-23144-L0-00

$22.99

10

CYLINDER COMP., FRONT FORK

5UM-23170-E0-00

$417.99

11

SEAT, SPRING UPPER

5XE-23142-L0-00

$28.99

12

NUT, SPECIAL

5XE-23393-L0-00

Unavailable

13

VALVE COMP.

5TJ-2316A-E0-00

Unavailable

14

O-RING

5NY-23188-L0-00

$5.49

15

O-RING

5NY-23147-L0-00

$11.99

16

GASKET

4SS-23158-L0-00

Unavailable

17

SPRING, FRONT FORK

5TJ-23141-40-00

Unavailable

18

BOLT, CAP

5XE-23111-L0-00

Unavailable

19

GUIDE, SPRING

5XE-23117-L0-00

Unavailable

20

PROTECTER GUIDE COMP., 1

1C3-2314F-M0-00

Unavailable

21

PLUG

3JD-2312G-L0-00

Unavailable

22

FRONT FORK ASSY (R.H)

5UM-23103-E2-00

Unavailable

23

TUBE, OUTER (RIGHT)

5TJ-23136-C0-00

Unavailable

24

INNER TUBE COMP.1

5TJ-23110-C1-00

Unavailable

25

PISTON, FRONT FORK

5XE-23171-L0-00

$27.99

26

METAL, SLIDE 1

5XE-23125-L0-00

$25.99

27

WASHER, OIL SEAL

5XE-23146-L0-00

Unavailable

28

OIL SEAL

1C3-23145-L0-00

$32.99

29

RING, SNAP

5XE-23153-L0-00

$7.99

30

SEAL, DUST

5XE-23144-L0-00

$22.99

31

CYLINDER COMP., FRONT FORK

5UM-23170-E0-00

$417.99

32

SEAT, SPRING UPPER

5XE-23142-L0-00

$28.99

33

NUT, SPECIAL

5XE-23393-L0-00

Unavailable

34

VALVE COMP.

5TJ-2316A-E0-00

Unavailable

35

O-RING

5NY-23188-L0-00

$5.49

36

O-RING

5NY-23147-L0-00

$11.99

37

GASKET

4SS-23158-L0-00

Unavailable

38

SPRING, FRONT FORK

5TJ-23141-40-00

Unavailable

39

BOLT, CAP

5XE-23111-L0-00

Unavailable

40

GUIDE, SPRING

5XE-23117-L0-00

Unavailable

41

PROTECTER GUIDE COMP., 1

1C3-2314F-M0-00

Unavailable

42

PLUG

3JD-2312G-L0-00

Unavailable

43

UNDER BRACKET COMP.

5UM-23340-L1-00

Unavailable

44

BOLT, FLANGE

90105-08134-00

Unavailable

45

GUIDE

5TJ-23525-C0-00

Unavailable

46

PROTECTOR 2

5TJ-2315J-C0-00

Unavailable

47

EMBLEM, YAMAHA

4XL-2153A-11-00

Unavailable

48

PROTECTOR 1

1C3-2315H-10-00

Unavailable

49

EMBLEM, YAMAHA

4XL-2153A-11-00

Unavailable

50

BOLT 2

3SP-23356-L0-00

Unavailable

51

CLAMP

5XC-23466-L0-00

Unavailable

52

CLAMP

5XC-23467-L0-00

Unavailable

53

NUT, FLANGE

95702-06500-00

Unavailable

54

FORK SEAL KIT (TWO FORKS)

1C3-W003B-00-00

Unavailable
