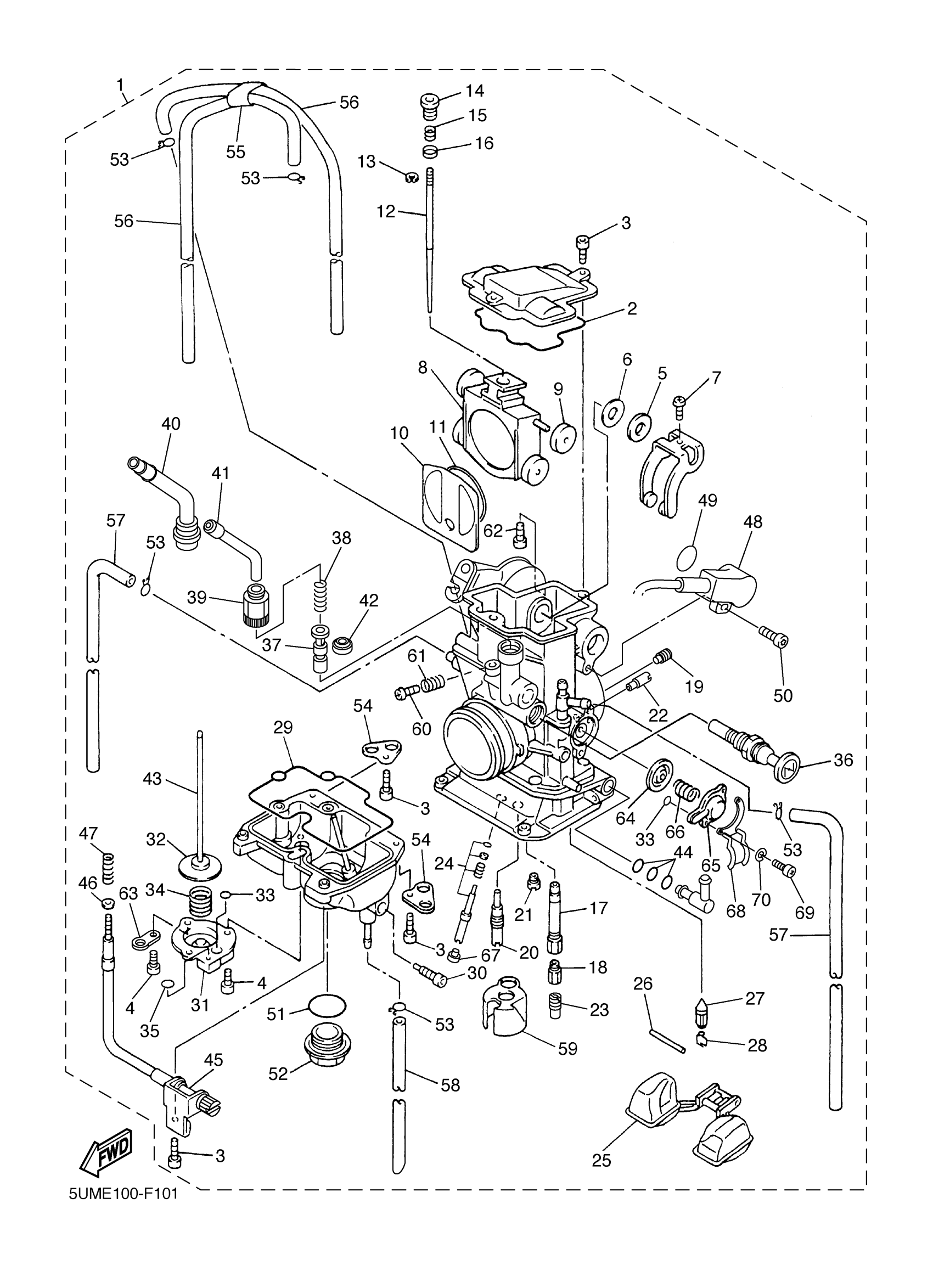

Yamaha WR250FD (WR250F) 1HC9 2013 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSY 1

5UM-14101-E3-00

Unavailable

2

GASKET

5JG-14959-00-00

$27.99

3

BOLT, SOCKET

91317-04012-00

$8.49

4

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

5

WASHER, PLATE

90202-08045-00

$7.49

6

WASHER

5JG-14951-00-00

$4.84

7

SCREW, ADJUST

5JG-14522-09-00

$5.49

8

VALVE, VACUUM CONTROL

2S2-14388-00-00

Unavailable

9

ROLLER

3TJ-14267-40-00

$17.49

10

VALVE, NEEDLE

5JG-14546-01-00

$276.99

11

SEAL

4FN-14997-00-00

$25.99

12

NEEDLE

5UM-14916-RU-00

Unavailable

13

CLIP

3TJ-14159-40-00

$8.99

14

SCREW, ADJUST

5JG-14521-00-00

Unavailable

15

SPRING

5JG-14275-00-00

$6.99

16

COLLAR

5JG-14264-00-00

Unavailable

17

JET, NEEDLE

5TJ-14947-00-00

Unavailable

18

JET, MAIN (#170)

4MX-14943-41-00

Unavailable

19

JET

5UM-1494F-30-00

Unavailable

20

JET, PILOT (#42)

4MX-14948-04-00

Unavailable

21

JET

3TJ-1494F-14-00

Unavailable

22

JET, MAIN (#70)

5TA-14943-15-00

Unavailable

23

JET (#70)

4JT-1494F-15-00

Unavailable

24

PILOT SCREW SET

5NL-14105-00-00

Unavailable

25

FLOAT

4SR-14985-00-00

Unavailable

26

. PIN, FLOAT ARM

663-14548-00-00

Unavailable

27

VALVE, NEEDLE

4MX-14392-00-00

Unavailable

28

CLIP

633-14159-00-00

Unavailable

29

GASKET, FLOAT CHAMBER

5JG-14984-00-00

Unavailable

30

PLUG, DRAIN

3TJ-14191-40-00

Unavailable

31

COVER 1

3TJ-14293-40-00

Unavailable

32

DIAPHRAGM ASSY

5JG-14940-76-00

Unavailable

33

GASKET

3TJ-14536-40-00

Unavailable

34

SPRING, DIAPHRAGM

3TJ-14933-40-00

Unavailable

35

. O-RING

6H4-14561-00-00

Unavailable

36

PLUNGER, STARTER

5XC-14171-00-00

Unavailable

37

PLUNGER, STARTER

5TA-14371-00-00

Unavailable

38

SPRING, PLUNGER

5TA-14335-00-00

Unavailable

39

SCREW

5TA-14991-00-00

Unavailable

40

CAP, PLUNGER

2S2-14374-00-00

Unavailable

41

GUIDE, CABLE

5TA-14155-00-00

Unavailable

42

SEAL

5TA-14997-00-00

Unavailable

43

ROD, STARTER

5JG-14379-00-00

Unavailable

44

O-RING

3TJ-14564-40-00

Unavailable

45

SCREW, THROTTLE

5XC-14922-00-00

Unavailable

46

WASHER, PLATE(3TJ)

90201-08410-00

Unavailable

47

SPRING, THROTTLE STOP

5TA-14934-00-00

Unavailable

48

THROTTLE SENSOR ASSY

5XC-85885-00-00

Unavailable

49

O-RING

33D-14562-00-00

Unavailable

50

SCREW

1DX-14216-00-00

Unavailable

51

O-RING

4MX-14561-00-00

Unavailable

52

PLUG, SCREW

4MX-14115-00-00

Unavailable

53

CLIP

3TJ-14137-40-00

Unavailable

54

PLATE

5BE-14146-00-00

Unavailable

55

HOLDER

5TA-14261-00-00

Unavailable

56

PIPE

5UL-14196-00-00

Unavailable

57

PIPE

5TA-14197-00-00

Unavailable

58

HOSE

5TJ-14987-00-00

Unavailable

59

PLATE

5JG-14346-00-00

Unavailable

60

SCREW

5JG-14565-00-00

Unavailable

61

SPRING, ADJUST SCREW

5JG-14531-00-00

Unavailable

62

SCREW

5GS-14591-09-00

Unavailable

63

. PLATE

5PA-14146-00-00

Unavailable

64

DIAPHRAGM ASSY

5GS-14940-00-00

Unavailable

65

COVER, DIAPHRAGM

5GS-14958-00-00

Unavailable

66

SPRING, DIAPHRAGM

5GS-14933-00-00

Unavailable

67

CAP

5TJ-14118-00-00

Unavailable

68

PLATE

5TJ-14243-00-00

Unavailable

69

SCREW, PAN HEAD (E56)

98580-04010-00

Unavailable

70

YBS67-4 WASHER, SPRING

92990-04100-00

Unavailable
