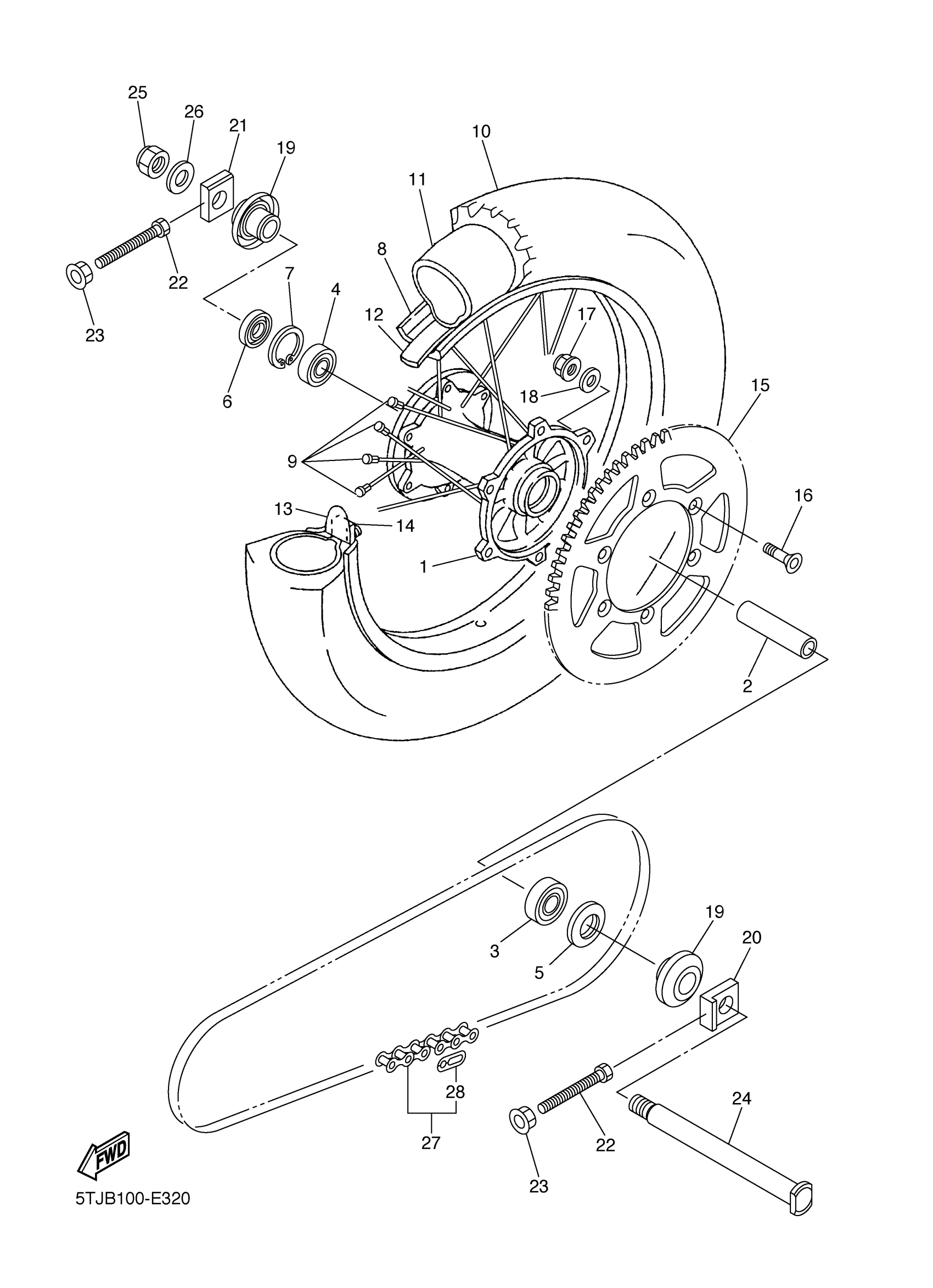

Yamaha WR250FB (WR250F) 1HC5 2012 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

5ET-25311-00-00

$311.99

2

SPACER, BEARING

5ET-25317-00-00

$49.99

3

BEARING

93306-27212-00

$75.99

4

BEARING(85G)

93306-07202-00

$38.99

5

OIL SEAL

93106-30001-00

$12.49

6

OIL SEAL

93106-30045-00

$10.49

7

CIRCLIP

99009-45500-00

$2.17

8

RIM (1.85-18)

94418-18006-00

Unavailable

9

SPOKE SET, REAR

5GS-25304-00-00

$178.99

10

TIRE (100/100-18 59M D756)

94110-18009-00

Unavailable

11

TUBE (4V8)

94211-18176-00

$40.99

12

BAND, RIM (2J4)

94340-18086-00

$17.99

13

SPACER, BEAD

4XM-25394-00-00

$46.99

14

DAMPER

4XM-25364-00-00

$7.99

15

SPROCKET, DRIVEN (48T)

5GS-25448-50-00

$47.99

15

SPROCKET, DRIVEN (50T)

5TJ-25450-80-00

Unavailable

15

SPROCKET, DRIVEN (50T)

5TJ-25450-80-00

Unavailable

15

SPROCKET, DRIVEN (52T)

5TJ-25452-80-00

Unavailable

16

BOLT

90109-08078-00

Unavailable

17

NUT, SELF-LOCKING

90185-08008-00

Unavailable

18

WASHER, PLATE

90201-08048-00

Unavailable

19

COLLAR ASSY

5TJ-2530S-81-00

Unavailable

20

PULLER, CHAIN 1

1C3-25388-H0-00

Unavailable

21

PULLER, CHAIN 2

1C3-25389-H0-00

Unavailable

22

BOLT

90101-08006-00

Unavailable

23

NUT

90179-08019-00

Unavailable

24

AXLE, WHEEL

1C3-25381-90-00

Unavailable

25

NUT, SELF-LOCKING

90185-20002-00

Unavailable

26

WASHER, PLATE

90201-20020-00

Unavailable

27

CHAIN (D.I.D.520VM-114LL)

94581-76114-00

Unavailable

28

JOINT, CHAIN

94681-76021-00

Unavailable
