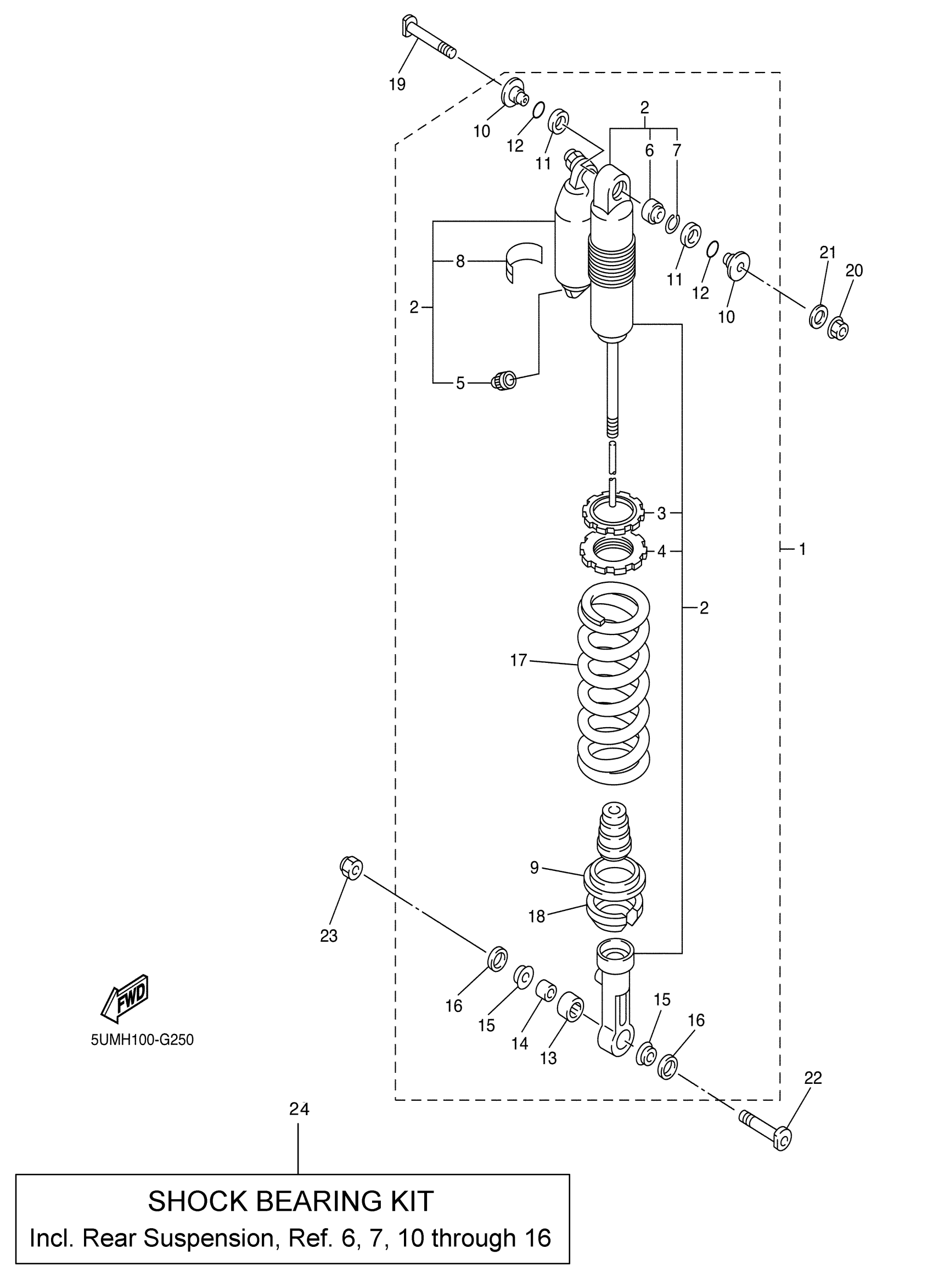

Yamaha WR250FB (WR250F) 1HC5 2012 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY, REAR

5UM-22210-E1-00

Unavailable

2

DAMPER SUB ASSY

5UM-22201-E0-00

$844.99

3

GUIDE, SPRING 3

3SP-22234-00-00

$43.99

4

SEAT, SPRING UPPER

3SP-22213-00-00

$46.99

5

CAP, AIR VALVE

509-23184-L0-00

$6.99

6

BUSH, SHOCK ABSORBER LOWER

4JX-22226-00-00

$51.99

7

CIRCLIP

5DH-23183-00-00

$5.49

8

LABEL, WARNING

4AA-22259-80-00

$13.49

9

GUIDE, SPRING 2

5MV-22224-00-00

$24.99

10

COLLAR, DISTANCE

1C3-22253-50-00

$45.99

11

SEAL, DUST

3JE-22475-00-00

$13.49

12

SEAL, RING

4EW-22474-00-00

$6.99

13

BEARING

5UN-22176-00-00

$32.99

14

BUSH

5MV-22184-00-00

$25.99

15

COLLAR, DISTANCE

5MV-22253-00-00

$17.49

16

SEAL, DUST

5NY-22475-00-00

Unavailable

17

SPRING

5UN-22212-50-00

Unavailable

18

GUIDE, SPRING 1

5XE-22214-00-00

Unavailable

19

BOLT 2

5XE-22242-01-00

Unavailable

20

NUT, S/L FLANGE

95602-10200-00

Unavailable

21

958-69527-00 WASHER, PLAIN

92990-10200-00

Unavailable

22

BOLT 1

5NY-22241-00-00

Unavailable

23

NUT, SELF-LOCKING

90185-10012-00

Unavailable
