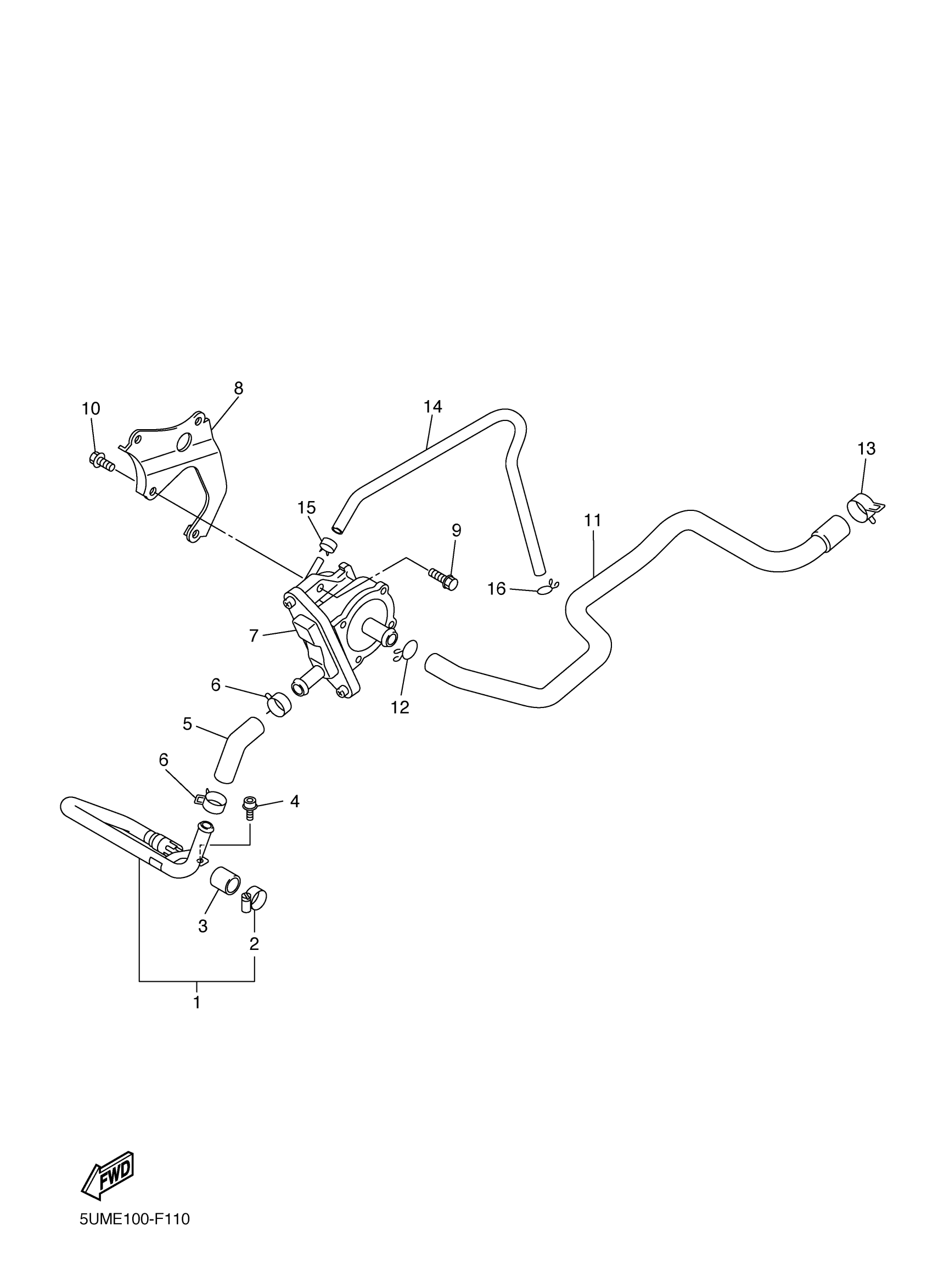

Yamaha WR250FB (WR250F) 1HC5 2012 AIR INDUCTION SYSTEM Diagram

#

Description
Price

1

PIPE 1

5UM-14871-10-00

Unavailable

2

CLAMP, HOSE

90450-20078-00

Unavailable

3

GASKET, MUFFLER

4KM-14714-01-00

$25.99

4

BOLT(1KT)

90109-060E9-00

$10.49

5

HOSE, BEND 1

5UM-14881-00-00

Unavailable

6

CLIP

90467-16181-00

$7.49

7

AIR INDUCTION SYSTEM ASSY

5UM-14803-00-00

Unavailable

8

STAY

5UM-14834-E0-00

Unavailable

9

BOLT, FLANGE

90105-06107-00

$8.49

10

BOLT, FLANGE

90105-06105-00

$7.49

11

HOSE, BEND 2

5UM-14882-00-00

Unavailable

12

CLIP

90467-140A4-00

$9.49

13

CLIP(3TB)

90467-17128-00

$8.49

14

HOSE (L320)

90445-086J3-00

$9.49

15

CLIP

90467-07138-00

Unavailable

16

CLIP

90467-090A2-00

Unavailable
