Description

Price

1

FENDER, FRONT

1C3-21511-51-00

$32.99

2

COLLAR

90387-06090-00

$8.49

3

BOLT, WITH WASHER

90119-06147-00

$1.13

4

LABEL, CAUTION

3FB-2415E-02-00

$4.84

5

REAR FENDER COMP.

5UM-21610-E0-00

$37.99

6

NUT, REAR FENDER

5XE-21635-10-00

$13.49

7

INSULATOR, SIDE COVER 2

5UM-2174T-E0-00

Unavailable

8

BOLT, FLANGE

90105-06127-00

$8.49

9

BOLT, FLANGE

90105-06100-00

$7.49

10

WASHER, PLATE

90201-06032-00

$8.49

11

BOLT, FLANGE

90105-06106-00

$3.76

12

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

13

COLLAR

90387-06009-00

$10.49

14

GUARD, FLAP

5TA-21642-00-00

$39.99

15

WASHER, PLATE

90201-06084-00

Unavailable

16

SCREW, TAPPING

97702-60016-00

Unavailable

17

LABEL, CAUTION

5PA-2118K-01-00

Unavailable

18

EMBLEM, YAMAHA

5UM-2153E-01-00

Unavailable

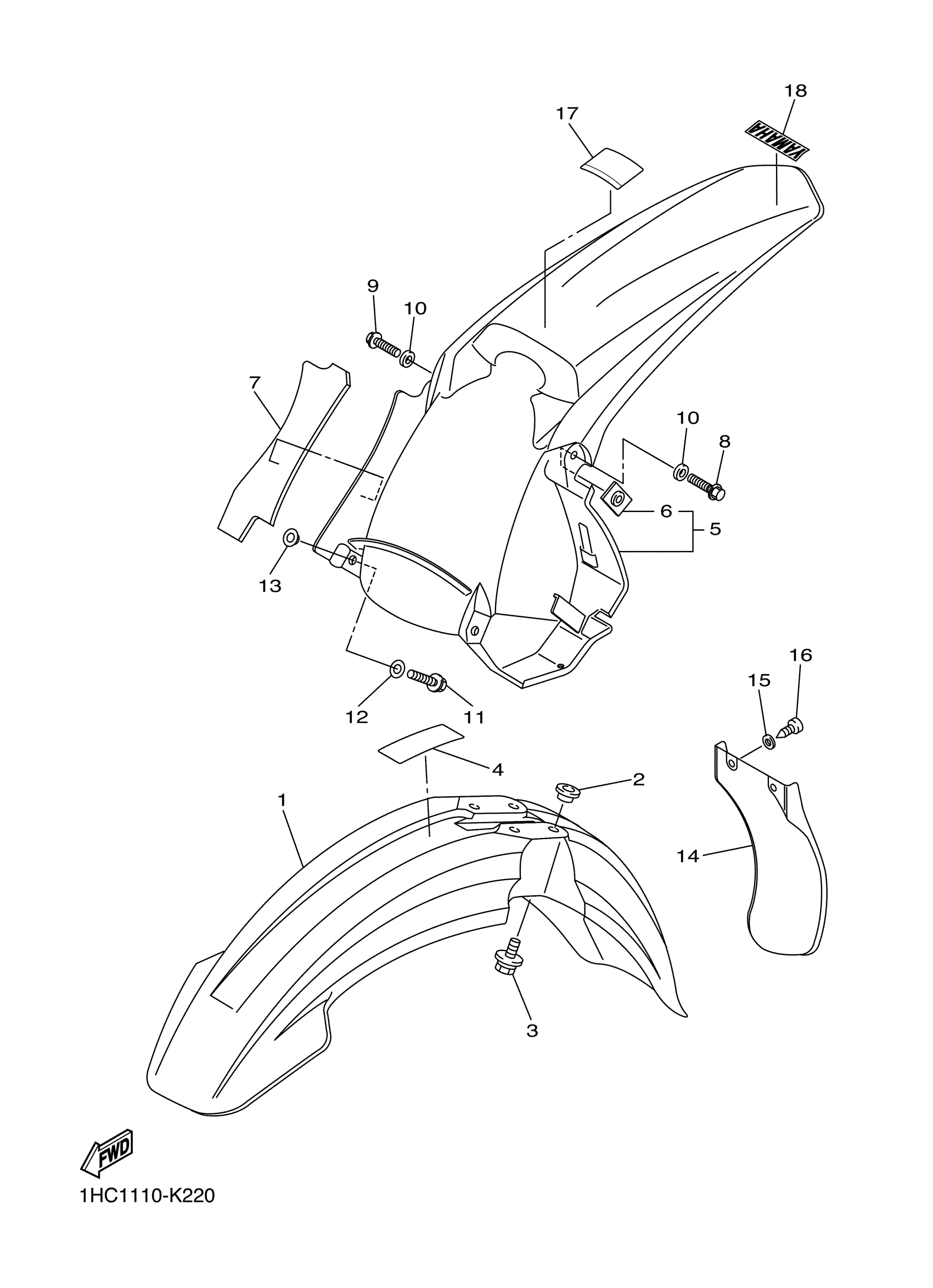

Yamaha WR250FA (WR250F) 1HC1 2011 FENDER Diagram

FENDER, FRONT

COLLAR

BOLT, WITH WASHER

LABEL, CAUTION

REAR FENDER COMP.

NUT, REAR FENDER

INSULATOR, SIDE COVER 2

BOLT, FLANGE

BOLT, FLANGE

WASHER, PLATE

BOLT, FLANGE

WASHER, PLATE (583 REAR FENDER

COLLAR

GUARD, FLAP

WASHER, PLATE

SCREW, TAPPING

LABEL, CAUTION

EMBLEM, YAMAHA
