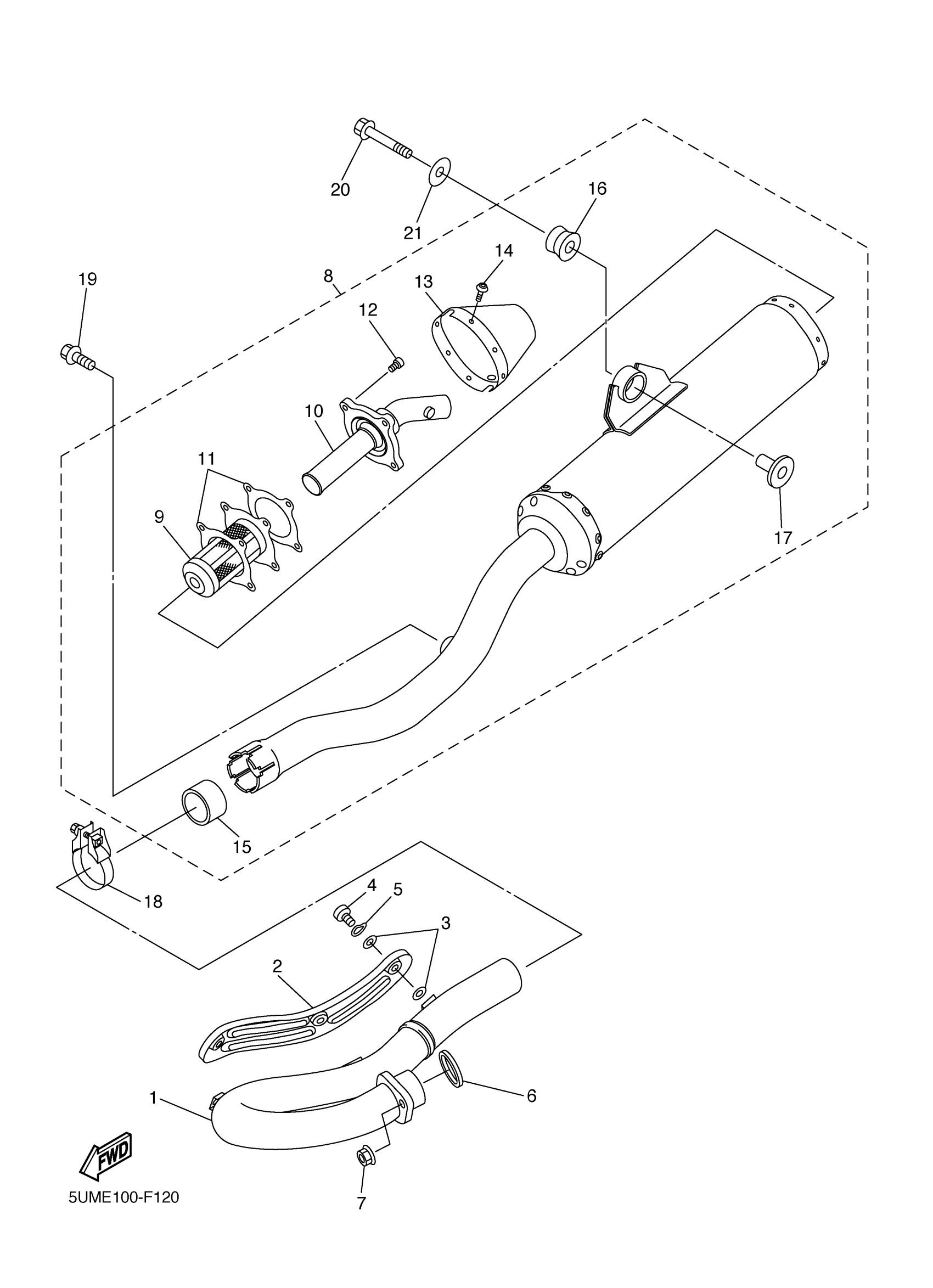

Yamaha WR250FA (WR250F) 1HC1 2011 EXHAUST Diagram

PIPE, EXHAUST 1

5UM-14611-10-00

Unavailable

PROTECTOR, EXHAUST PIPE

5XC-14628-00-00

$92.99

WASHER, PROTECTOR

4BD-14766-00-00

$5.49

SCREW, BIND(2TV)

98980-06008-00

$3.19

WASHER, WAVE(3RW)

90206-06090-00

$8.49

GASKET, EXHAUST PIPE

5NL-14613-00-00

$14.49

NUT,FLANGE(J10)

95702-08500-00

$1.43

MUFFLER ASSY 1

5UM-14710-E0-00

Unavailable

SPARK ARRESTER ASSY

5TJ-14780-00-00

$96.99

PIPE, TAIL

5TJ-14784-00-00

Unavailable

GASKET, EXHAUST PIPE

5TJ-14623-00-00

$13.49

BOLT, HEXAGON SOCKET HEAD

90110-05041-00

$3.76

CAP

5TJ-14799-00-00

$121.99

BOLT, BUTTON HEAD

92012-05008-00

$2.82

GASKET, MUFFLER

5PH-14714-00-00

$43.99

DAMPER, MUFFLER

5BE-14747-00-00

Unavailable

COLLAR

90387-08081-00

Unavailable

BAND, SILENCER

5BE-14788-00-00

Unavailable

BOLT, FLANGE

90105-08224-00

Unavailable

BOLT, FLANGE

90105-08137-00

Unavailable

WASHER, PLATE

90201-08061-00

Unavailable
