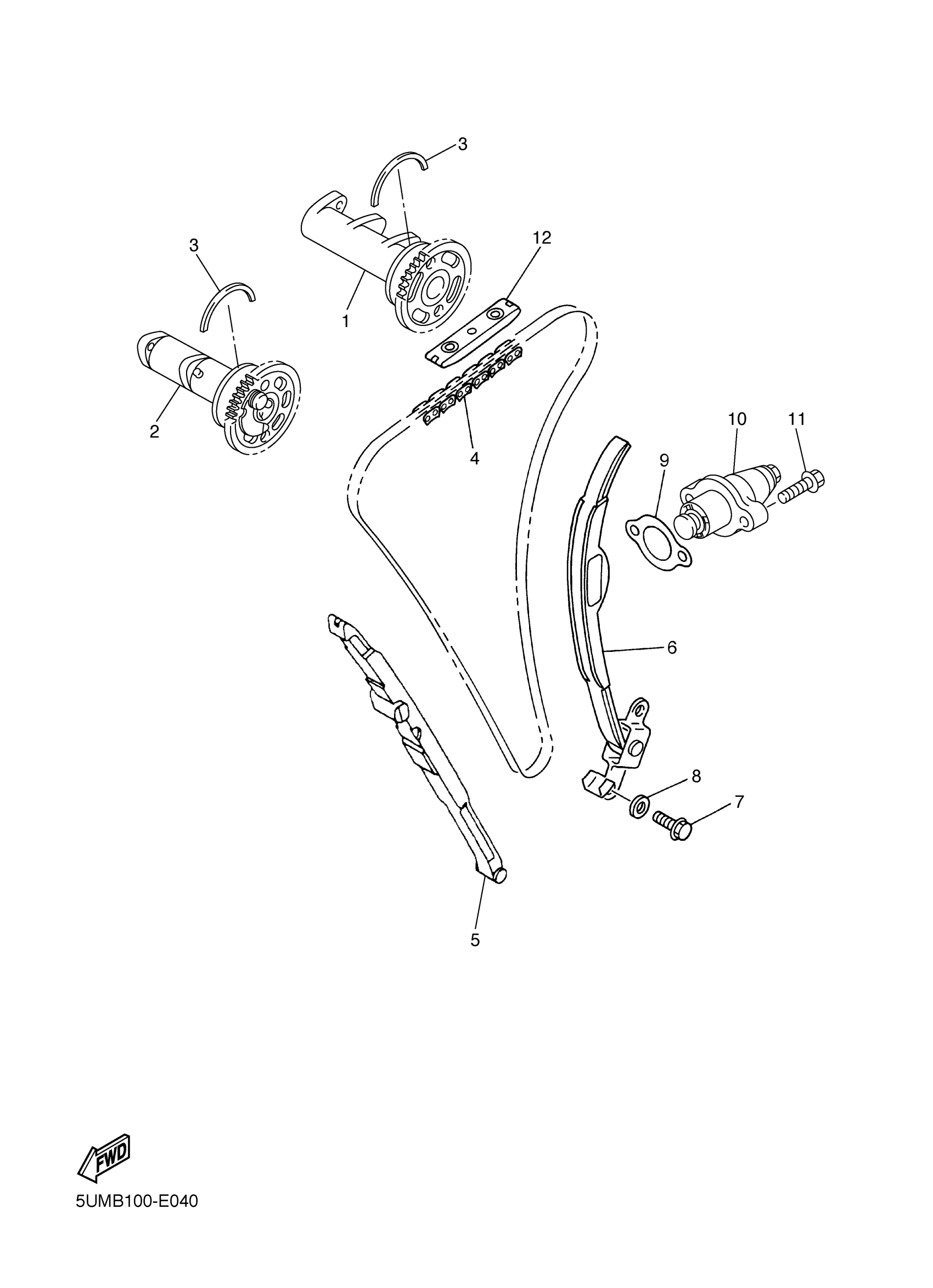

Yamaha WR250FA (WR250F) 1HC1 2011 CAMSHAFT CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

5UM-12170-10-00

Unavailable

2

CAMSHAFT ASSY 2

5UM-12180-20-00

Unavailable

3

CIRCLIP

93440-41178-00

$3.98

4

CHAIN

94591-53114-00

$33.99

5

DAMPER, CHAIN 1

5NL-12251-11-00

$36.99

6

DAMPER, CHAIN 2

5NL-12252-01-00

$83.99

7

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

8

WASHER, PLAIN (646)

92990-06600-00

$2.80

9

GASKET, TENSIONER CASE

4FM-12213-00-00

$8.99

10

TENSIONER ASSY CAM CHAIN

5TA-12210-21-00

$90.99

11

BOLT, FLANGE

95022-06025-00

$3.62

12

GUIDE, STOPPER 2

5BE-12241-01-00

$29.99
