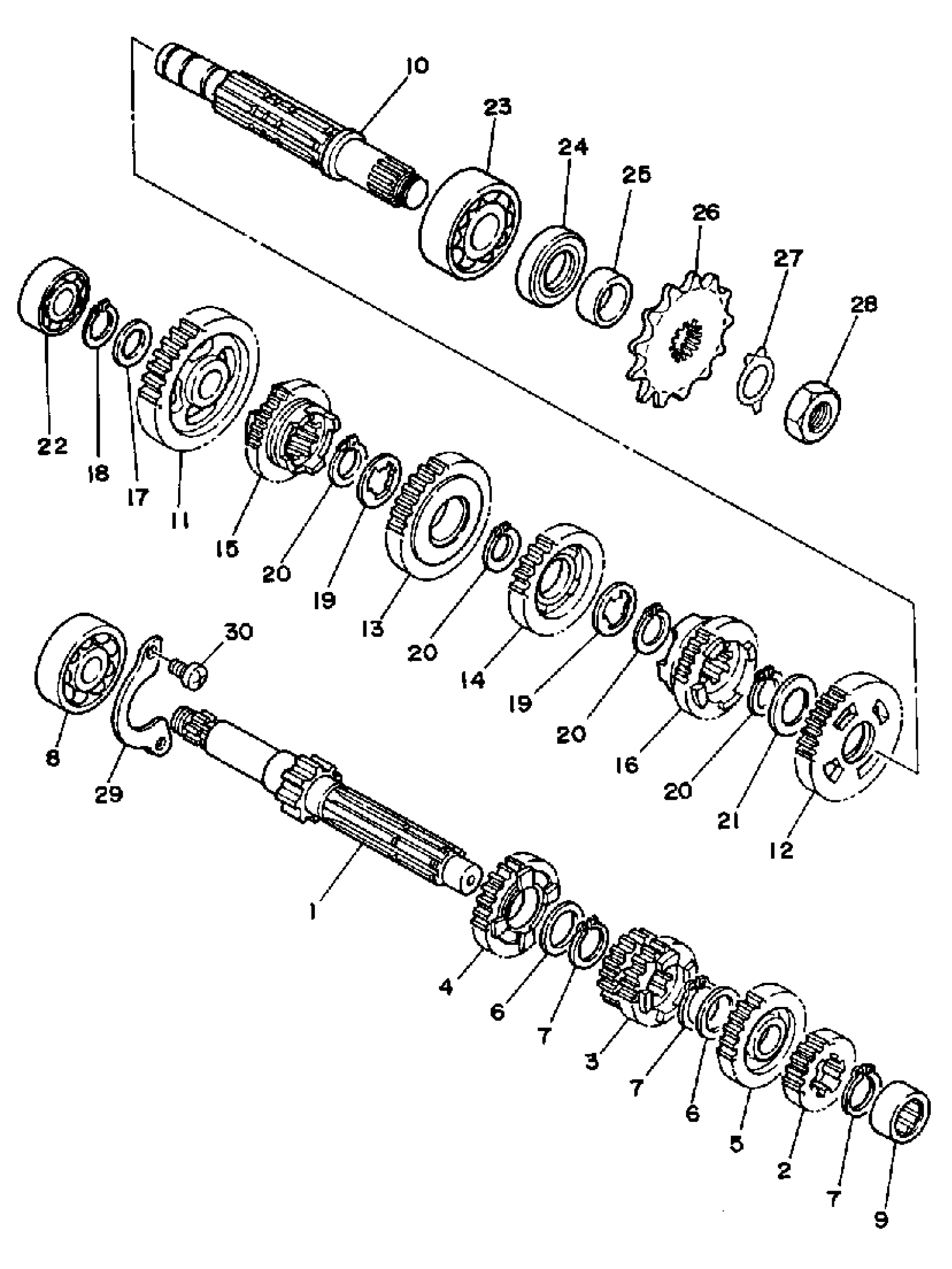

Yamaha WR200RD (WR200R) 1992 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

4BF-17411-00-00

Unavailable

2

GEAR, 2ND PINION

3BN-17121-00-00

Unavailable

3

GEAR, 3RD PINION

3BN-17131-01-00

Unavailable

4

GEAR, 5TH PINION

3BN-17151-01-00

Unavailable

5

GEAR, 6TH PINION

3BN-17161-02-00

Unavailable

6

WASHER PLATE 132172160000

90201-20266-00

$9.49

7

CIRCLIP (525)

93410-20038-00

$3.76

8

BRG,R-B 62042RS 47MM 110G KY

93306-20417-00

$40.99

9

BEARING, CYLINDRICAL(2TV)

93311-31567-00

$60.99

10

AXLE, DRIVE

3BN-17421-00-00

Unavailable

11

GEAR, 1ST WHEEL

4BF-17211-00-00

Unavailable

12

GEAR, 2ND WHEEL

3BN-17221-00-00

Unavailable

13

GEAR, 3RD WHEEL

3BN-17231-01-00

Unavailable

14

GEAR, 4TH WHEEL

3XP-17241-00-00

Unavailable

15

GEAR, 5TH WHEEL

3BN-17251-02-00

Unavailable

16

GEAR, 6TH WHEEL

3XP-17261-00-00

Unavailable

17

WASHER, PLATE (4L0)

90201-154E8-00

Unavailable

18

CIRCLIP(1AR)

99009-15400-00

Unavailable

19

WASHER (537)

90209-18135-00

Unavailable

20

CIRCLIP (537)

93410-22039-00

Unavailable

21

WASHER, PLATE (537)

90201-22555-00

Unavailable

22

BRG, R-B (7H4)

93306-20211-00

Unavailable

23

BRG,R-B 6304C3 52MM 144G KY

93306-30421-00

Unavailable

24

OIL SEAL (26X38X5-181)

93102-26042-00

Unavailable

25

COLLAR

90387-205W8-00

Unavailable

26

SPROCKET,DRIVE 13T(2HG1746130)

9383A-13031-00

Unavailable

27

WASHER, LOCK(3XP)

90215-20283-00

Unavailable

28

NUT(3XP)

90179-16613-00

Unavailable

29

PLATE, COVER

4BF-17471-00-00

Unavailable

30

SCREW, PAN HEAD(62J)

97885-06012-00

Unavailable
