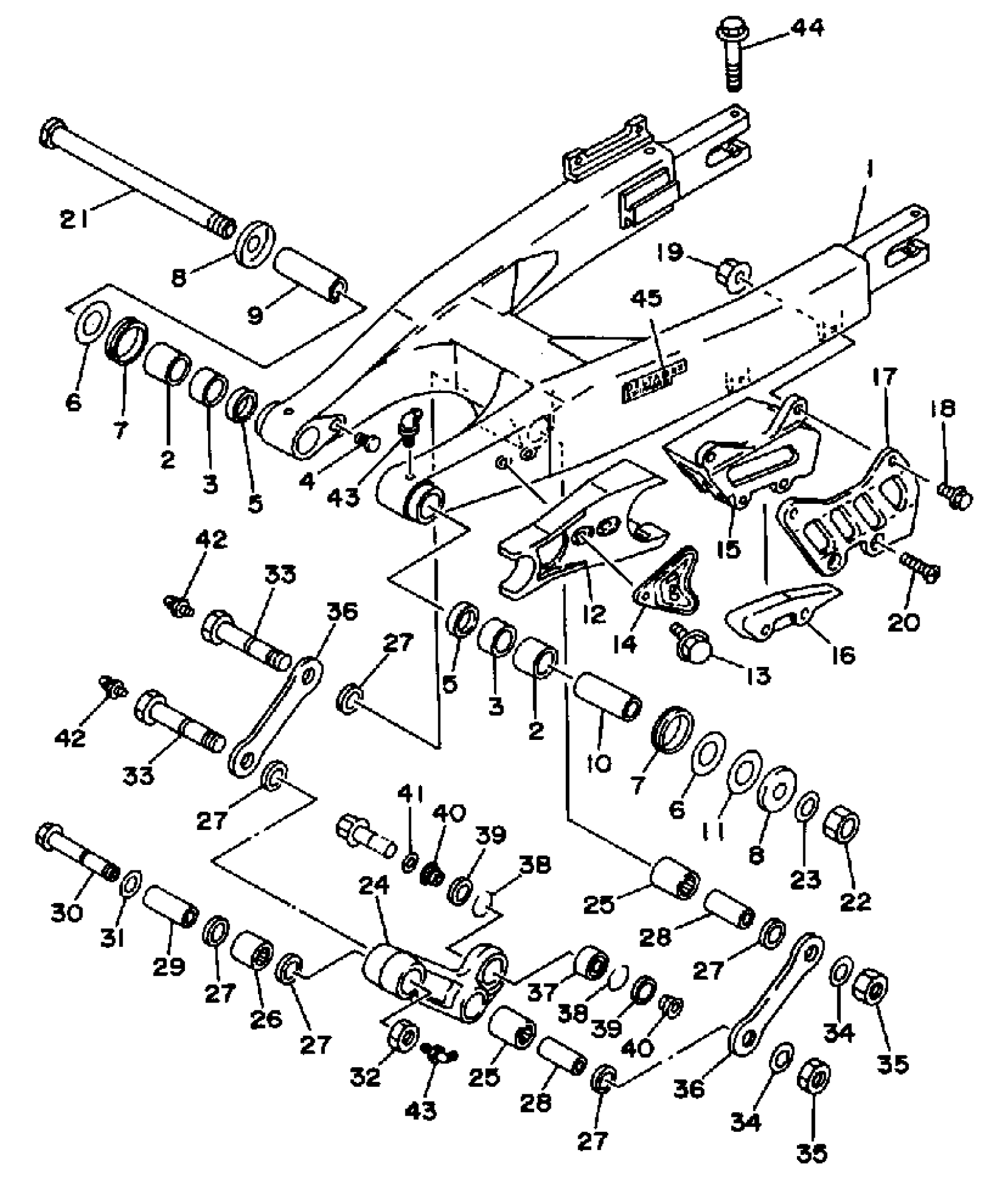

Yamaha WR200RD (WR200R) 1992 SWING ARM Diagram

#

Description
Price

1

REAR ARM COMP.

4BF-22110-00-T9

Unavailable

2

BEARING, CYLINDRICAL (23X)

93317-32231-00

$44.99

3

BUSH, SOLID (23X)

90380-22111-00

$19.99

4

PLUG (31M)

90338-10150-00

$8.49

5

OIL SEAL (23X)

93106-22019-00

$11.49

6

WASHER, PLATE(30X)

90201-254H8-00

$9.49

7

OIL SEAL (35X41.5X8-483)

93108-35004-00

$15.99

8

COVER

30X-2219X-00-00

$16.49

9

BUSH 1

2XJ-22123-00-00

Unavailable

10

COLLAR

90387-166X3-00

Unavailable

11

WASHER, PLATE (5Y1)

90201-251F6-00

$8.49

12

SEAL, GUARD

3XP-22151-01-00

$96.99

13

BOLT, FLANGE

95817-06014-00

Unavailable

14

WASHER, PLATE

3JD-22156-00-00

Unavailable

15

SUPPORT, CHAIN

3XP-22199-03-00

Unavailable

16

PROTECTOR, CHAIN

3JD-22147-00-00

Unavailable

17

COVER, THRUST 1

3JD-22128-00-00

Unavailable

18

BOLT, FLANGE

95822-06025-00

Unavailable

19

NUT, FLANGE(7NB)

95780-06500-00

Unavailable

20

SCREW, FLAT HEAD(3XP)

98707-06050-00

Unavailable

21

SHAFT, PIVOT

1LX-22141-00-00

Unavailable

22

NUT, SELF-LOCKING

90185-16002-00

Unavailable

23

WASHER, PLATE(33Y)

90201-164H4-00

Unavailable

24

ARM, RELAY

3XP-2217A-00-00

Unavailable

25

BEARING, CYLINDRICAL(2HJ)

93315-22046-00

Unavailable

26

BEARING, CYLINDRICAL(2HJ)

93315-22046-00

Unavailable

27

OIL SEAL

93109-20076-00

Unavailable

28

COLLAR

90387-166X0-00

Unavailable

29

COLLAR

90387-166X1-00

Unavailable

30

BOLT, FLANGE(3HP)

95817-10016-00

Unavailable

31

WASHER, PLATE (17K)

90201-106F2-00

Unavailable

32

NUT, SPEC''L SHAPE

90179-10616-00

Unavailable

33

BOLT, UNION

90401-14147-00

Unavailable

34

WASHER, PLATE (5X6)

90201-160F6-00

Unavailable

35

NUT, SELF-LOCKING (1J7)

90185-14070-00

Unavailable

36

ROD, CONNECTING 1

3XP-2217F-00-00

Unavailable

37

BEARING(3XP)

93399-99935-00

Unavailable

38

CIRCLIP (23X)

93440-30113-00

Unavailable

39

SEAL, DUST

3XJ-22475-00-00

Unavailable

40

COLLAR(3XJ)

90387-103X9-00

Unavailable

41

WASHER PLATE (3L6)

90201-08759-00

Unavailable

42

NIPPLE, GREASE

93700-06M03-00

Unavailable

43

NIPPLE, GREASE

93700-06005-00

Unavailable

44

BOLT, FLANGE

95817-06045-00

Unavailable

45

EMBLEM, REAR ARM

3XJ-2218A-00-00

Unavailable
